Scoot linear

A modern direct/indirect lighting solution for modern offices. Available with Delta louvre in five colours.

Installation

Wire pendant. Height adjustment of the wire via friction lock in the luminaire. Ceiling suspension ordered separately, see accessories.

Connection

Fixed connection with 230 V, built-in LED driver. Supplied with cable. The type of cable is selected in the configurator.

Design

Luminaire body of extruded aluminium. Housing in 80 % recycled plastic lacquered in various colors. The opening at the top is covered by an active film that generates a broad beam and which works as a dust cover.

Louvre

Delta – micro-prism louvre shutters in acrylic (PMMA).

Light distribution

Direct/Indirect 40/60.

Dimming

CLO (Constant Light Output) and DALI/phase pulse control as standard.
Phase pulse control is available with Push Dim.
e-Sense Active – Passive infrared sensor (PIR) sensor with presence and daylight-responsive control via DALI.
Organic Response – Passive infrared sensor (PIR) sensor with presence and daylight-responsive control. All luminaires act as master/slave with IR communication.

Designed by

PetterssonRudberg

Miscellaneous

Luminaire with Tunable White (2700–6500 K) are equipped with DALI device Type 8 driver and is listed as 4000 K in the table.
CLO (Constant Light Output) entails that the luminaire provides the same amount of light for the duration of its specified burn time.
Ra (CRI) 90 on request.

Media

Sweep and Scoot

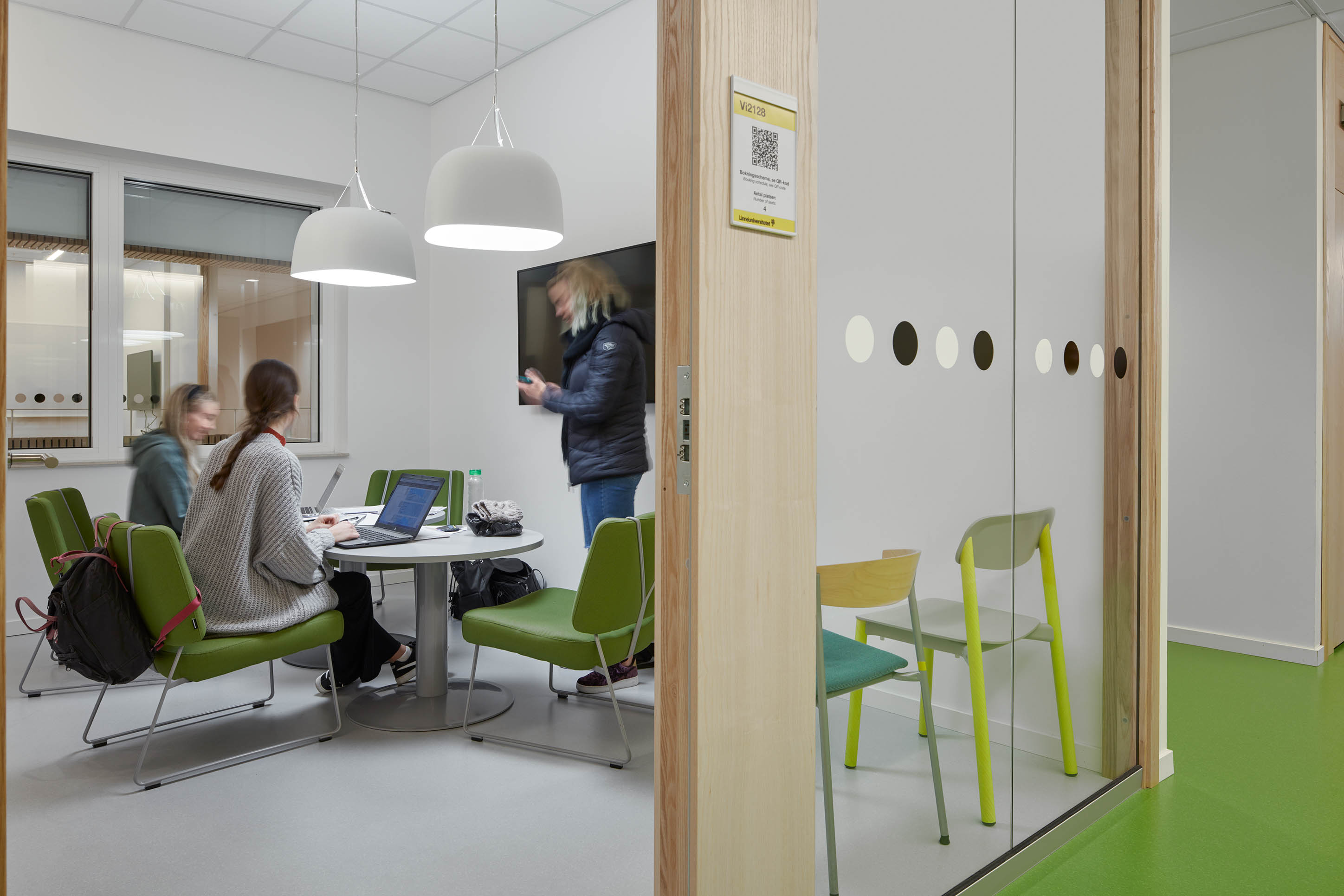

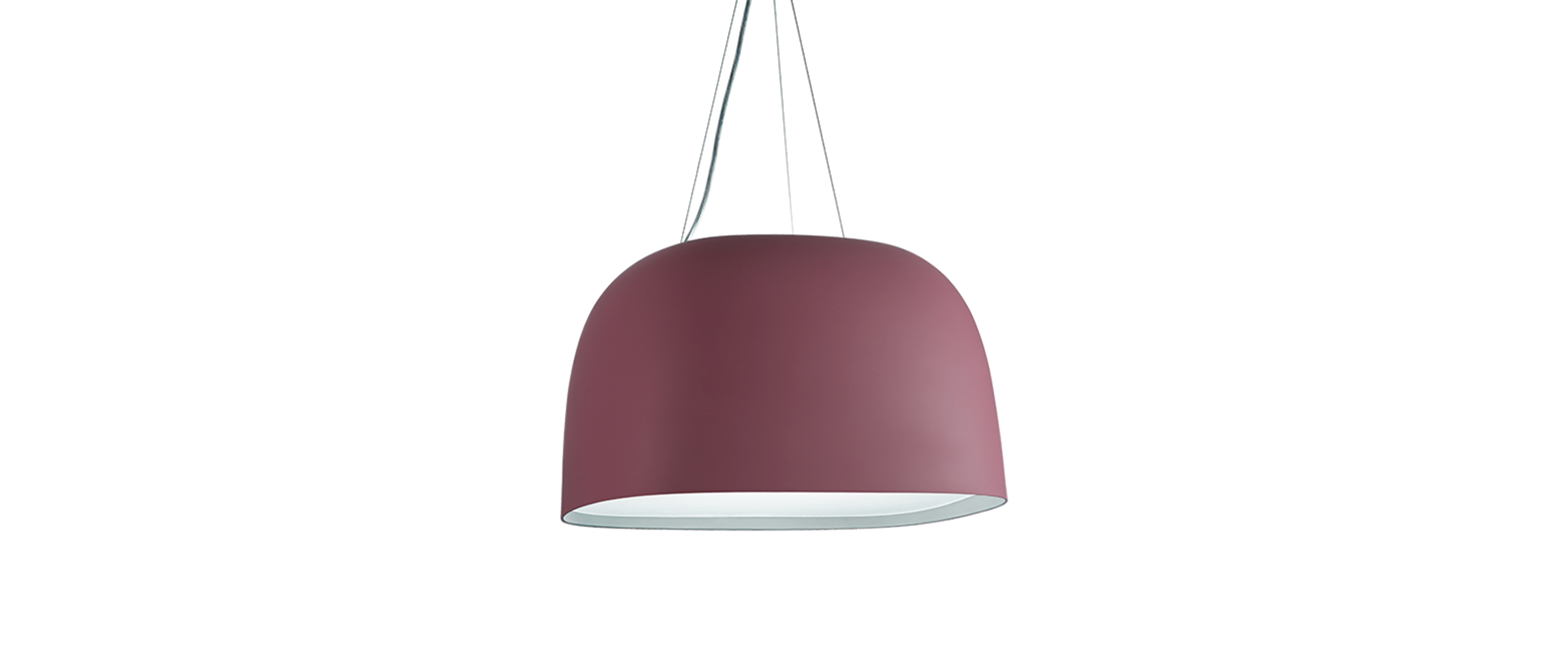

Sweep, Scoot & Scoot linearThe Sweep and Scoot family are attractive luminaires with colour, shape and function in focus. A team where comfort and feeling are central concepts. The luminaires are durable and future-proof, and...

More about the family Sweep and Scoot

Document

Customise with Fagerhult Configure

Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.

  • Adapt and optimise the luminaire
  • Download unique data sheet and light data files
  • To order, contact your sales representative
Start configuration

Specification

Loading...

Filter

Name Description Art.no.
Name Description Art.no.
Support rail (cat. no./pair)L=600/650, section: 15, max. load: 75N/pair90015
Support rail (cat. no./pair)L=600/625, section: 25, max. load: 75N/pair94067
Wire suspension for support rails L: 1,5mWire suspension for support rails 90015, 90016, 90017, 94052, 94067, 9406891426
Support rail (cat. no./pair)L=200/1250, section: 15, max. load: 120/30N/pair90016
Support rail (cat. no./pair)L=1200/1250, section: 25, max. load: 120/30N/pair94068
Ceiling bracket in chrome with wireWire suspension with ceiling bracket in chrome, L=1.5 m/pair91696
Ceiling cupLarge round ceiling cup without wire and mains cable/each96394
Ceiling cupLarge round ceiling cup without wire and mains cable for T-bars 25 mm/each96395
Ceiling cupLarge square ceiling cup without wire and mains cable/each96398
Ceiling cupLarge square ceiling cup without wire and mains cable for T-bars 25 mm/each96399
WireWire with ball, 1.5 m/pair91425
Organic Response I/O boxI/O box with potential-free 16A relay for controlling external units.86413
Organic Response IoT GatewayGateway for connection to Organic Response Portal. Incl. power adapter and wall bracket. Controls a maximum of 150 sensors.86296
Ceiling cupSmall round ceiling cup/each without wire.96396
Ceiling cupSmall round ceiling cup for T-bars 25 mm/each without wire.96397
Ceiling cupSmall square ceiling cup/each without wire.96400
Ceiling cupSmall square ceiling cup for T-bars 25 mm/each without wire.96401
Organic Response EnOcean Wireless Push button panelEnOcean 2 function push button panel, white86416
Organic Response EnOcean Wireless Push button panelEnOcean 4 function push button panel, white86417
Organic Response EnOcean Wireless Push button panelEnOcean 4 function push button panel, labeled, white86437
Organic Response EnOcean Wireless Push button panelEnOcean 2 function push button panel, labeled, white86436
Organic Response I/O boxI/O box with potential-free 8A relay for controlling external units.86433
