Rondo G3 surface mounted

Efficient, robust downlight suitable for various application areas with several luminous fluxes and distribution angles.

Installation

Luminaire for ceiling installation. Ceiling bracket with bayonet fitting on 2 levels. Connection from above or via a surface-mounted cable in 3 possible directions.

Connection

Terminal block 3x2.5 mm² or 5x2.5 mm² when dimming. Integrated driver for flexible installation. Onward connection possible.

Design

Luminaire body and reflector ring of cast aluminium. Glass of PMMA.

Reflector

Reflector of matt anodized aluminium, lens of clear acrylic.

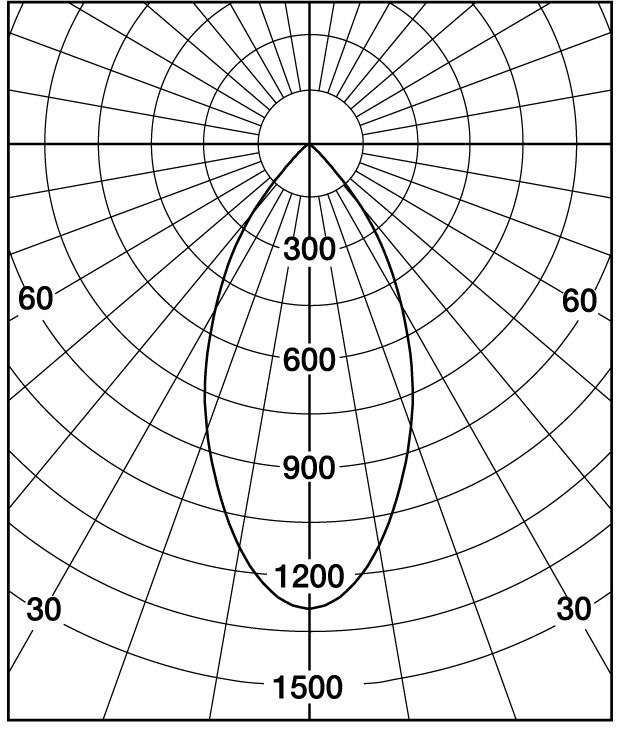

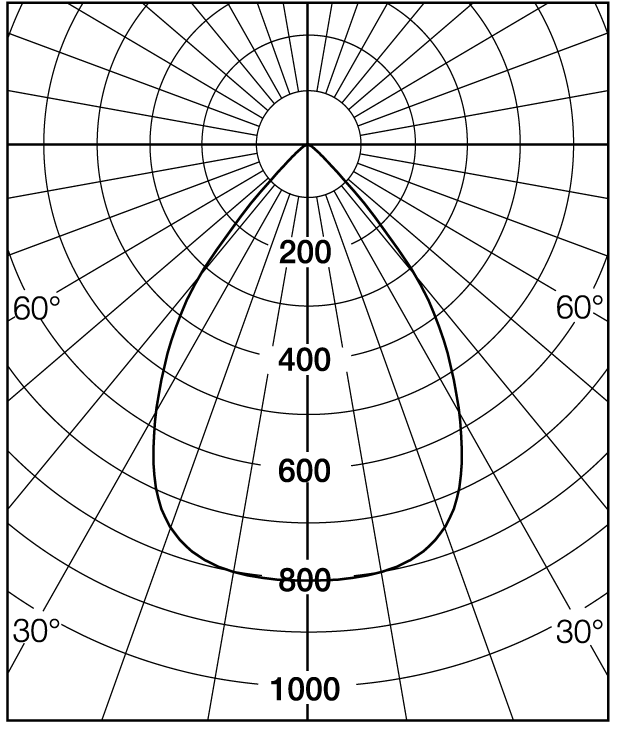

Light distribution

Wide and medium-beam.

Standard colour

Anthracite grey (Gris 900 Sablé).

Miscellaneous

CLO (Constant Light Output) ensures the luminaire provides the same amount of light for the duration of its rated-life.

Media

Rondo

Rondo is a simplistic way to create advanced lighting designs outdoors. A large number of light distributions make it easy to plan different styles of lighting techniques with an innovative installation solution that removes half ...

More about the family Rondo
