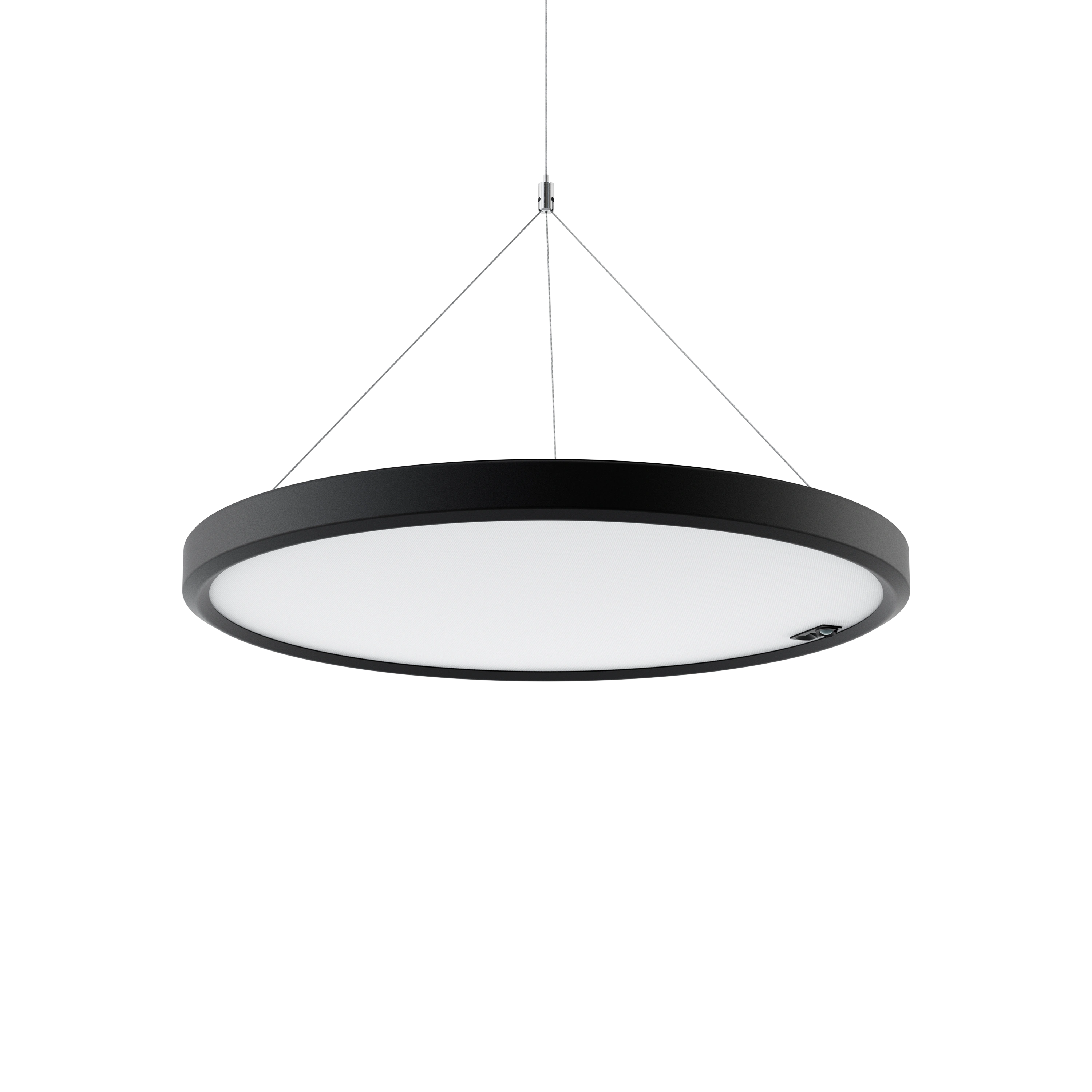

Pozzo Scale Pendant

A suspended luminaire in three sizes with Delta or Opal diffuser.

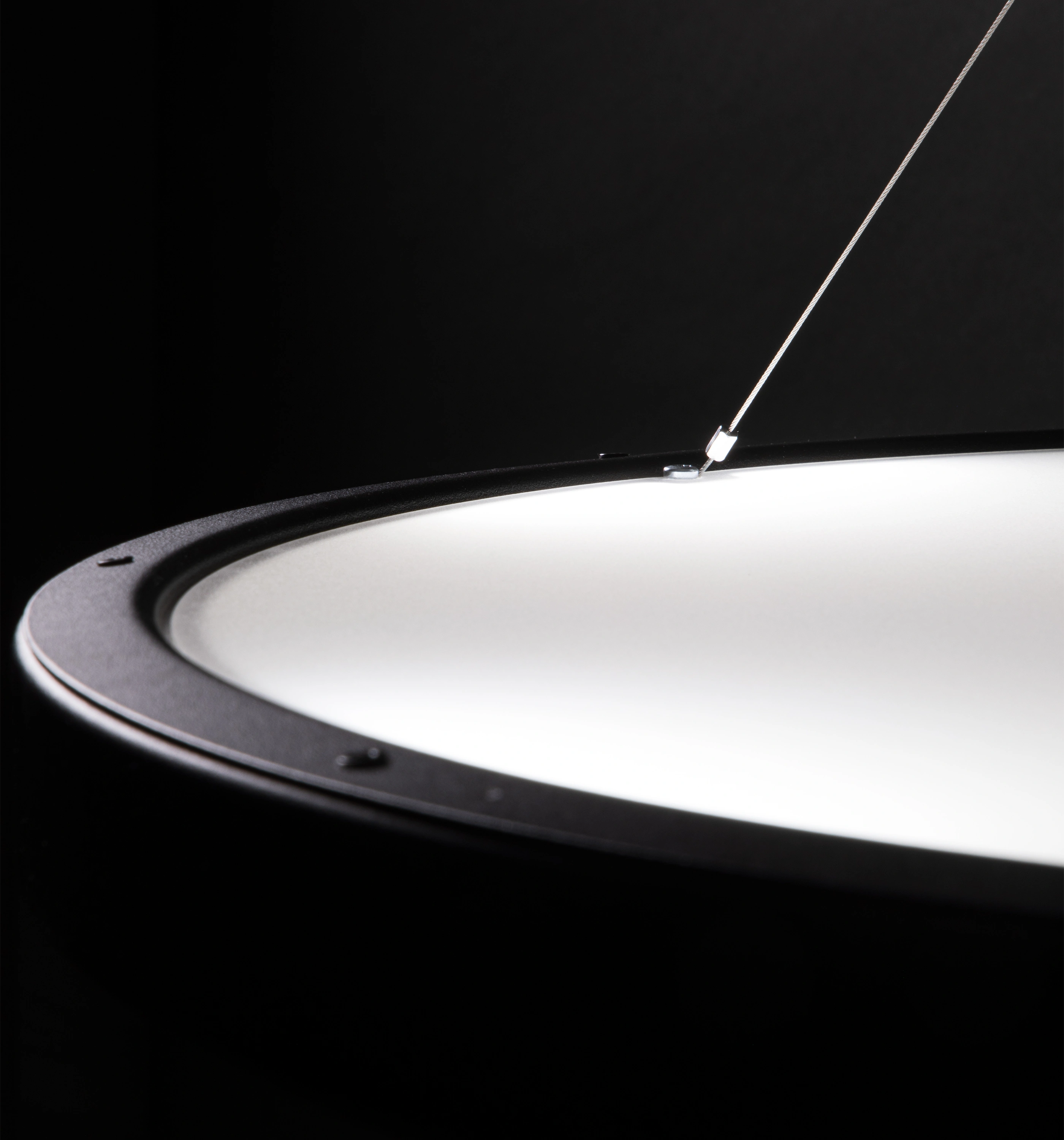

Top point suspension in ceiling cup, c/c 48 mm. Height adjustment is made via friction lock. The ceiling cup can be mounted on sloping ceilings with a gradient of up to 20 degrees.


For connection with 230 V built-in LED driver. Snap-in terminal block 5x2.5 mm². 1-phase through-wiring possible. 1-phase through-wiring possible. Surface mounted mains cable possible 180°. The luminaire is equipped with 2.6 m (Ø 500, Ø 650) or 3.8 m (Ø 850) cable, 5x0.75 mm², between luminaire and ceiling cup.


Metal housing with white (RAL 9016) structured finish.


Opal – plate in opal acrylic (PMMA).
Delta – microprism louvre in acrylic (PMMA.).

Light distribution

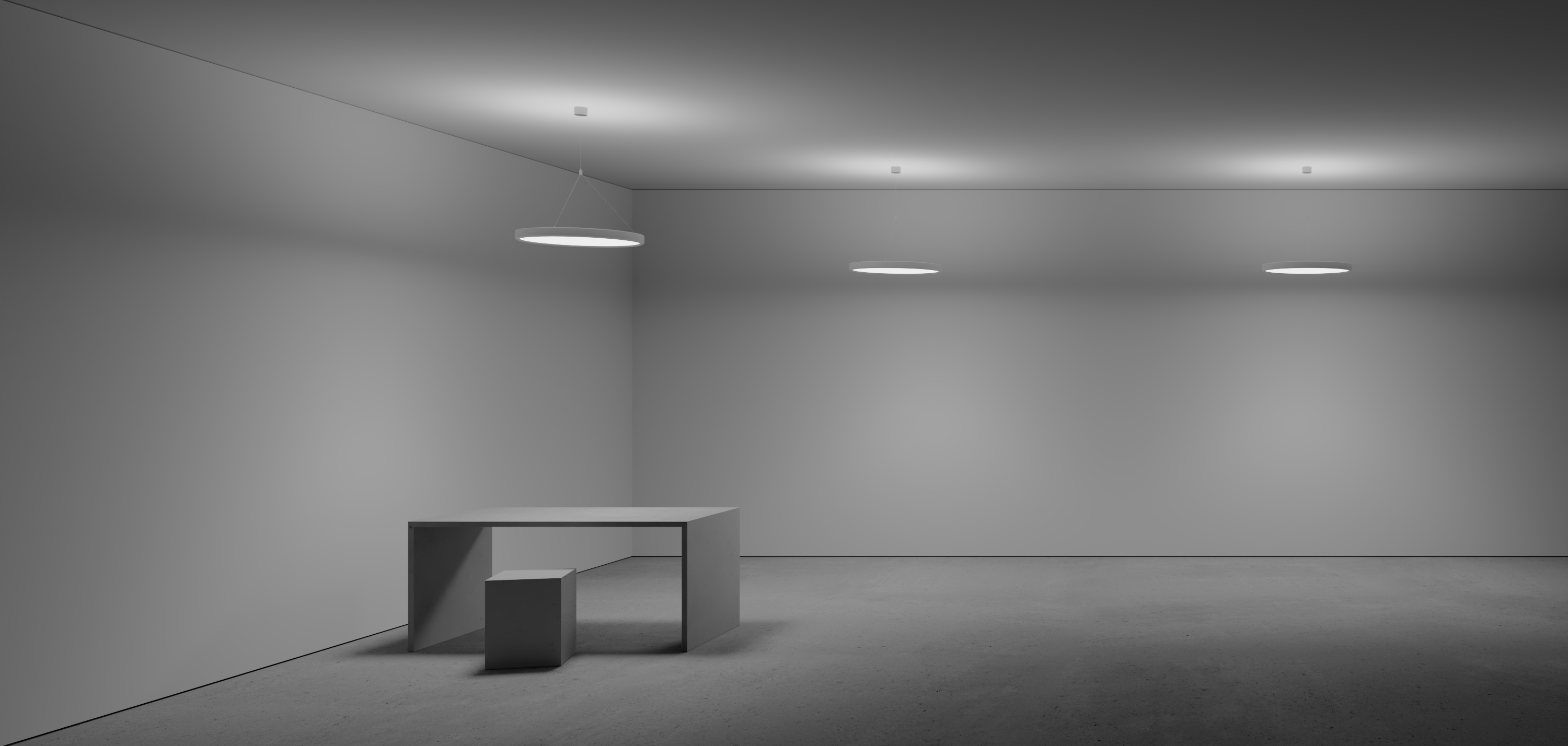

Direct or direct/indirect.


DALI/phase-pulse control as standard. Luminaire with DALI/phase pulse control and CLO (Constant Light Output) as standard.


Luminaire with Tunable White (2700–6500 K) are equipped with DALI device Type 8 driver and is listed as 4000 K in the table.
A cut-out in the ceiling cup is made using cutters 94248 for a surface mounted mains cable.


Installation clips

Pozzo Scale

Inspired by the perception of light in classical architecture and modelled on natural light, the Pozzo Scale offers a versatile and pleasant lighting solution. Thanks to their simple and clean shape, the luminaires are easy to...

More about the family Pozzo Scale
