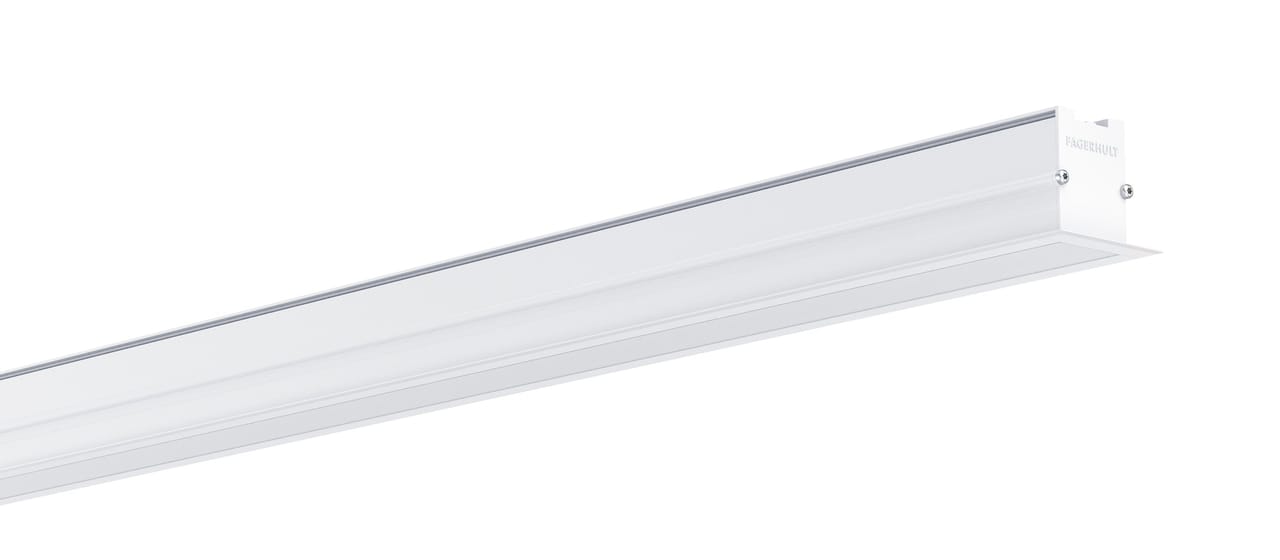

16087-20024 Notor 36 recessed Opal

Installation

Single

Light distribution

Direct

Louvre

Opal

Colour

White

Lumen output

2691

CLO function active

Yes

CLO time, h

50000

lm/W

120

CCT, K

4000

CRI

80

SDCM

3

Melanopic DER

0.600

Lumen maintenance 50 000 h

L100

Lumen maintenance 75 000 h

L86

Lumen maintenance 100 000 h

L82

Lumen maintenance L100 B50, h

50000

LED driver, h/max failure %

100000/10

Energy class, LED module

C

Light control

DALI/Phase-pulse

Driver brand

Osram

Power on last level

Yes

Corridor function

Yes

AM

Yes

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

0, 50, 60

Protective class

1

IP rating

20

Start W

22

End W

25

Average W

23.5

Stand by W

0.15

Min. ambient temperature, °C

-25

Max. ambient temperature, °C

45

MCB B10A, pcs

17

MCB B16A

28

MCB C10A

29

MCB C16A

47

THD, %

9

Surge protection CM, kV/kA

2

Surge protection DM, kV/kA

1

Power factor, 100 %

0.96

NTC function

Yes

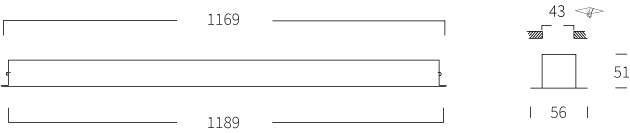

Length, mm

1189

Width, mm

56

Height, mm

51

Weight, kg

1.800
