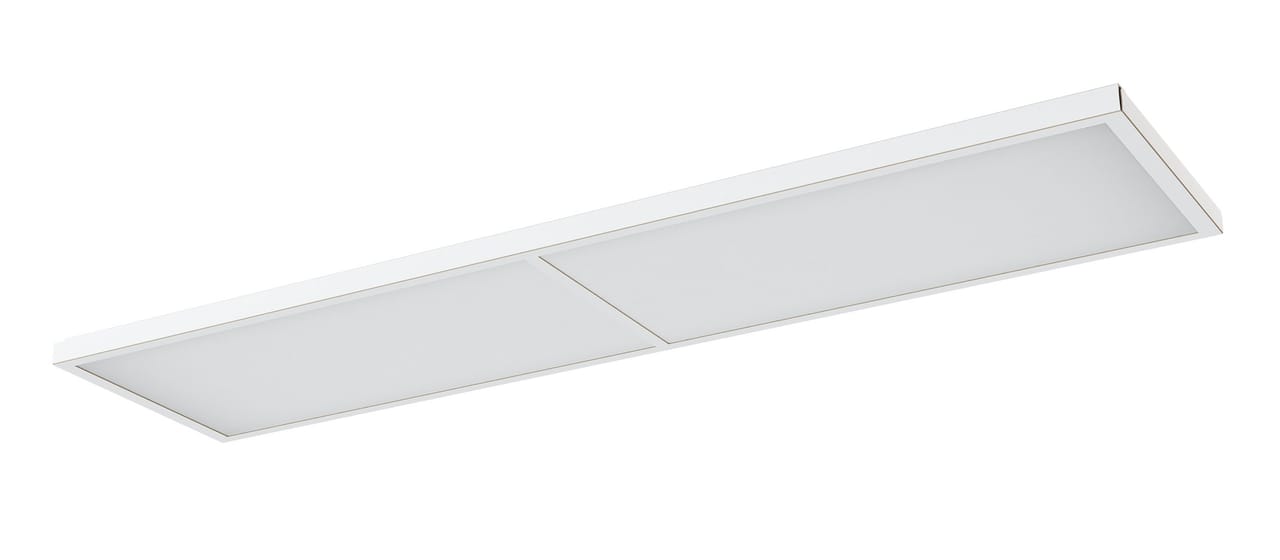

24102-20007 Multilume Re:Think

Installation

VTB

Module

300x1200

Light distribution

Direct

Louvre

Opal

Colour

White

Lumen output

3791

CLO function active

Yes

CLO time, h

100000

lm/W

122

CCT, K

4000

CRI

80

SDCM

3

Melanopic DER

0.570

Lumen maintenance 100 000 h

L100

LED driver, h/max failure %

100000/10

Energy class, LED module

C

Light control

DALI/Phase-pulse

Driver brand

Tridonic

DALI generation/adress type

Dali-2/1xDT6

Power on last level

Yes

Corridor function

Yes

Switch control, max no.

25

AM

Yes

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

0, 50, 60

Protective class

1

IP rating

20

System Wattage

31

Start W

31

End W

36

Average W

33.5

Stand by W

0.15

Min. ambient temperature, °C

-25

Max. ambient temperature, °C

25

MCB B10A, pcs

13

MCB B16A

22

MCB C10A

21

MCB C16A

36

THD, %

0

Surge protection CM, kV/kA

2

Surge protection DM, kV/kA

1

Power factor, 100 %

0

NTC function

False

Length, mm

1195

Width, mm

295

Height, mm

27

Weight, kg

3
