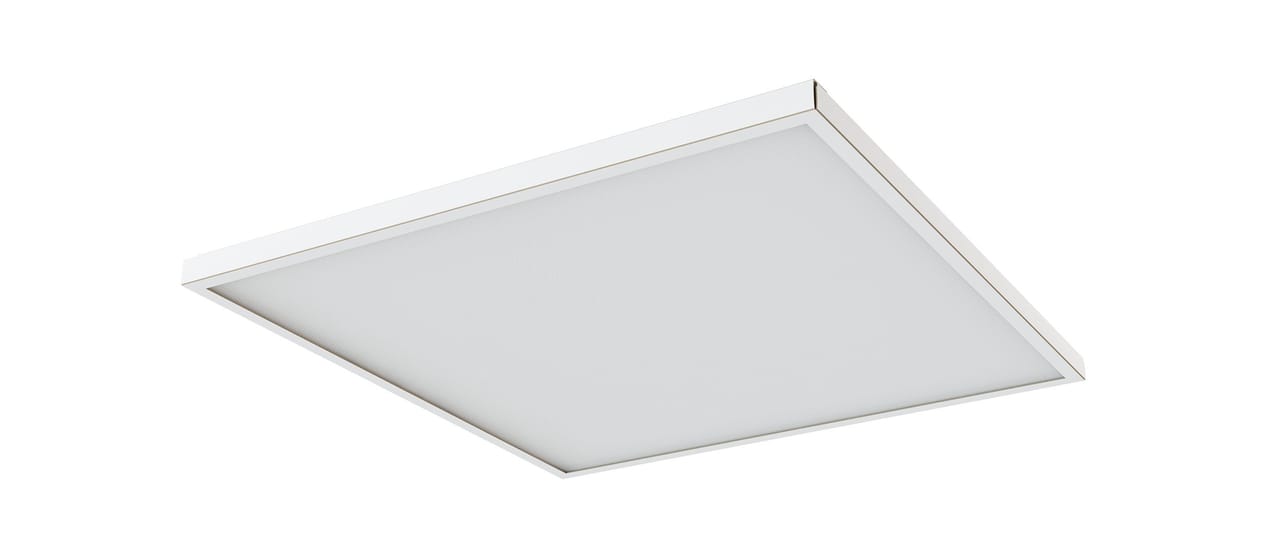

24100-20210 Multilume Re:Think Delta

Installation

VTB

Module

600x600

Light distribution

Direct

Louvre

Delta

Colour

White

Lumen output

4388x2

CLO function active

Yes

CLO time, h

100000

lm/W

146

CCT, K

3000

CRI

80

SDCM

3

Melanopic DER

0.450

Lumen maintenance 100 000 h

L100

LED driver, h/max failure %

100000/10

Energy class, LED module

C

PstLm

1.000

SVM

0.400

Light control

DALI

Driver brand

Helvar

DALI generation/adress type

Dali-2/1xDT6

Power on last level

Yes

Corridor function

Yes

Switch control, max no.

60

AM

Yes

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

0, 50, 60

Protective class

1

IP rating

20

System Wattage

60

Start W

60

End W

70

Average W

65

Stand by W

0.35

Min. ambient temperature, °C

-20

Max. ambient temperature, °C

25

MCB B10A, pcs

15

MCB B16A

24

MCB C10A

25

MCB C16A

41

Surge protection CM, kV/kA

2

Surge protection DM, kV/kA

1

Power factor, 100 %

0

NTC function

False

Length, mm

595

Width, mm

595

Height, mm

27

Weight, kg

2.7 x2
