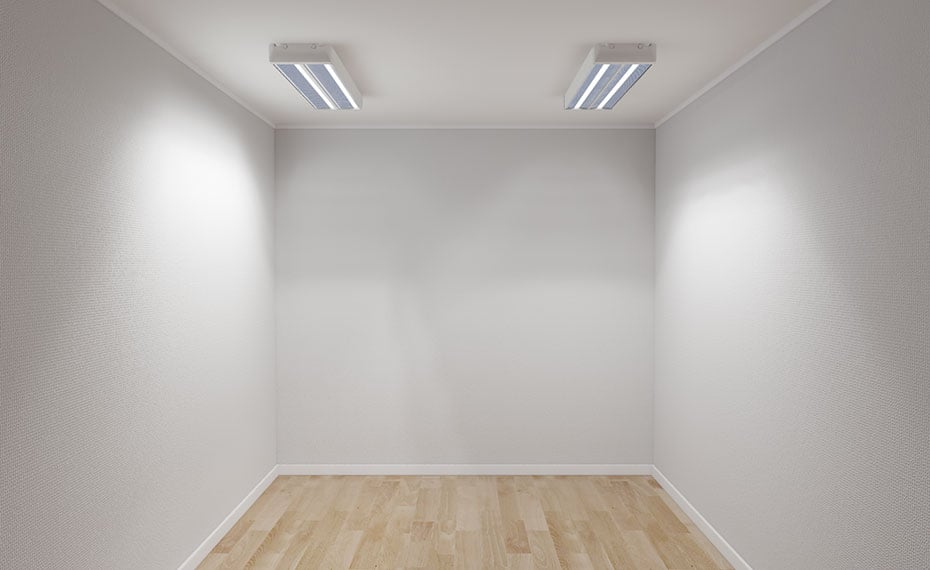

Excis LED

Excis has been developed for sports centres with ball protection certification per VDE 0710-13. Available with different lumen packages and provides a good, glare-free light even from greater heights.

Installation

Surface mounted, tube fitting, wire or adjustable ceiling bracket.

Connection

Four cable entries fitted with blanking grommets ∅ 23 mm two in each end cap. Through-wiring 5x2,5 mm2 with snap-in terminal blocks at each end.
With DALI connection - through-wiring 5+2x2.5 mm2 with snap-in terminal blocks at each end.

Design

Body of white enamelled aluminium (RAL 9016). The outer end caps are in polycarbonate.

Louvre

Optical line prism that gives glare-free light at the relevant angles.

Reflector

Symmetrical or asymmetrical satin matt metallised aluminium reflectors.

Dimming

DALI control with amplitude dimming. Luminaire with 151 W requires 2 DALI addresses. DALI/phase pulse control as standard.

Miscellaneous

Excis LED is certified according to VDE 0713. All versions comply with UGR 22.
CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.

Media

Excis

Excis LED offers an ideal solution in sports halls in terms of lighting comfort, energy efficiency, durability and freedom from maintenance. Three different light distributions (wide, medium and asymmetric) and three different...

More about the family Excis

Document

Specification

Filter

Art.no. Effect, W Lumen output CCT, K Colour Length, mm Louvre Light distribution Light control CLO function on Miscellaneous
Art.no. Effect, W Lumen output CCT, K Colour Length, mm Louvre Light distribution Light control CLO function on Miscellaneous
18440-402 43 6175 3000 White 1156 Line prism Medium Beam DALI/Phase-pulse Yes
18441-402 83 11210 3000 White 1156 Line prism Medium Beam DALI/Phase-pulse Yes
18442-402 150 19570 3000 White 1156 Line prism Medium Beam DALI/Phase-pulse Yes Requires 2 DALI addresses
18443-402 43 5890 3000 White 1156 Line prism Wide Beam DALI/Phase-pulse Yes
18444-402 83 11115 3000 White 1156 Line prism Wide Beam DALI/Phase-pulse Yes
18445-402 150 19285 3000 White 1156 Line prism Wide Beam DALI/Phase-pulse Yes Requires 2 DALI addresses
18446-402 43 5890 3000 White 1156 Line prism Asymmetrical DALI/Phase-pulse Yes
18447-402 83 11020 3000 White 1156 Line prism Asymmetrical DALI/Phase-pulse Yes
18448-402 150 19190 3000 White 1156 Line prism Asymmetrical DALI/Phase-pulse Yes Requires 2 DALI addresses
18449-402 43 6500 4000 White 1156 Line prism Medium Beam DALI/Phase-pulse Yes
18450-402 83 11800 4000 White 1156 Line prism Medium Beam DALI/Phase-pulse Yes
18451-402 150 20600 4000 White 1156 Line prism Medium Beam DALI/Phase-pulse Yes Requires 2 DALI addresses
18452-402 43 6200 4000 White 1156 Line prism Wide Beam DALI/Phase-pulse Yes
18453-402 83 11700 4000 White 1156 Line prism Wide Beam DALI/Phase-pulse Yes
18454-402 150 20300 4000 White 1156 Line prism Wide Beam DALI/Phase-pulse Yes Requires 2 DALI addresses
18455-402 43 6200 4000 White 1156 Line prism Asymmetrical DALI/Phase-pulse Yes
18456-402 83 11600 4000 White 1156 Line prism Asymmetrical DALI/Phase-pulse Yes
18457-402 150 20200 4000 White 1156 Line prism Asymmetrical DALI/Phase-pulse Yes Requires 2 DALI addresses

Filter

Name Description Art.no.
Name Description Art.no.
Adjustable ceiling bracketAdjustable ceiling bracket/pair91374
Tube bracketConduit bracket/pair 91198
Wire cable bracketWire cable bracket/pair91196

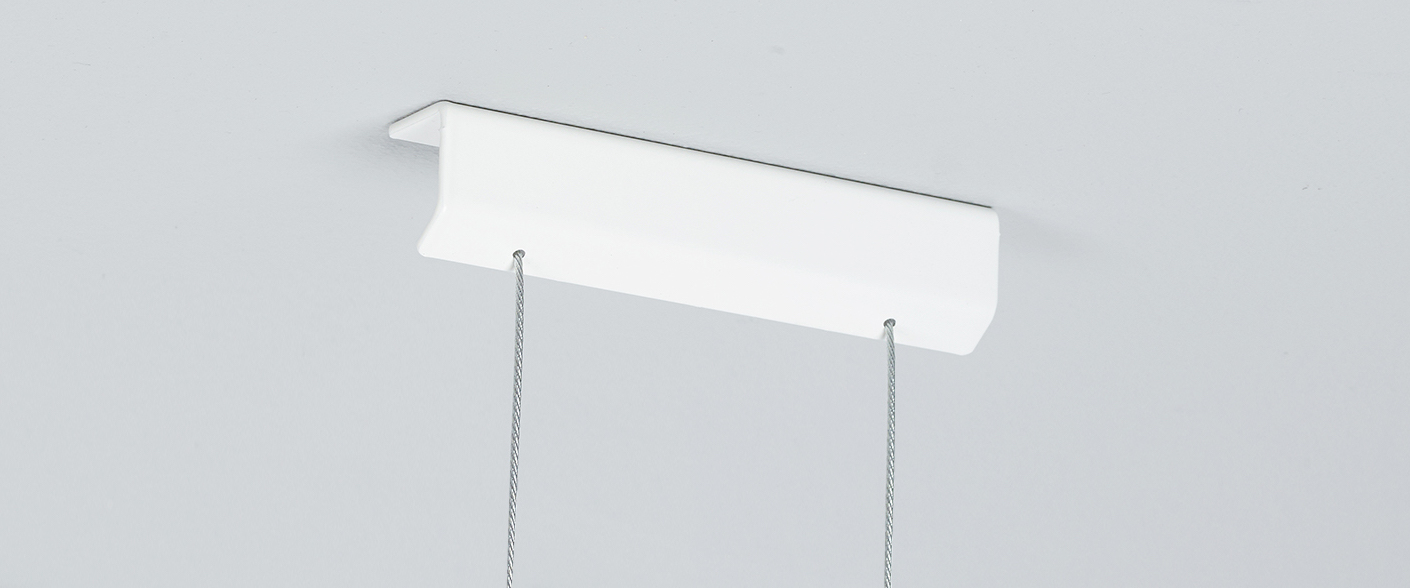

Wire suspension Excis LEDWire suspension 2x2,5 m/pair. Adjustable with friction locks on the luminaire.94887
