Dwide corner21843 Dwide 21843
Corner-mounted luminaire with direct light distribution.

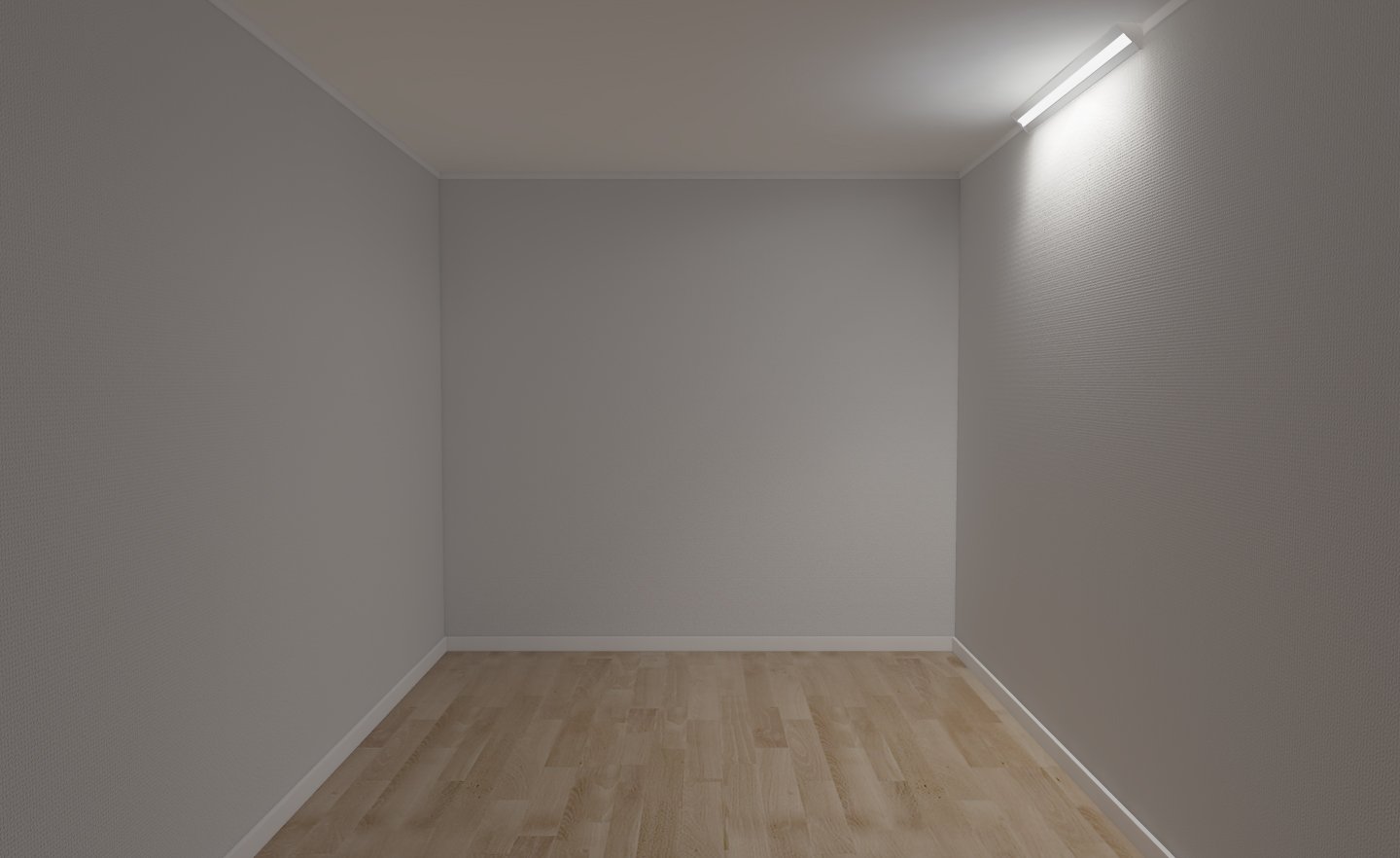

For mounting where the ceiling and wall meet. Installed against the wall or ceiling.
Cable entry at both ends, double Ø19 entry at the centre of the luminaire towards the wall or ceiling. 5-way snap-in terminal block at the centre, 1-phase through-wiring possible.
Metal luminaire body with die-cast metal ends, white (RAL 9016) finish.
Delta – microprism louvre in acrylic (PMMA) with a thin opal diffuser in acrylic (PMMA) inside. Light divider in acrylic (PMMA).
DALI/phase-pulse control as standard. Luminaire with DALI/phase pulse control and CLO (Constant Light Output) as standard.
Organic Response – PIR sensor with presence and daylight control. All luminaires act as master/slave with IR communication.
CRI 90 available upon request. CLO (Constant Light Output) means that the luminaire provides the same amount of light for the duration of its specified burn-time.
Organic Response – How it works
Dwide Corner – Installation

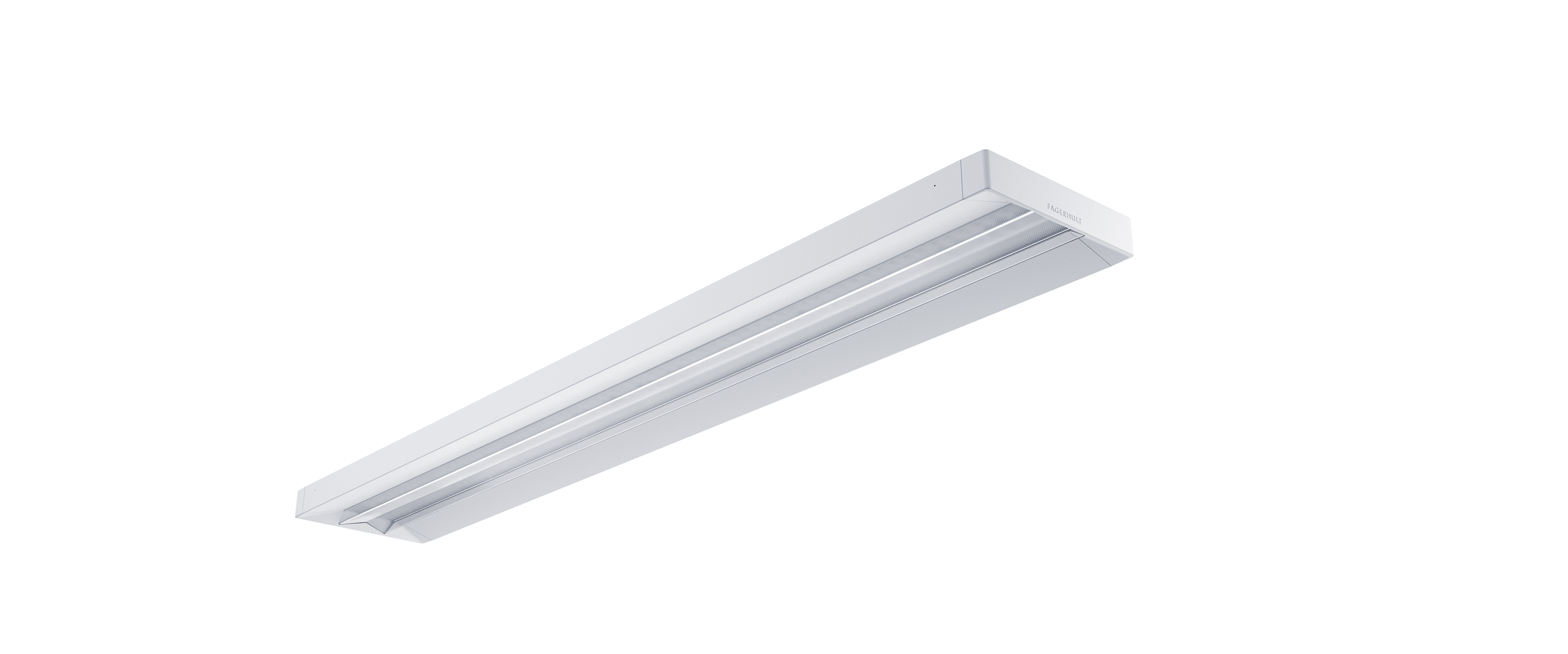

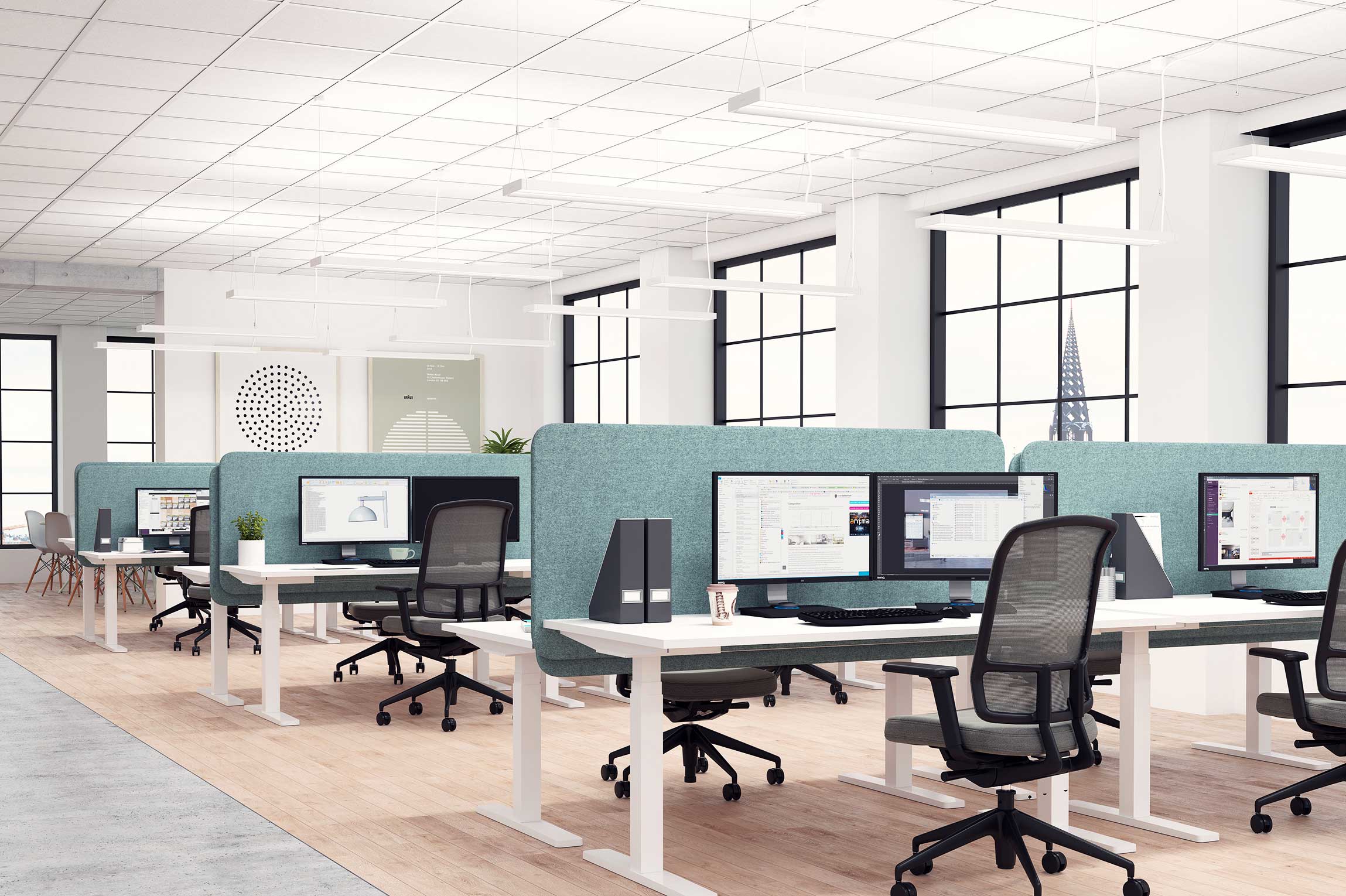

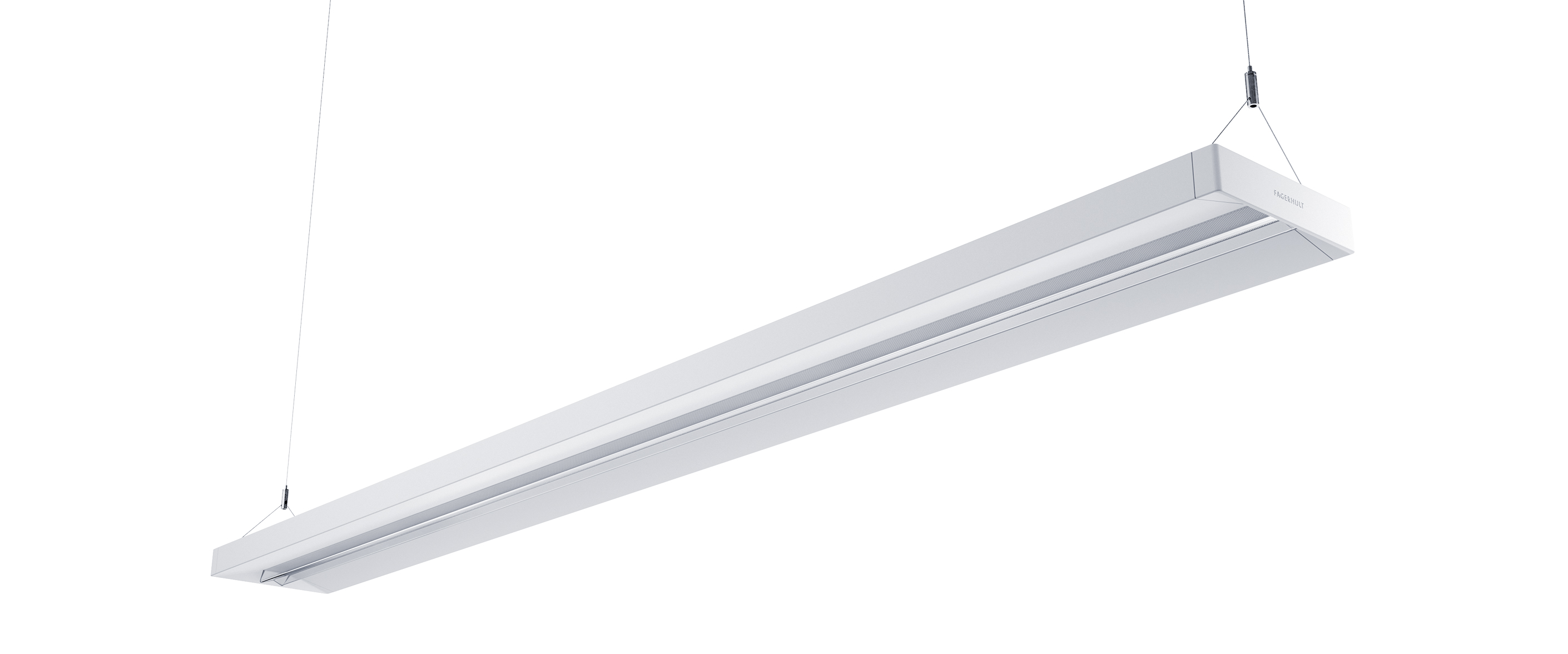

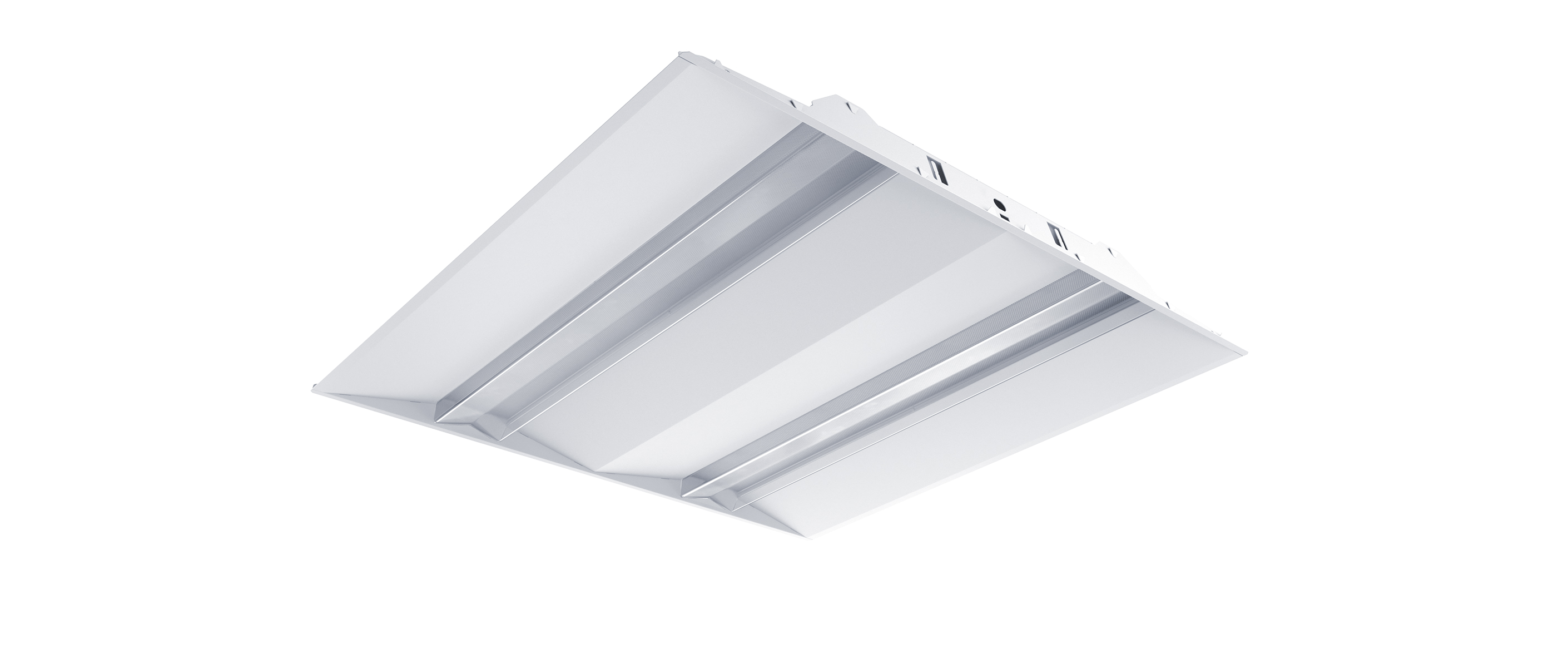

Dwide is a complete, versatile product family that meets all lighting requirements – whether for office, school or hospital projects. Recessed, ceiling-mounted and pendant luminaires with different light distributions are...More about the family Dwide
