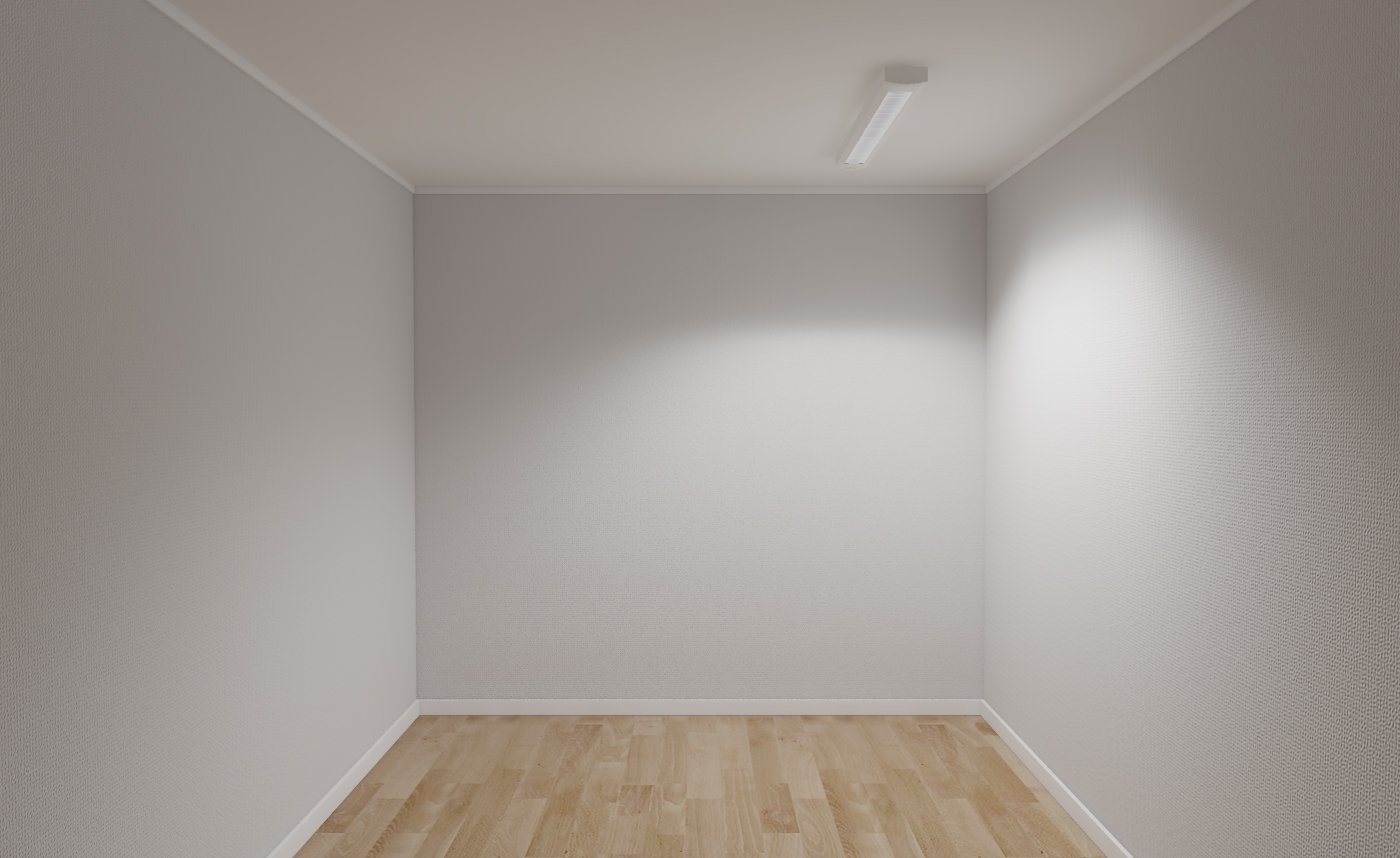

DTI LED Type 1

A ceiling-mounted workplace luminaire. Beta Opti louvres provide high efficiency and optimal lighting comfort.

Installation

Surface mounted or wire suspension. Installation via wire suspension requires wire suspension and wire bracket 91685, see accessories.

Connection

Connections are made at the end of the luminaire and are concealed by the end-cap, with the option of cable entry in the end caps and the middle of the luminaire. 5-way, snap-in terminal block in each end cap with the option of 1-phase through-wiring (excluding e-Sense).

Design

Luminaire body in sheet steel, white enamelled (RAL 9016) end-caps in polypropylene plastic.

Louvre

Beta Opti – double parabolic reflector louvre with satin matt metallised aluminium side and cross-blades with an integrated opal film that minimises the risk of uncomfortable glare from the diodes.

Dimming

Luminaires with DALI/phase pulse control have CLO (Constant Light Output) as standard.
Most models can also be equipped with other ballasts for dimming.
e-Sense Active – PIR sensor with presence and daylight control via DALI.
e-Sense BrightSwitch – PIR sensors with lux threshold. Presence control on/off. Absence dimming high/low available on request.
e-Sense Connect – presence and daylight control. Sensor luminaires with PIR sensor. RF communications via controller.<
e-Sense Organic G3 – PIR sensor with presence and daylight control. All luminaires have master/slave functionality with IR communications.

Miscellaneous

CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.

Media

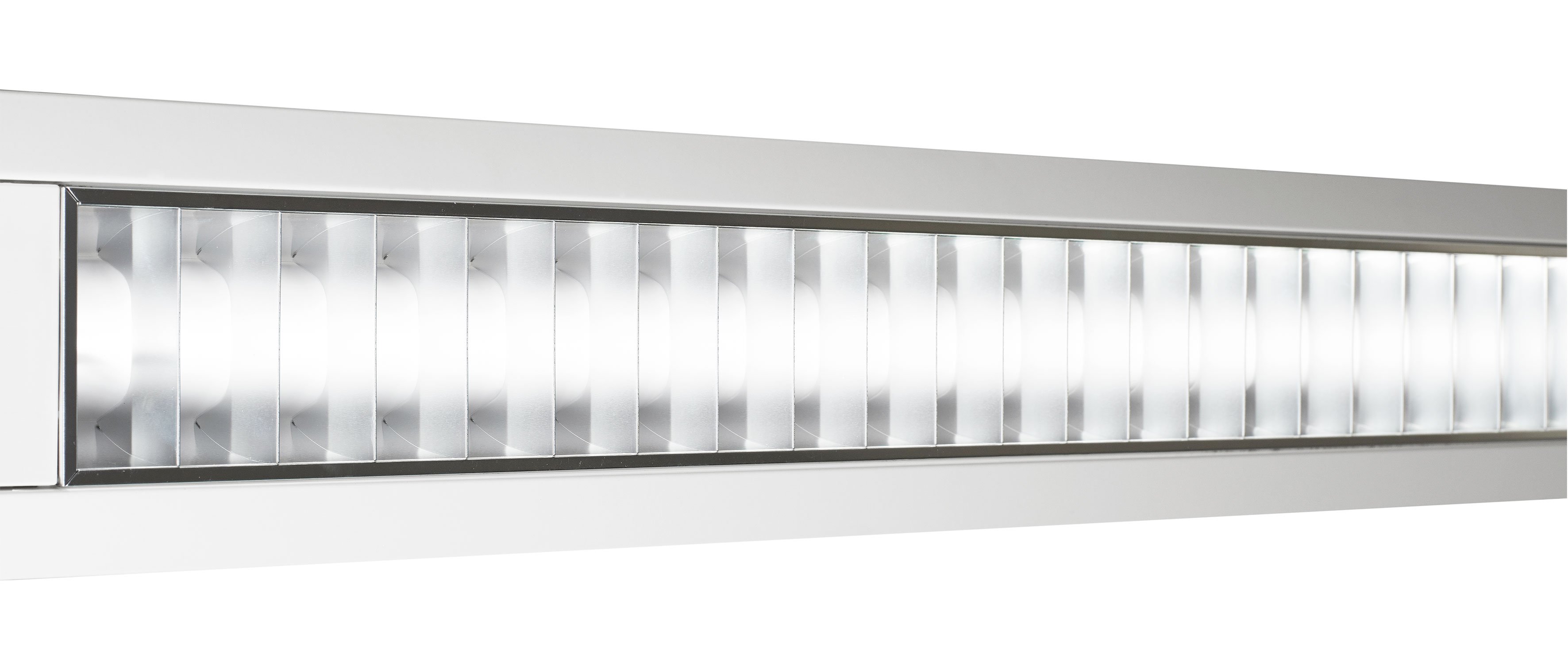

The Beta Opti louvre directs the flow out of the luminaire with high precision.

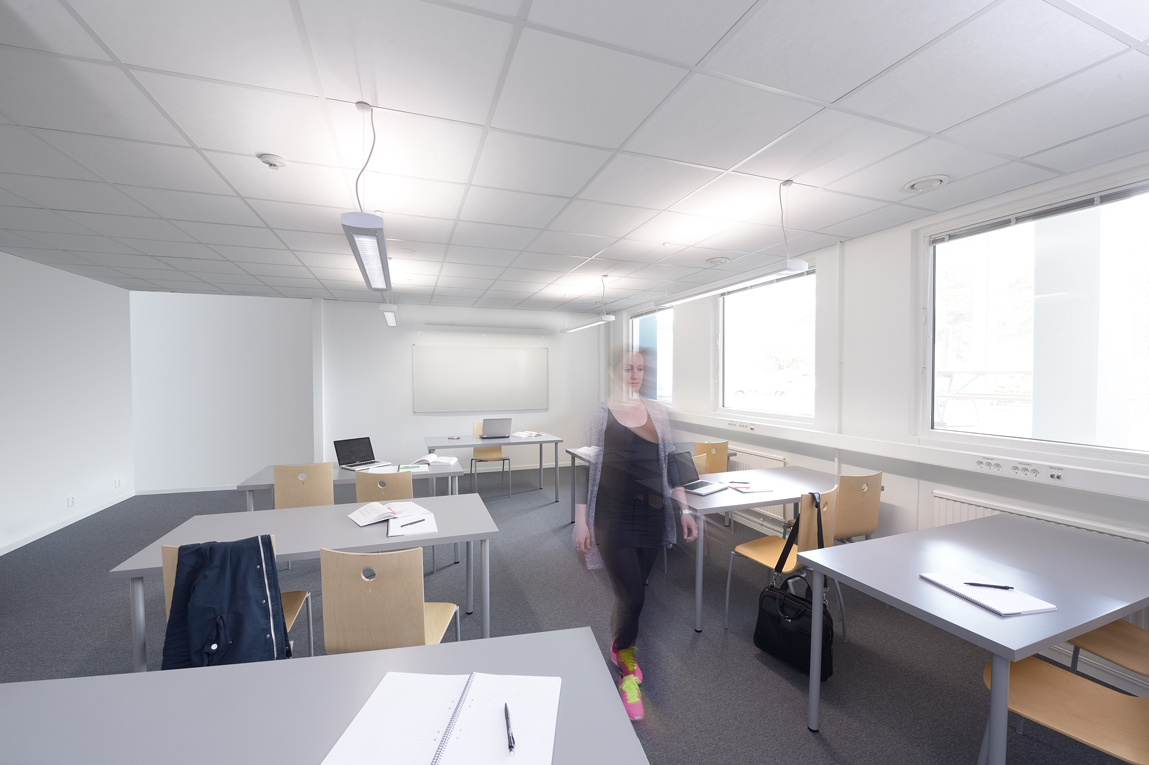

DTI LED

DTI, Direct to Indirect, is Fagerhult’s universal solution for versatile lighting planning. A classic that covers the need for work and general lighting in the most varying environments. Direct light makes it easier to see and...

More about the family DTI LED

Document

Specification

Filter

Art.no. Effect, W Lumen output CCT, K Colour Module Length, mm Width, mm Height, mm Installation Light distribution Light control CLO function on Miscellaneous
Art.no. Effect, W Lumen output CCT, K Colour Module Length, mm Width, mm Height, mm Installation Light distribution Light control CLO function on Miscellaneous
29460 9 960 3000 White 600 765 141 59
29460-402 9 958 3000 White 600 765 141 59 Direct DALI/Phase-pulse Yes
29461 16 1920 3000 White 1200 1365 141 59
29461-402 16 1917 3000 White 1200 1365 141 59 Direct DALI/Phase-pulse Yes
29462 24 2900 3000 White 1200 1365 141 59
29462-402 24 2904 3000 White 1200 1365 141 59 Direct DALI/Phase-pulse Yes
29462-533 24 2900 3000 White 1200 1365 141 59 Start/Single e-Sense Organic
29463 38 4300 3000 White 1200 1365 141 59
29463-402 38 4281 3000 White 1200 1365 141 59 Direct DALI/Phase-pulse Yes
29463-457 38 4300 3000 White 1200 1365 141 59 e-Sense Connect sensor
29463-458 38 4300 3000 White 1200 1365 141 59 e-Sense Connect
29463-515 38 4300 3000 White 1200 1365 141 59 e-Sense BrightSwitch on/off
29463-537 38 4281 3000 White 1200 1365 141 59 Direct e-Sense Active Master Yes
29464 48 5150 3000 White 1200 1365 141 59
29464-402 48 5150 3000 White 1200 1365 141 59 DALI/Phase-pulse
29464-457 48 5150 3000 White 1200 1365 141 59 e-Sense Connect sensor
29464-458 48 5150 3000 White 1200 1365 141 59 e-Sense Connect
29464-515 48 5150 3000 White 1200 1365 141 59 e-Sense BrightSwitch on/off
29464-537 48 5153 3000 White 1200 1365 141 59 Direct e-Sense Active Master
29465 9 1010 4000 White 600 765 141 59
29465-402 9 1009 4000 White 600 765 141 59 Direct DALI/Phase-pulse Yes
29466 16 2020 4000 White 1200 1365 141 59
29466-402 16 2017 4000 White 1200 1365 141 59 Direct DALI/Phase-pulse Yes
29467 24 3060 4000 White 1200 1365 141 59
29467-402 24 3057 4000 White 1200 1365 141 59 Direct DALI/Phase-pulse Yes
29467-533 24 3060 4000 White 1200 1365 141 59 Start/Single e-Sense Organic
29468 38 4500 4000 White 1200 1365 141 59
29468-402 38 4506 4000 White 1200 1365 141 59 Direct DALI/Phase-pulse Yes
29468-515 38 4500 4000 White 1200 1365 141 59 e-Sense BrightSwitch on/off
29468-537 38 4506 4000 White 1200 1365 141 59 Direct e-Sense Active Master Yes
29469 48 5420 4000 White 1200 1365 141 59
29469-402 48 5420 4000 White 1200 1365 141 59 DALI/Phase-pulse
29469-457 48 5420 4000 White 1200 1365 141 59 e-Sense Connect sensor
29469-458 48 5420 4000 White 1200 1365 141 59 e-Sense Connect
29469-459 48 5420 4000 White 1200 1365 141 59 e-Sense Active Master (previously ActiLume)
29469-515 48 5420 4000 White 1200 1365 141 59 e-Sense BrightSwitch on/off
29667 44 5420 4000 White 1500 1665 141 59
29667-402 44 5420 4000 White 1500 1665 141 59 DALI/Phase-pulse
29669 44 5150 3000 White 1500 1665 141 59
29669-402 44 5150 3000 White 1500 1665 141 59 DALI/Phase-pulse

Filter

Name Description Art.no.
Name Description Art.no.
Wire suspension for support railsWire suspension for support rails 90015, 90016, 90017, 94052, 94067, 9406891426
Wire suspension for single installation, 3x0.75 mm² Round ceiling cups – small + large, transparent mains cable (96382+96390)95355
Wire suspension for continuous installation, 3x0.75 mm²Large round ceiling cup for T-bars 25 mm, white mains cable/each96388
Wire suspension for single installation, 3x0.75 mm² Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96388)95356
Wire suspension for continuous installation, 3x0.75 mm²Large square ceiling cup, white mains cable/each96374
Wire suspension for single installation, 3x0.75 mm² Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96376)95364
Wire suspension for continuous installation, 3x0.75 mm²Large square ceiling cup, transparent mains cable/each96378
Wire suspension for single installation, 3x0.75 mm² Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96379)95365
Wire suspension for continuous installation, 3x0.75 mm²Large square ceiling cup for T-bars 25 mm, transparent mains cable/each96379
Wire suspension for single installation, 3x0.75 mm² Square ceiling cups – small + large, white mains cable (96370+96374)95362
Wire suspension for continuous installation, 3x0.75 mm²Large square ceiling cup for T-bars 25 mm, white mains cable/each96376
Wire suspension for single installation, 3x0.75 mm² Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96391)95353
Wire suspension for continuous installation, 3x0.75 mm²Large round ceiling cup, white mains cable/each96386
Wire suspension for single installation, 3x0.75 mm² Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96379)95361
Wire suspension for continuous installation Large round ceiling cup for T-bars 25 mm/each96385
Wire suspension for single installation, 3x0.75 mm² Square ceiling cups – small + large, transparent mains cable (96370+96378)95363
Wire suspension for continuous installation Large square ceiling cup for T-bars 25 mm/each96373
Wire suspension for single installation, 3x0.75 mm² Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96376)95360
Wire suspension for continuous installation Small round ceiling cup/each96382
Wire suspension for single installation, 3x0.75 mm² Square ceiling cups – large, transparent mains cable (96371+96378)95359
Wire suspension for continuous installation Large square ceiling cup/each96371
Wire suspension for single installation, 3x0.75 mm² Square ceiling cups – large, white mains cable (96371+96374)95358
Wire suspension for continuous installation Small round ceiling cup for T-bars 25 mm/each96384
Wire suspension for single installation, 3x0.75 mm² Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96391)95357
Wire suspension for continuous installation Small square ceiling cup for T-bars 25 mm/each96372
Wire suspension for single installation, 3x0.75 mm² Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96388)95352
Wire suspension for continuous installation Small square ceiling cup/each96370
Wire suspension for single installation, 3x0.75 mm² Round ceiling cups – large, white mains cable (96383+96386)95350
Wire suspension for continuous installation Large round ceiling cup/each96383
Wire suspension for continuous installation, 3x0.75 mm²Large round ceiling cup, transparent mains cable/each96390
Wire suspension for continuous installation, 3x0.75 mm²Large round ceiling cup for T-bars 25 mm, transparent mains cable/each96391
Remote control e-Sense BrightSwitchRemote control86359
Wire suspension for single installation, 3x0.75 mm² Round ceiling cups – large, transparent mains cable (96383+96390)95351
Wire suspension for single installation, 3x0.75 mm² Round ceiling cups – small + large, white mains cable (96382+96386)95354

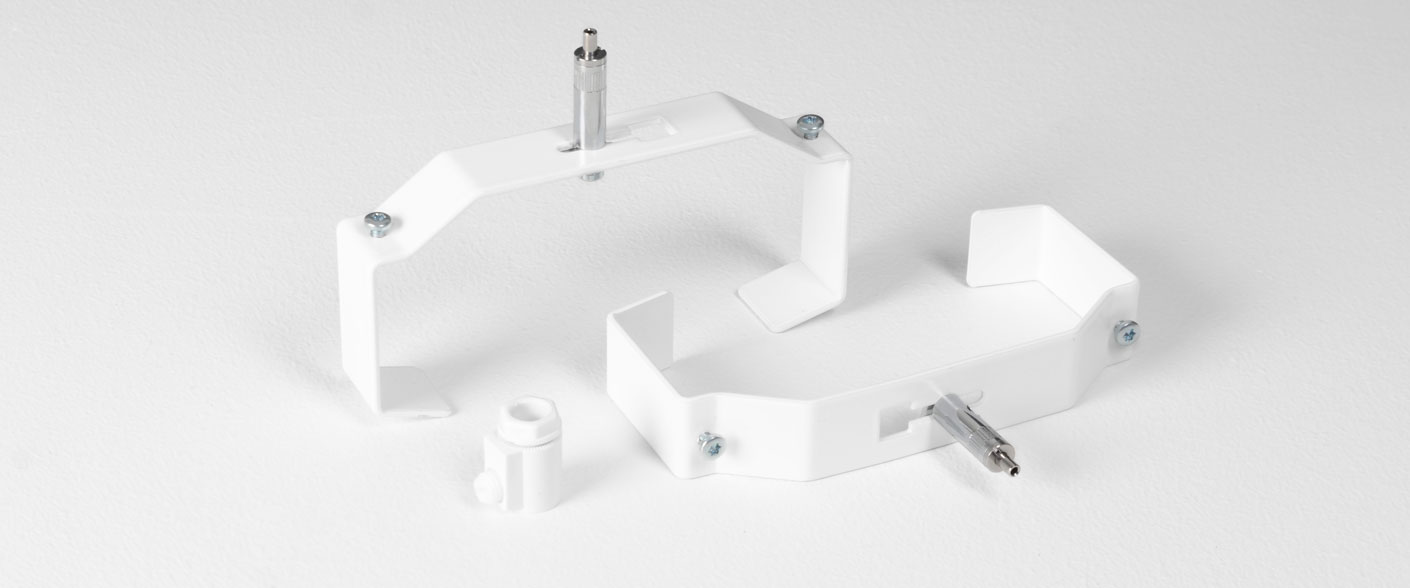

Wire suspension bracket Wire suspension bracket incl. strain relief and friction lock/pair91685
IR dongle for e-Sense OrganicIR dongle for e-Sense Organic equipped luminaire.86279
Wire suspension for single installation, 5x0.75 mm²Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96389)95372
Wire suspension for continuous installation, 5x0.75 mm²Large round ceiling cup, white mains cable/each96387
Wire suspension for single installation, 5x0.75 mm²Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96381)95381
Wire suspension for continuous installation, 5x0.75 mm²Large round ceiling cup for T-bars 25 mm, transparent mains cable/each96393
Wire suspension for single installation, 5x0.75 mm²Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96377)95380
Wire suspension for continuous installation, 5x0.75 mm²Large round ceiling cup for T-bars 25 mm, white mains cable/each96389
Wire suspension for single installation, 5x0.75 mm²Square ceiling cups – small + large, transparent mains cable (96370+96380)95379
Wire suspension for continuous installation, 5x0.75 mm²Large square ceiling cup, white mains cable/each96375
Wire suspension for single installation, 5x0.75 mm²Square ceiling cups – small + large, white mains cable (96370+96375)95378
Wire suspension for continuous installation, 5x0.75 mm²Large square ceiling cup, transparent mains cable/each96380
Wire suspension for continuous installation, 5x0.75 mm²Large square ceiling cup for T-bars 25 mm, transparent mains cable/each96381
Wire suspension for single installation, 5x0.75 mm²Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96381)95377
Wire suspension for continuous installation, 5x0.75 mm²Large square ceiling cup for T-bars 25 mm, white mains cable/each96377
Wire suspension for single installation, 5x0.75 mm²Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96377)95376
Wire suspension for continuous installation, 5x0.75 mm²Large round ceiling cup, transparent mains cable/each96392
Wire suspension for single installation, 5x0.75 mm²Square ceiling cups – large, transparent mains cable (96371+96380)95375
Wire suspension for single installation, 5x0.75 mm²Square ceiling cups – large, white mains cable (96371+96375)95374
Wire suspension for single installation, 5x0.75 mm²Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96389)95368
Wire suspension for single installation, 5x0.75 mm²Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96393)95373
Wire suspension for single installation, 5x0.75 mm²Round ceiling cups – small + large, white mains cable (96382+96387)95370
Wire suspension for single installation, 5x0.75 mm²Round ceiling cups – large, transparent mains cable (96383+96392)95367
Wire suspension for single installation, 5x0.75 mm²Round ceiling cups – small + large, transparent mains cable (96382+96392)95371
Wire suspension for single installation, 5x0.75 mm²Round ceiling cups – large, white mains cable (96383+96387)95366
Wire suspension for single installation, 5x0.75 mm²Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96393)95369
Ceiling bracket in chrome with wireWire suspension with ceiling bracket in chrome, L=1.5 m/pair91696
Remote controlRemote control 86415
Programming remote control e-Sense ActiveProgramming remote control 86414
e-Sense Organic G3 I/O boxI/O box with potential-free relay for controlling external units.86413
External sensor incl. DALI PSU e-Sense Organic G3External sensor incl. DALI PSU, recessed, 1 m cable86407
e-Sense Organic G3 IoT GatewayGateway for connection to e-Sense Organic Portal. Incl. power adapter and wall bracket. Controls a maximum of 150 sensors.86296
External sensor incl. DALI PSU e-Sense Organic G3External sensor incl. DALI PSU, suspended, 1 m cable86408
External sensor incl. DALI PSU e-Sense Organic G3Extern sensor incl. DALI PSU, tube installation 1 m cable. Tube not included.86409
External sensor incl. DALI PSU e-Sense Organic G3Extern sensor incl. DALI PSU, tube installation 3.2 m cable. Tube not included.86412
External sensor incl. DALI PSU e-Sense Organic G3External sensor incl. DALI PSU, suspended, 3.2 m cable86411
External sensor incl. DALI PSU e-Sense Organic G3External sensor incl. DALI PSU, recessed, 3.2 m cable86410
