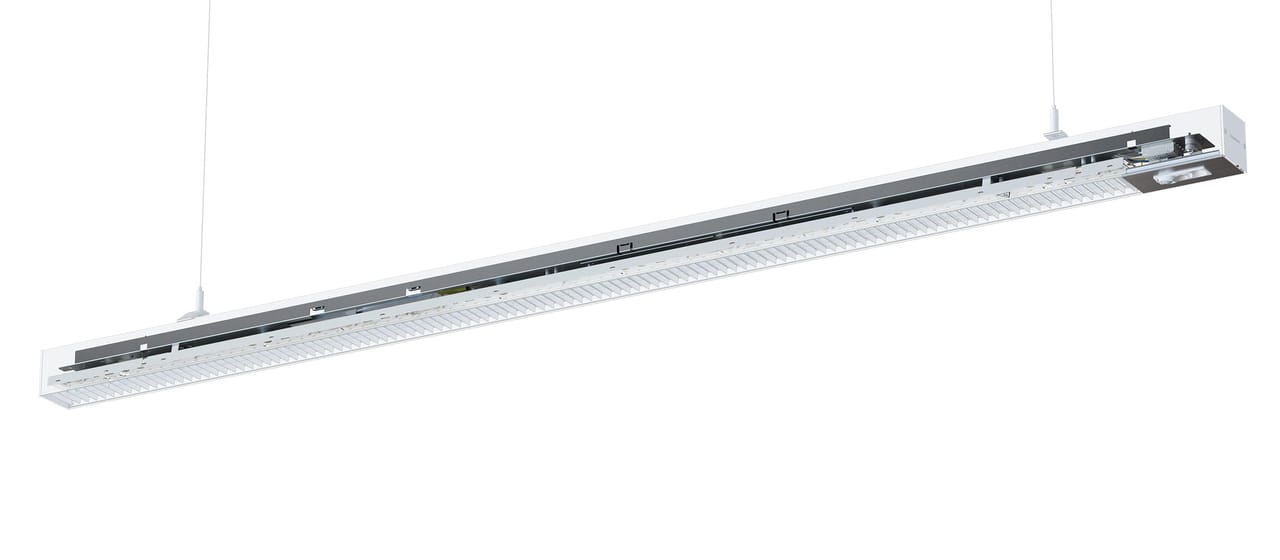

13195-20008 Notor G2 ReLight kit

Module

1500

Light distribution

Direct

Louvre

Lamell

Lumen output

2418

CLO function active

Yes

CLO time, h

100000

lm/W

101

CCT, K

3000

CRI

80

SDCM

3

Melanopic DER

0.450

Lumen maintenance 100 000 h

L100

LED driver, h/max failure %

100000/10

Energy class, LED module

C

PstLm

0.180

SVM

0.020

Light control

Organic Response

Driver brand

Philips

Power on last level

Yes

AM

Yes

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

0, 50, 60

Protective class

1

IP rating

20

Start W

24

End W

28

Average W

26

Stand by W

1

Min. ambient temperature, °C

0

Max. ambient temperature, °C

25

MCB B10A, pcs

15

MCB B16A

24

MCB C10A

24

MCB C16A

40

THD, %

12

Surge protection CM, kV/kA

2

Surge protection DM, kV/kA

1

Leakage current PE

0.500

Power factor, 100 %

0.97

Length, mm

1590

Width, mm

57

Height, mm

65

Weight, kg

2.000
