73391 Kaskad Flex
Documents
Specification
84368Design
Light distribution
Medium Beam
Beam angle, °
38
Colour
White
Light data & performance
Lumen output
988
lm/W
96
CCT, K
3000 BBBL
CRI
90
SDCM
3
Lumen maintenance 50 000 h
L95
Lumen maintenance 75 000 h
L94
Lumen maintenance 100 000 h
L93
LED driver, h/max failure %
100000/10
Energy class, LED module
E
Controls & connectivity
Driver brand
Tridonic
ZD4i Certified
False
Daylight functionality
False
Electricity & enclosure
Rated supply voltage, V
220-240
Mains frequency, Hz
0, 50, 60
Protective class
1
IP rating
20
System Wattage
10
Min. ambient temperature, °C
-25
Max. ambient temperature, °C
25
MCB B10A, pcs
23
MCB B16A
37
MCB C10A
38
MCB C16A
61
THD, %
15
Surge protection CM, kV/kA
2
Surge protection DM, kV/kA
1
Power factor, 100 %
0.89
Dimensions
Height, mm
95
Diamater, mm
110
Weight, kg
0.400
Dimensions
Light distribution
Kaskad

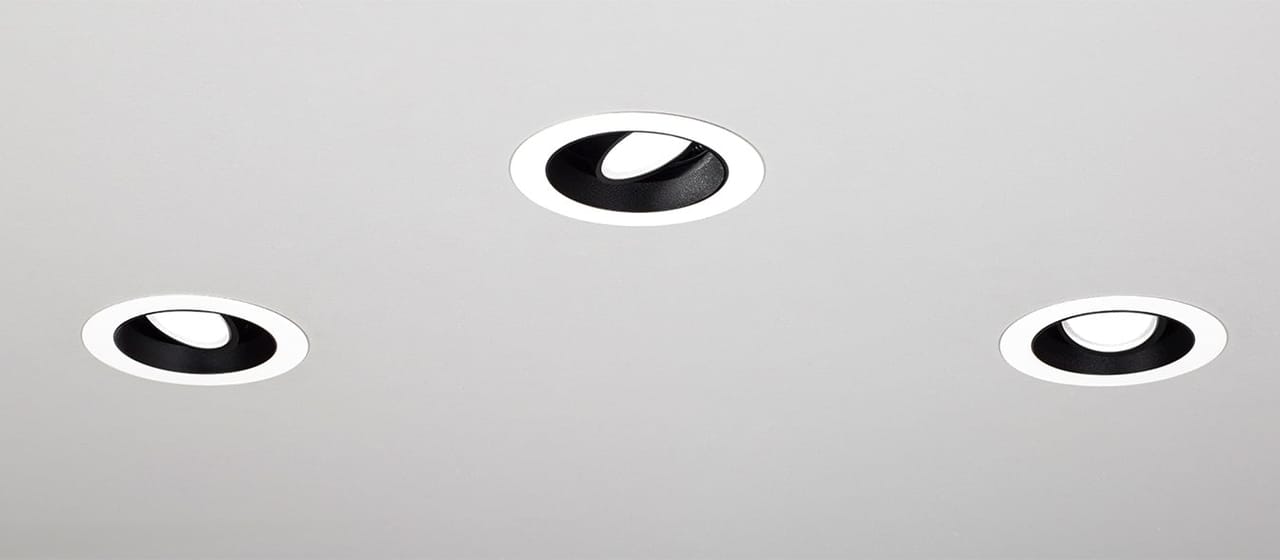

Kaskad is an elegant lighting solution ideal for front-of-house environments such as lounges, hotel lobbies and entrance halls. The distinct trim ring, combined with the black baffle, creates an architecturally exciting solution...
More about the family Kaskad
