Itza Delta
16118 Itza 16118
A suspended workplace luminaire that produces direct/indirect light. Delta louvres with direct light provide high efficiency and optimal lighting comfort.
Installation
Wire suspended via friction locks secured to the luminaire. Wire suspension ordered separately, see Accessories.
Connection
Single – Connections are made at the end of the luminaire and are concealed by the end-cap. 5-way snap-in terminal block at one end. Continuous installation – 5-way snap-in terminal block at each end and through-wiring cable 3⊗1.5 mm² as standard. With dimming, 5-way snap-in terminal block, 1-phase through-wiring possible.
Design
Luminaire body of sheet steel, white (RAL 9016) or alu-grey (RAL 9006) finish, end-caps in polycarbonate. Other colours on request, see example. The top is covered by an active film which generates a broad light pattern and which works as a dust cover. When continuous installation is required the luminaire is supplemented with continuous couplers and end-caps, see the accessory page.
Louvre
Delta – microprism louvre in acrylic (PMMA.
Reflector
The louvre act as a reflector.
Dimming
e-Sense Active – PIR sensor with presence and daylight control via DALI.
Organic Response – PIR sensor with presence and daylight control. All luminaires act as master/slave with IR communication.
Miscellaneous
Luminaires with Tunable White (2700-6500 K, CRI 90 are equipped with DALI device Type 8 driver and are listed as 4000 K in the table.
Ra (CRI) 90 on request.
Media

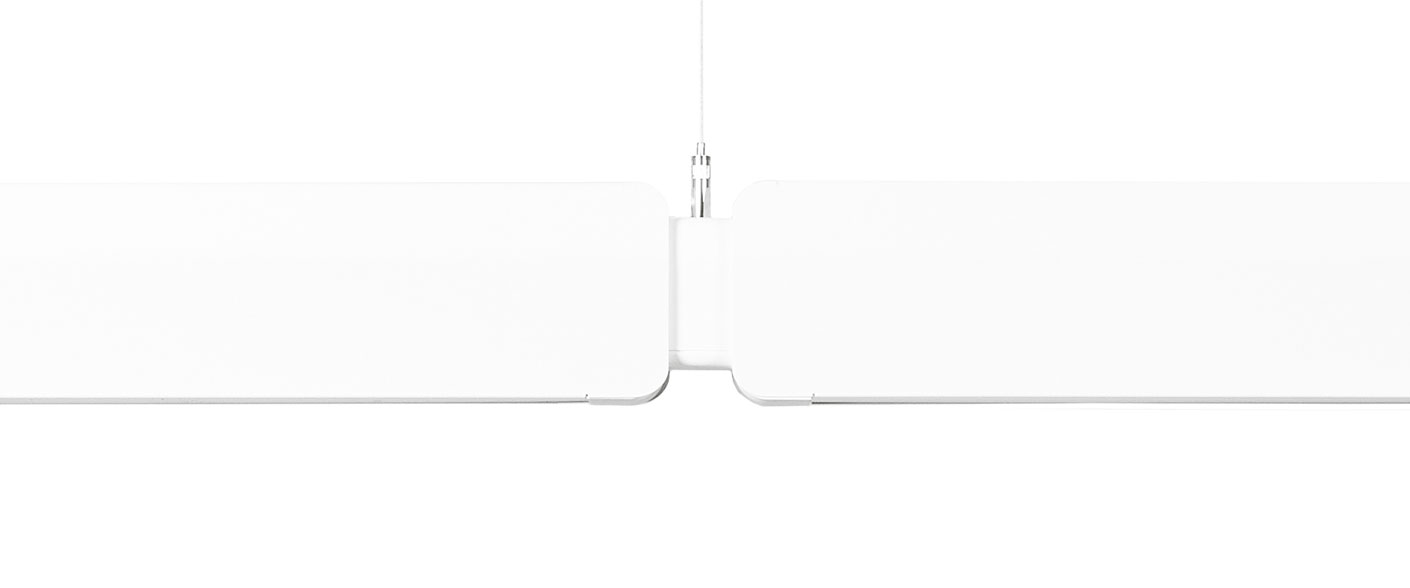

Itza is suitable for continuous installation.
The end-caps can be supplied in different colours on request.
Installation clips
Organic Response – How it works
Itza
Itza is a new, sustainable approach to lighting. A future-proof LED luminaire, equipped with the latest louvre technology and developed to reduce environmental impact and operating costs.
With Itza we have stripped back all the ...
More about the family ItzaOther products
Document
Specification
Loading...
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |
|
End-cap for continuous lighting installation | End-cap, grey/pair | 94771 |
|
End-cap for continuous lighting installation | End-cap, white/pair | 94770 |
|
|
End-cap for continuous lighting installation | End-cap, white/pair for sensor | 94772 |
|
|
End-cap for continuous lighting installation | End-cap, grey/pair for sensor | 94773 |
|
Support rail (cat. no./pair) | L=600/650, section: 15, max. load: 75N/pair | 90015 |
|
|
Support rail (cat. no./pair) | L=600/625, section: 25, max. load: 75N/pair | 94067 |
|
Wire suspension for support rails L: 1,5m | Wire suspension for support rails 90015, 90016, 90017, 94052, 94067, 94068 | 91426 |
|
|
Support rail (cat. no./pair) | L=200/1250, section: 15, max. load: 120/30N/pair | 90016 |
|
|
Support rail (cat. no./pair) | L=1200/1250, section: 25, max. load: 120/30N/pair | 94068 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, transparent mains cable (96382+96390) | 95355 |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, white mains cable/each | 96388 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96388) | 95356 |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup, white mains cable/each | 96374 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96376) | 95364 |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup, transparent mains cable/each | 96378 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96379) | 95365 |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, transparent mains cable/each | 96379 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large, white mains cable (96370+96374) | 95362 |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, white mains cable/each | 96376 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96391) | 95353 |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large round ceiling cup, white mains cable/each | 96386 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96379) | 95361 |
|
Wire suspension for continuous installation L: 1,4m | Large round ceiling cup for T-bars 25 mm/each | 96385 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large, transparent mains cable (96370+96378) | 95363 |
|
Wire suspension for continuous installation L: 1,4m | Large square ceiling cup for T-bars 25 mm/each | 96373 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96376) | 95360 |
|
Wire suspension for continuous installation L: 1,4m | Small round ceiling cup/each | 96382 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, transparent mains cable (96371+96378) | 95359 |
|
Wire suspension for continuous installation L: 1,4m | Large square ceiling cup/each | 96371 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, white mains cable (96371+96374) | 95358 |
|
Wire suspension for continuous installation L: 1,4m | Small round ceiling cup for T-bars 25 mm/each | 96384 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96391) | 95357 |
|
Wire suspension for continuous installation L: 1,4m | Small square ceiling cup for T-bars 25 mm/each | 96372 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96388) | 95352 |
|
Wire suspension for continuous installation L: 1,4m | Small square ceiling cup/each | 96370 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, white mains cable (96383+96386) | 95350 |
|
Wire suspension for continuous installation L: 1,4m | Large round ceiling cup/each | 96383 |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large round ceiling cup, transparent mains cable/each | 96390 |
|
Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, transparent mains cable/each | 96391 |
|
Continuous coupler | Continuous coupler including 3 friction locks, grey/each | 94778 |
|
Continuous coupler | Continuous coupler including 3 friction locks, white/each | 94777 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, transparent mains cable (96383+96390) | 95351 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, white mains cable (96382+96386) | 95354 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96389) | 95372 |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup, white mains cable/each | 96387 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96381) | 95381 |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, transparent mains cable/each | 96393 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96377) | 95380 |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup for T-bars 25 mm, white mains cable/each | 96389 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large, transparent mains cable (96370+96380) | 95379 |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup, white mains cable/each | 96375 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large, white mains cable (96370+96375) | 95378 |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup, transparent mains cable/each | 96380 |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, transparent mains cable/each | 96381 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96381) | 95377 |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large square ceiling cup for T-bars 25 mm, white mains cable/each | 96377 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96377) | 95376 |
|
|
Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m | Large round ceiling cup, transparent mains cable/each | 96392 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, transparent mains cable (96371+96380) | 95375 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, white mains cable (96371+96375) | 95374 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96389) | 95368 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96393) | 95373 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, white mains cable (96382+96387) | 95370 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, transparent mains cable (96383+96392) | 95367 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, transparent mains cable (96382+96392) | 95371 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, white mains cable (96383+96387) | 95366 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96393) | 95369 |
|
Ceiling bracket in chrome with wire | Wire suspension with ceiling bracket in chrome, L=1.5 m/pair | 91696 |
|
Cutters | Cutters, each | 94248 |
|
Remote control | Remote control e-Sense Active | 86415 |
|
Programming remote control e-Sense Active | Programming remote control | 86414 |
|
Organic Response I/O box | I/O box with potential-free 16A relay for controlling external units. | 86413 |
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, recessed, 1 m cable | 86407 |
|
Organic Response IoT Gateway | Gateway for connection to Organic Response Portal. Incl. power adapter and wall bracket. Controls a maximum of 150 sensors. | 86296 |
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, surface mounted, 1 m cable | 86408 |
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, suspended pipe conduit installation, 1 m cable. pipe not included. | 86409 |
|
|
External Organic Response sensor incl. DALI PSU | Extern sensor incl. DALI PSU, suspended pipe conduit installation, 3.2 m cable. Pipe not included. | 86412 |
|
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, surface mounted, 3.2 m cable | 86411 |
|
|
External Organic Response sensor incl. DALI PSU | External sensor incl. DALI PSU, recessed, 3.2 m cable | 86410 |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 2 function push button panel, white | 86416 |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 4 function push button panel, white | 86417 |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 4 function push button panel, labeled, white | 86437 |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 2 function push button panel, labeled, white | 86436 |
|
|
Organic Response I/O box | I/O box with potential-free 8A relay for controlling external units. | 86433 |
