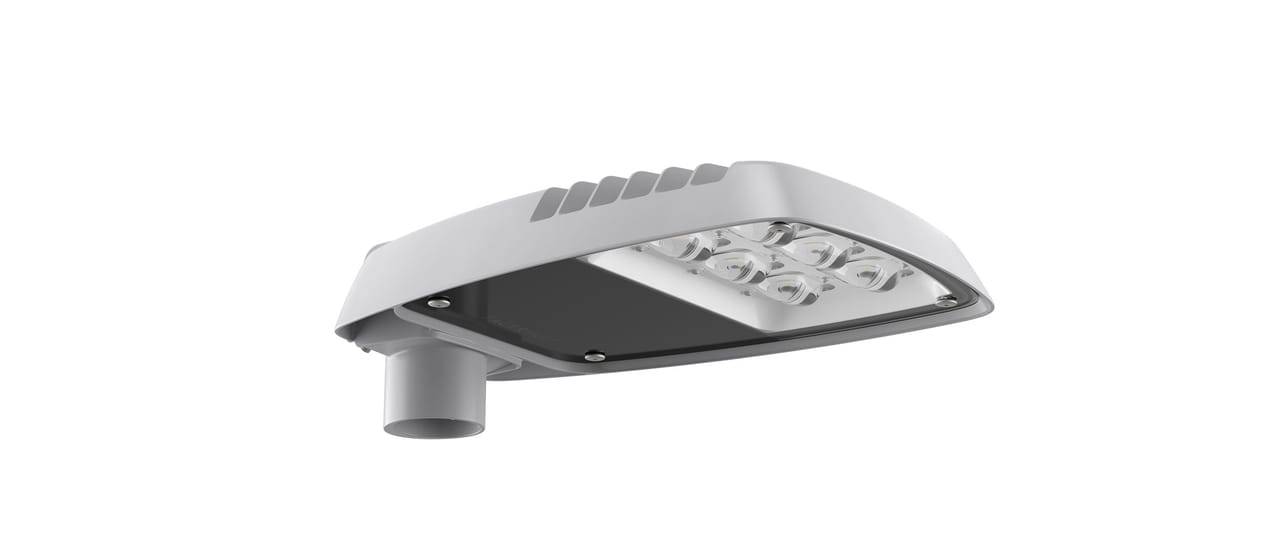

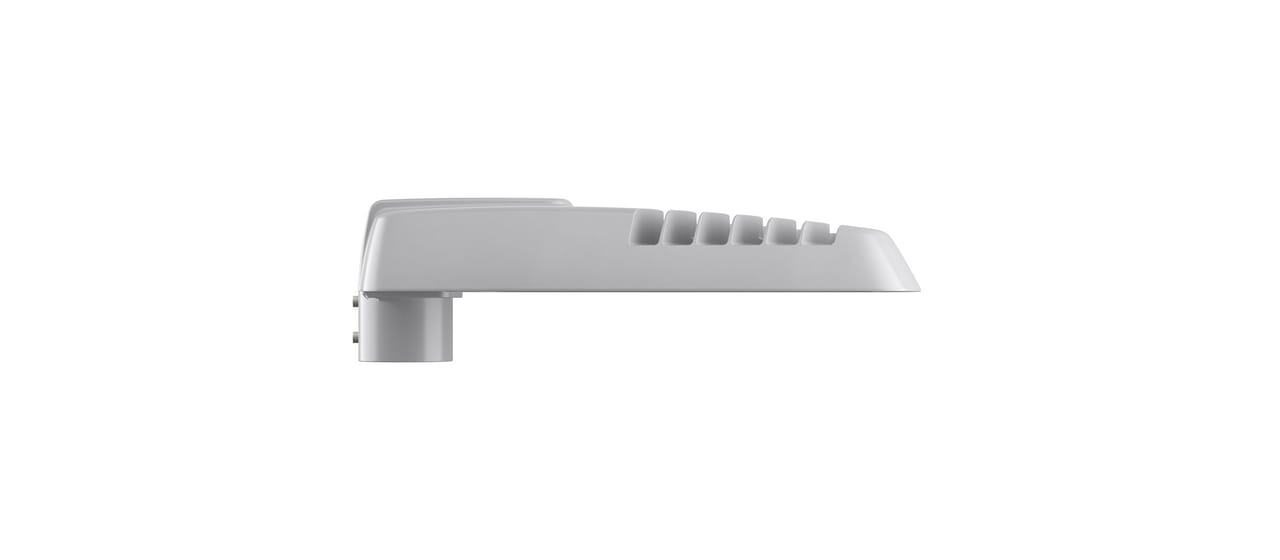

550500-35529 Evolume 75
Documents
Specification
100393Design
Light distribution
Direct
No. of LEDs
2
Lens
L11
Colour
Grey
Light data & performance
Lumen output
1200
CLO function active
Yes
CLO time, h
100000
lm/W
136
Light source colour
740
CCT, K
4000
CRI
70
SDCM
5
Lumen maintenance 100 000 h
L100
LED driver, h/max failure %
100000/10
Energy class, LED module
D
Controls & connectivity
Driver brand
Philips
AM
Yes
ZD4i Certified
False
Daylight functionality
False
Electricity & enclosure
Rated supply voltage, V
220-240
Mains frequency, Hz
50, 60
Protective class
1
IP rating
66
IK rating
09
Start W
9
End W
9
Average W
9
Min. ambient temperature, °C
-40
Max. ambient temperature, °C
25
MCB B10A, pcs
30
MCB B16A
48
MCB C10A
49
MCB C16A
81
THD, %
14
Surge protection CM, kV/kA
10
Surge protection DM, kV/kA
6
Power factor, 100 %
0.85
Projected wind area, m2
0.294
Dimensions
Length, mm
470
Width, mm
295
Height, mm
77
Weight, kg
6.400
Dimensions
Light distribution
Evolume
Good road and street lighting contribute, among other things, to increased traffic safety, a perceived safer environment and the creation of an attractive and pleasant atmosphere – even outdoors. Fagerhult has taken this into...
More about the family Evolume
