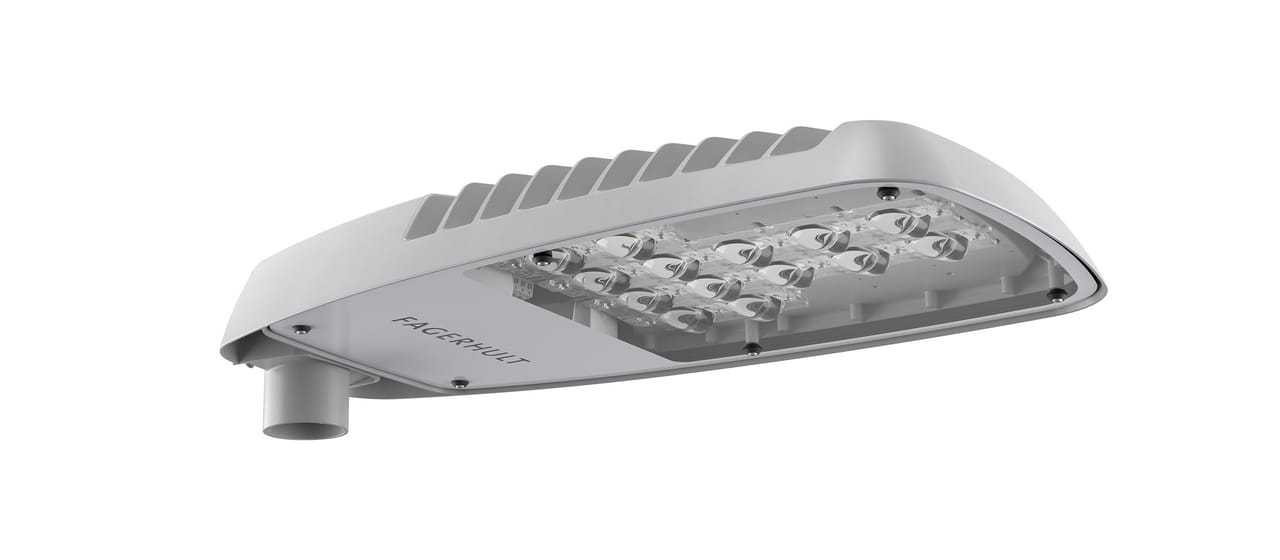

550500-22934 Evolume 2
Documents
Specification
86213Design
Light distribution
Direct
No. of LEDs
14
Lens
E9
Colour
Grey
Light data & performance
Lumen output
6100
CLO function active
Yes
CLO time, h
100000
lm/W
156
Light source colour
740
CCT, K
4000
CRI
70
SDCM
5
Lumen maintenance 100 000 h
L100
Lumen maintenance L100 B50, h
100000
LED driver, h/max failure %
100000/10
Energy class, LED module
D
Controls & connectivity
Driver brand
Philips
AM
Yes
ZD4i Certified
False
Daylight functionality
False
Electricity & enclosure
Rated supply voltage, V
220-240
Mains frequency, Hz
50, 60
Protective class
1
IP rating
66
IK rating
08
Start W
39
End W
41
Average W
40
Min. ambient temperature, °C
-40
Max. ambient temperature, °C
25
MCB B10A, pcs
6
MCB B16A
10
MCB C10A
10
MCB C16A
17
THD, %
17
Surge protection CM, kV/kA
10
Surge protection DM, kV/kA
6
Power factor, 100 %
0.93
Corrosion class
C4 15år
Projected wind area, m2
0.053
Dimensions
Length, mm
790
Width, mm
398
Height, mm
94
Weight, kg
13.500
Dimensions
Light distribution
Evolume
Good road and street lighting contribute, among other things, to increased traffic safety, a perceived safer environment and the creation of an attractive and pleasant atmosphere – even outdoors. Fagerhult has taken this into...
More about the family Evolume
