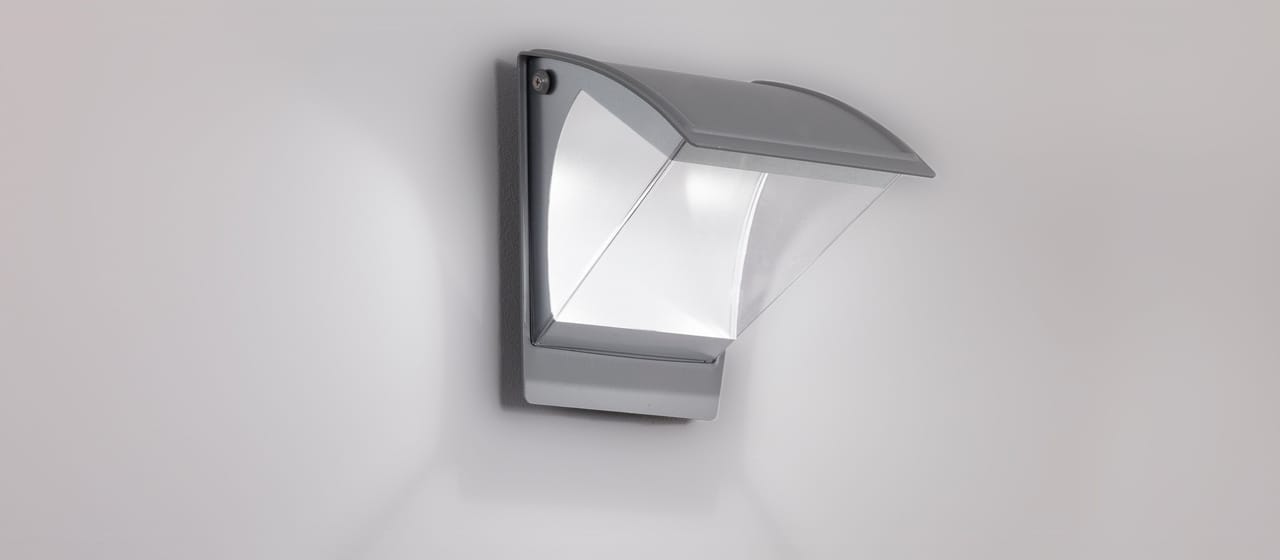

65703 Vik

Diffuser

Clear

Lumen output

1975

lm/W

145

Light source colour

840

CCT, K

4000

CRI

80

SDCM

3

Melanopic DER

0.620

Lumen maintenance 50 000 h

L95

Lumen maintenance 75 000 h

L93

Lumen maintenance 100 000 h

L92

LED driver, h/max failure %

100000/10

Energy class, LED module

E

Driver brand

Tridonic

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

0, 50, 60

Protective class

1

IP rating

44

IK rating

08

System Wattage

14

Min. ambient temperature, °C

-25

Max. ambient temperature, °C

25

MCB B10A, pcs

19

MCB B16A

31

MCB C10A

31

MCB C16A

51

THD, %

8

Surge protection CM, kV/kA

2

Surge protection DM, kV/kA

1

Power factor, 100 %

0.94

Length, mm

225

Width, mm

220

Height, mm

244

Weight, kg

2.200
