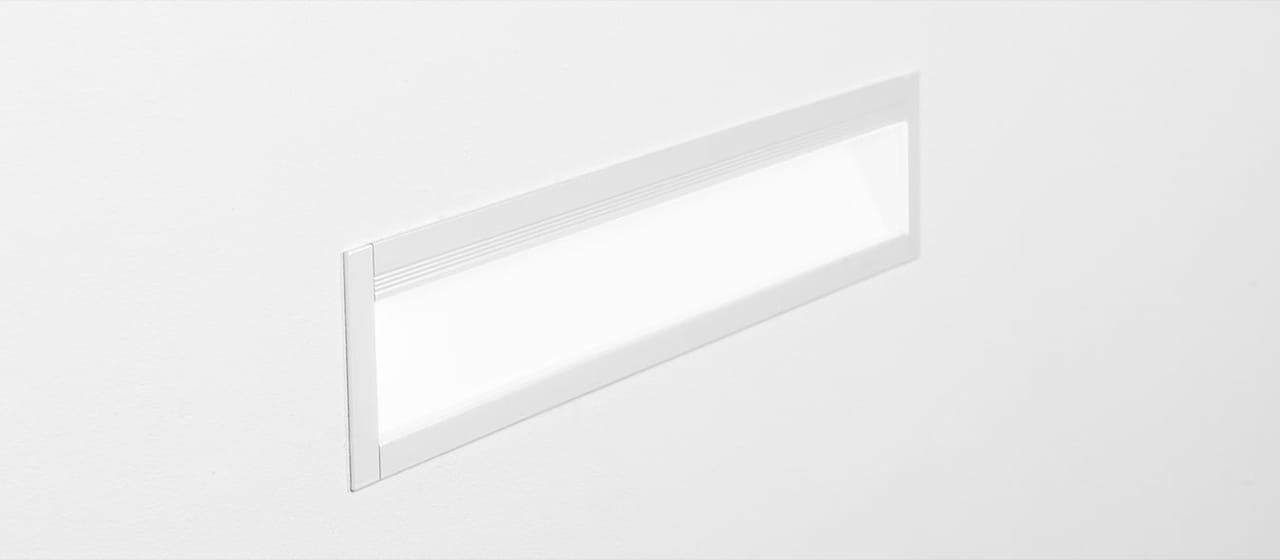

74616-402 Aluflex 600

Light distribution

Asymmetrical

Colour

White

Lumen output

2678

CLO function active

Yes

CLO time, h

100000

lm/W

113

CCT, K

4000

CRI

90

SDCM

3

Melanopic DER

0.650

Lumen maintenance 50 000 h

L100

LED driver, h/max failure %

100000/10%

Energy class, LED module

C

PstLm

1.000

SVM

0.400

Light control

DALI/Phase-pulse

Driver brand

Tridonic

DALI generation/adress type

Dali-2/1xDT6

Power on last level

Yes

Corridor function

Yes

Switch control, max no.

25

AM

Yes

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

0, 50, 60

Protective class

1

IP rating

20

Start W

24

End W

26

Average W

25

Stand by W

0.15

Min. ambient temperature, °C

-25

Max. ambient temperature, °C

25

MCB B10A, pcs

13

MCB B16A

21

MCB C10A

21

MCB C16A

35

THD, %

6

Surge protection CM, kV/kA

2

Surge protection DM, kV/kA

1

Leakage current PE

0.300

Power factor, 100 %

0.91

Length, mm

604

Width, mm

97

Height, mm

63

Weight, kg

1.500
