Streamer MiniRecessed

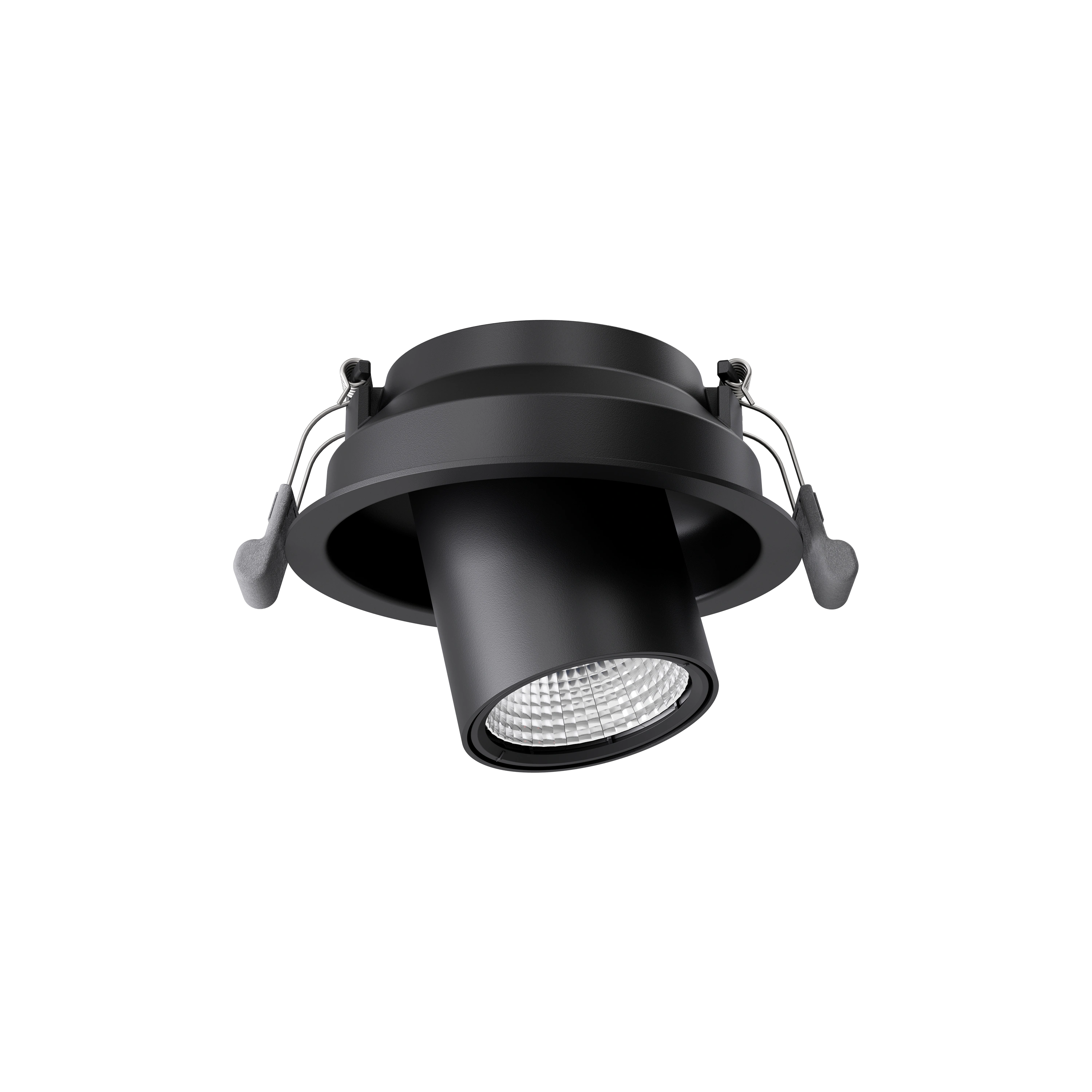

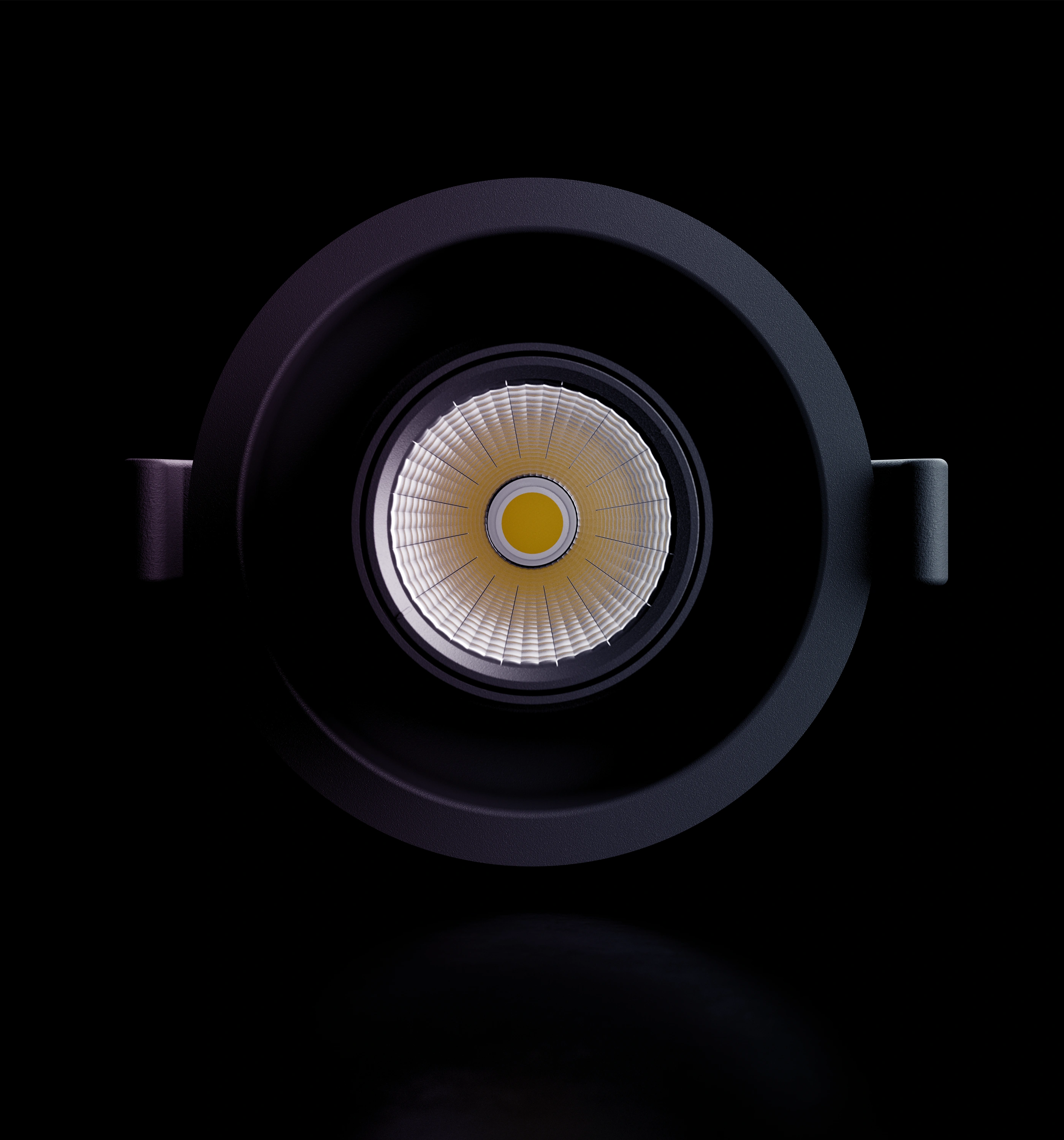

Streamer is a family of spotlights offering high efficiency and colour rendering for dynamic retail environments. Streamer Mini Recessed is a compact spotlight for recessed ceilings.
Streamer MiniRecessed
Streamer is a family of spotlights offering high efficiency and colour rendering for dynamic retail environments. Streamer Mini Recessed is a compact spotlight for recessed ceilings.
Installation
Luminaire for recessed mounting in suspended ceilings. A mounting plate must be used when mounting on soft tile ceilings. See Accessories. For loads in the suspended ceiling system, follow the selected suspended ceiling supplier’s recommendation. Do not cover with insulation. For detailed information, see the installation instructions.
Connection
The luminaire body and driver are interconnected with a quick connection system. Luminaire body Class III.
Design
Aluminium luminaire housing, made of 99% post-consumer recycled material. White (RAL 9016) or black (RAL 9017) structured lacquer. Rotatable 360°, tiltable 55°.
Light Distribution

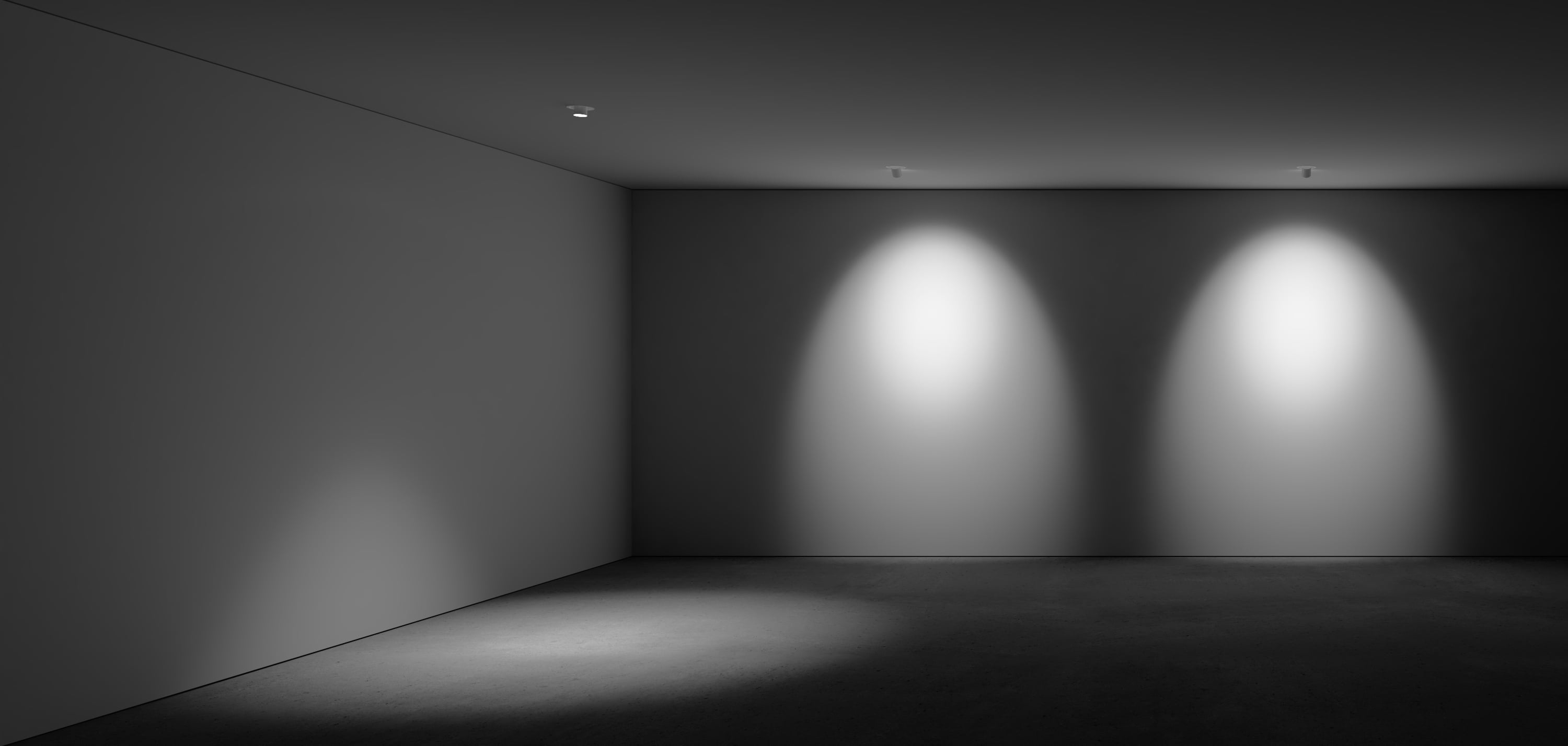

Narrow, medium or wide beam.
Light data
Optics

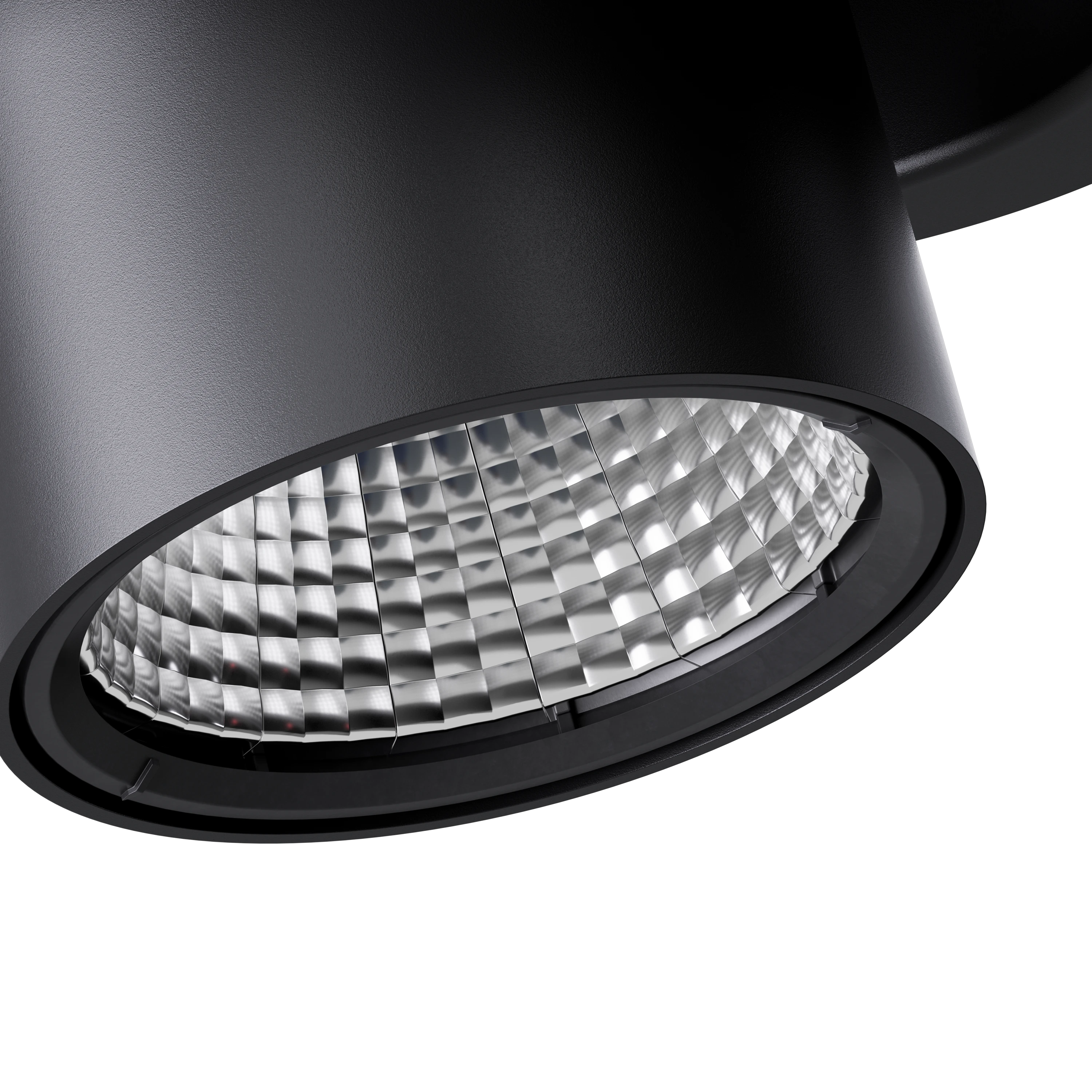

Segmented MIRO reflector.
Made of recycled aluminium
The product contains die-cast aluminium, a material that in our products consists of approximately 85% recycled content. By using recycled aluminium, energy consumption is reduced by up to 95% compared to virgin aluminium (Source: European Aluminium). This entails a significantly lower carbon footprint.
Minimised design
The luminaire’s minimised design, with its high luminous efficacy, means that less material is used in manufacturing. This contributes to a low climate impact and more efficient use of resources compared to traditional, larger luminaires, without compromising on function or light quality.
Optimised packaging
Multiple products can be packaged together, reducing the amount of packaging material and cutting resource use and climate impact in both production and transportation. This makes the logistics more efficient and simplifies the handling and recycling of the packaging, as fewer types of material are used.
On/Off
Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.
Articles
| Art.no. | System Wattage | Lumen output | CCT, K | CRI | Colour | Diameter, mm | Dimensions, mm | Light distribution | Light control | Miscellaneous | Light data files | Article PDF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 58796 | 8 | 1369 | 3000 BBBL | 90 | White | 142 | 170x142x110 | Narrow Beam, 24° | On/off | LL |
|
|
| 58797 | 8 | 1340 | 3000 BBBL | 90 | White | 142 | 170x142x110 | Medium Beam, 29° | On/off | LL |
|
|
| 58798 | 8 | 1372 | 3000 BBBL | 90 | White | 142 | 170x142x110 | Wide Beam, 41° | On/off | LL |
|
|
| 58799 | 8 | 1369 | 3000 BBBL | 90 | Black | 142 | 170x142x110 | Narrow Beam, 24° | On/off | LL |
|
|
| 58800 | 8 | 1340 | 3000 BBBL | 90 | Black | 142 | 170x142x110 | Medium Beam, 29° | On/off | LL |
|
|
| 58801 | 8 | 1372 | 3000 BBBL | 90 | Black | 142 | 170x142x110 | Wide Beam, 41° | On/off | LL |
|
|
| 58802 | 18 | 2721 | 3000 BBBL | 90 | White | 142 | 170x142x110 | Narrow Beam, 24° | On/off | HL |
|
|
| 58803 | 18 | 2665 | 3000 BBBL | 90 | White | 142 | 170x142x110 | Medium Beam, 29° | On/off | HL |
|
|
| 58804 | 18 | 2727 | 3000 BBBL | 90 | White | 142 | 170x142x110 | Wide Beam, 41° | On/off | HL |
|
|
| 58805 | 18 | 2721 | 3000 BBBL | 90 | Black | 142 | 170x142x110 | Narrow Beam, 24° | On/off | HL |
|
|
| 58806 | 18 | 2665 | 3000 BBBL | 90 | Black | 142 | 170x142x110 | Medium Beam, 29° | On/off | HL |
|
|
| 58807 | 18 | 2727 | 3000 BBBL | 90 | Black | 142 | 170x142x110 | Wide Beam, 41° | On/off | HL |
|
| Name | Description | Art.no. | Article PDF | |
|---|---|---|---|---|
|
Mounting plate | Mounting plate Ø125 | 41681 |
