Pleiad G4 Wallwasher
22735 Pleiad G4 22735

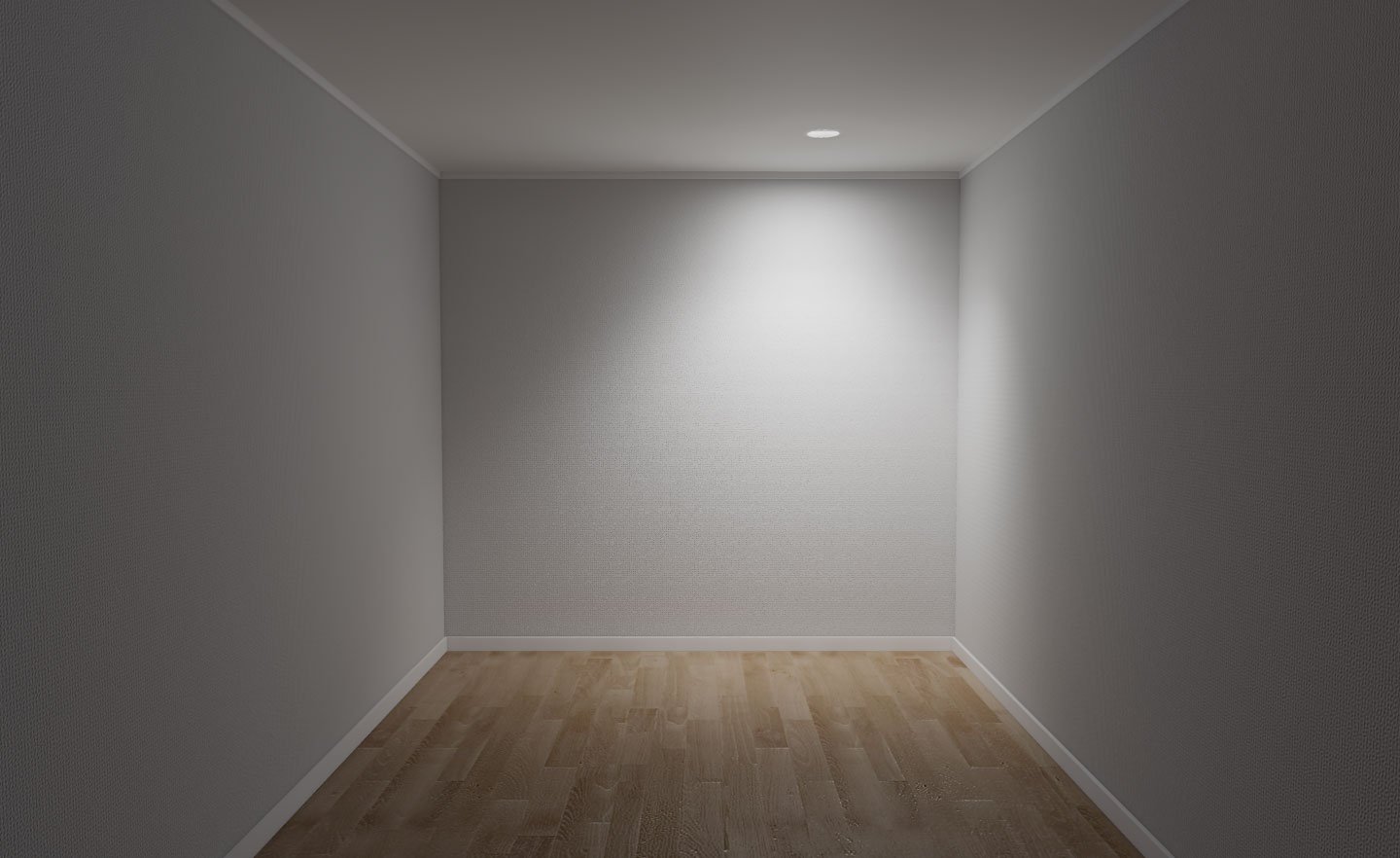

An efficient, asymmetrical downlight for illuminating walls with a light that reaches all the way up to the corner of the ceiling. With several luminous fluxes and reflector options, G4 Wallwasher is also available with Tunable White and RGB/W.
Installation
Recessed mounting in unventilated or ventilated suspended ceilings. Separate driver and installation clip for easy and tool-free installation supplied as standard. An assembly plate must be used when mounting on soft tile ceilings, , see accessories. For detailed information, see the installation instructions.
Connection
Connection in separate driver box. Snap-in terminal block 3x1.5 mmm² (x2), onward connection possible. 5x1.5 mm² (x2) when dimming. Can also be supplied with chassis mounted snap-in connector in the ballast where a T-splitter or mains cable and plug are possible. The luminaire body and driver are interconnected with a snap-in connector.
Design
Luminaire body in cast aluminium and white PBT-plastic. Visible reflector ring in white PBT plastic (RAL 9003).
Reflector
Metallised PBT in bright and matt aluminium. The reflector has a protective coat of scratch-resistant clear lacquer.
Miscellaneous
The luminaire is supplied with dust protection over the light opening. IP 20. Luminaire body Class III. The supplied driver must be connected to the protective earth.
Luminaires with Tunable White (2700 – 6500 K) are equipped with driver DALI Device type 8.
Luminaires with RGB/W are equipped with driver DALI Device type 6 (4 addresses / luminaire). Also available for DMX on request.
For loads in the suspended ceiling system, follow the selected suspended ceiling supplier’s recommendation.
CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life."
Media
Pleiad G4 – Installation
Pleiad G4
Pleiad G4 is the latest evolution of Fagerhult's classic downlight series. Even more efficient. Even better visual comfort. Even quicker to install.
Pleiad G4 simplifies and streamlines advanced lighting planning for entire...
More about the family Pleiad G4
Document
Customise with Fagerhult Configure
Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.
- Adapt and optimise the luminaire
- Download unique data sheet and light data files
- To order, contact your sales representative
Specification
Loading...
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |
|
Wieland T-connector | Wieland 5-way T-connector | 91026 |
|
Wieland T-connector | Wieland 3-way T-connector | 91025 |
|
Mounting plate | Mounting plate | 41956 |
|
Retrofit kit | Retrofit kit Ø 165–270 mm | 41339 |
|
Input unit, Tridonic | DALI XC | 86132 |
|
Mounting plate | Mounting plate 625 with deflector. Adapted for downlights with recess dimensions Ø 165 | 41933 |
|
|
Mounting plate | Mounting plate 600 with deflector. Adapted for downlights with recess dimensions Ø 165 | 41932 |
|
Mounting plate | Mounting plate HB. Adapted for downlights with recess dimensions Ø 165. For 38 mm support rail. | 41655 |
|
Mounting plate and support bars | 625 mm | 41959 |
|
|
Mounting plate and support bars | 600 mm | 41958 |
|
Control panels, Lunatone | DALI Switch Cross | 86354 |
|
WAGO connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 91244 |
|
WAGO connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 91243 |
|
Wieland connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 92793 |
|
WAGO T-connector | WAGO T-Connector, 3-way, white | 91067 |
|
WAGO T-connector | WAGO T-connector, 5-way, 2 locking levers, blue | 88228 |
|
Wieland connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 92799 |
|
Ensto connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm². Halogen free. | 92786 |
|
|
Ensto connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm². Halogen free. | 92785 |
|
|
Ensto power cable | Length 2.0 m with female (without hooks) and male connectors, 5x1,5 mm². Halogen free. | 92788 |
|
Ensto T-connector | Ensto T-connector 3-way, white | 92783 |
|
Ensto T-connector | Ensto T-connector 5-way, grey | 92784 |
|
|
Ensto power cable | Length 2.0 m with female (without hooks) and male connectors, 3x1,5 mm². Halogen free. | 92787 |
