Surface mounted downlights with integrated option for surface-mounted cable. Available with several reflector and light distribution options.
Surface mounted installation. Installation section with two securing holes. See accessories for suspended installation.
3-way snap-in terminal block 2.5 mm², onward connection possible. With dimming, 5-way snap-in terminal block, onward connection possible. Luminaire housing and installation section are connected with the internal snap-in connector. Cable entry from the top of the luminaire or from the side. Bayonet attachment of luminaire housing in two heights permits entry of the surface mounted cable from 3 directions.
Aluminium luminaire body in white (RAL 9016). Installation section of white plastic (PA).
Reflector of matt anodised aluminium, white (RAL 9003) or black (RAL 9005) finish. Lens of clear acrylic.
Luminaires with Tunable White (2700-6500) are equipped with driver DALI device type 8. CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.
Pleiad G4 is the latest evolution of Fagerhult's classic downlight series. Even more efficient. Even better visual comfort. Even quicker to install. Pleiad G4 simplifies and streamlines advanced lighting planning for entire...More about the family Pleiad G4
Customise with Fagerhult Configure
Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.
- Adapt and optimise the luminaire
- Download unique data sheet and light data files
- To order, contact your sales representative
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
|Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m||Large round ceiling cup for T-bars 25 mm, white mains cable/each||96388|
|Wire suspension for continuous installation, 3x0.75 mm² L: 1,4m||Large round ceiling cup, white mains cable/each||96386|
|Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m||Large round ceiling cup, white mains cable/each||96387|
|Wire suspension for continuous installation, 5x0.75 mm² L: 1,4m||Large round ceiling cup for T-bars 25 mm, white mains cable/each||96389|

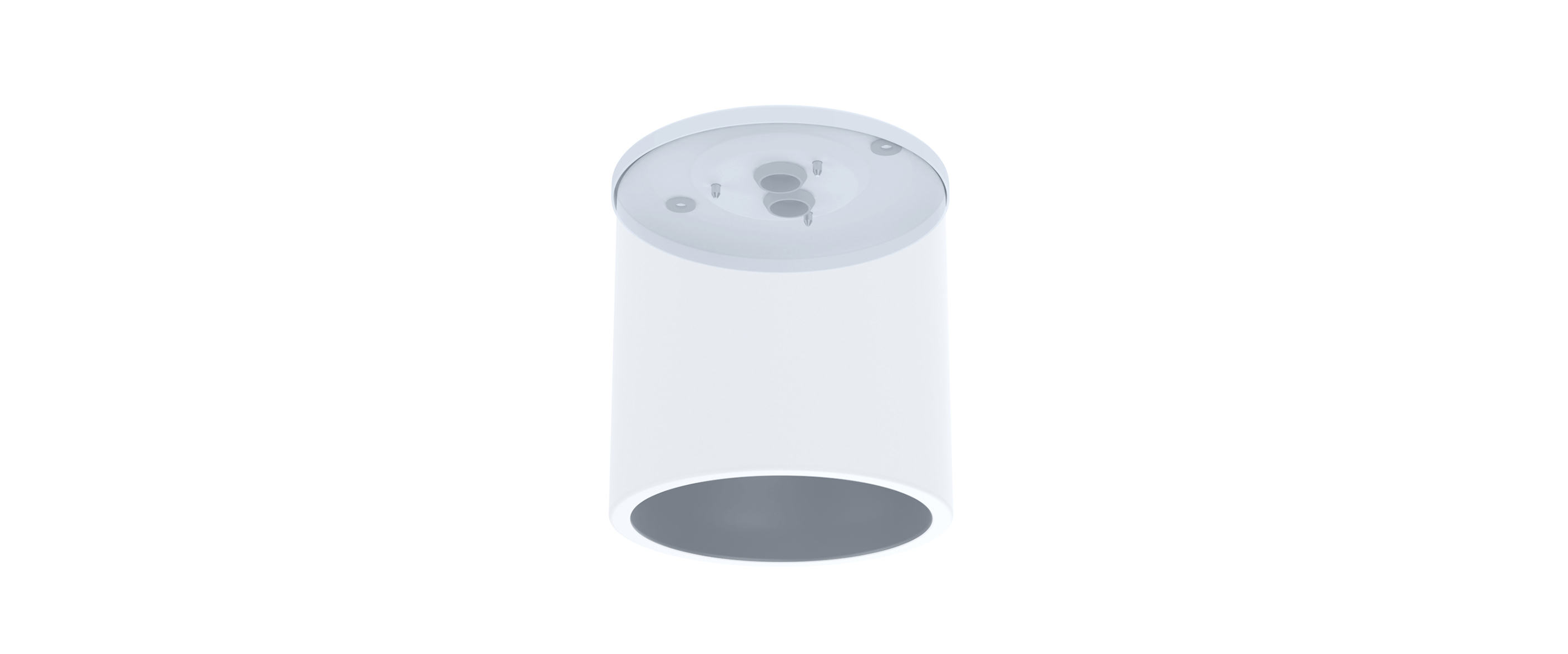

|Cover plate IP 23||Cover plate IP 23, Ø168||41058|

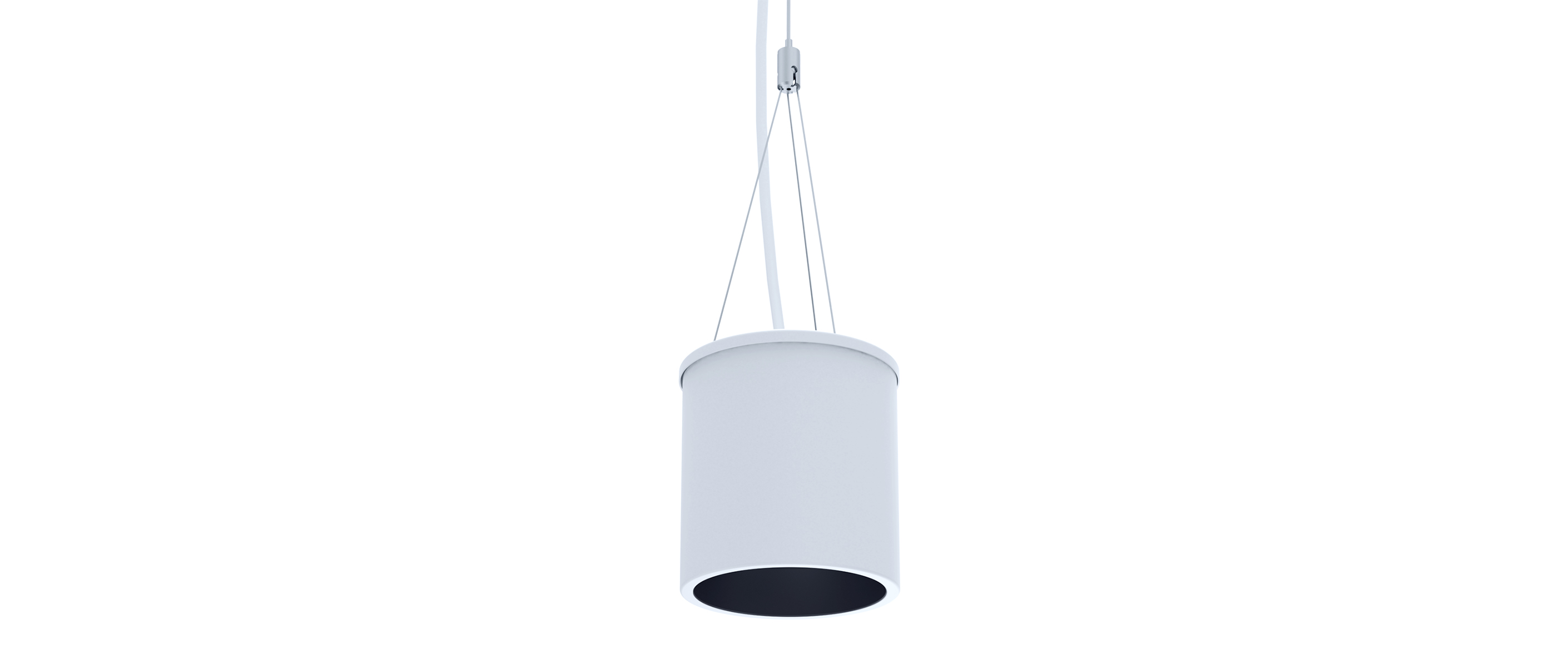

|Cable pendant||Ø 168 Cable pendant. Supplemented with wire suspension, ordered separately.||41055|

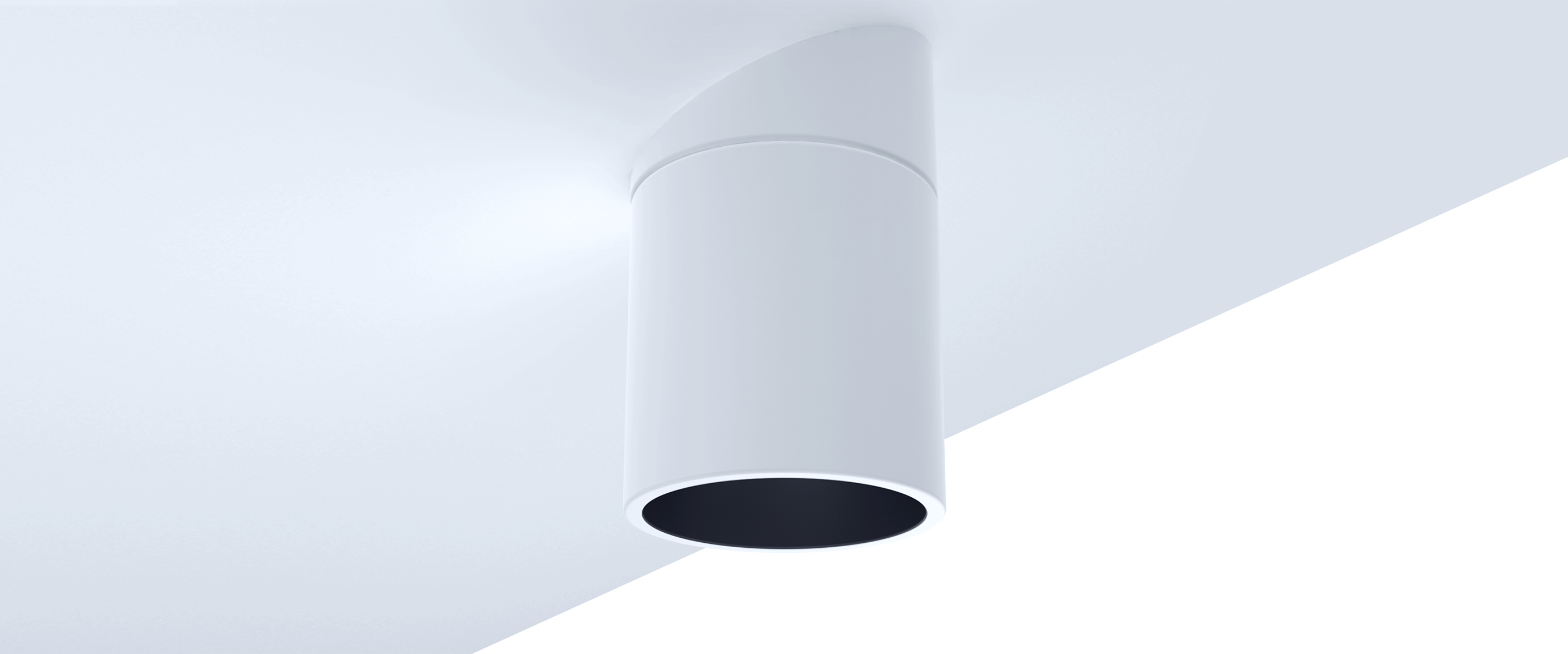

|Sloping ceiling cylinder||Sloping ceiling cylinder Ø 168||41054|
