Nove

BIMobject See items

A decorative luminaire available in three sizes for ceiling or wall mounting in e.g. general areas, entrances and stairwells. The luminaire can be used with or without decor ring.

Installation

For ceiling or wall mounting.
Ø520 mm – three securing holes.
Ø360/420 mm – two securing holes.
Installation in ceilings with decor ring - IP44
Without decor ring - IP41
Permanent wall mounting - IP40.

Connection

Connects with 230 V; built-in LED driver. Snap-in terminal block 1.5 mm², 1-phase through-wiring possible. Two cable entries on top of the luminaire and two cable entries on the side. Surface mounted mains cable possible 180°.

Design

Luminaire body of sheet steel finished in matt white (RAL 9016). Opal matt acrylic diffuser.
Decor ring in white (RAL 9016), sand (RAL 1019) and azurite (RAL 5008).

Louvre

Opal acrylic diffuser (PMMA).

Reflector

The mounting plate acts as a reflector.

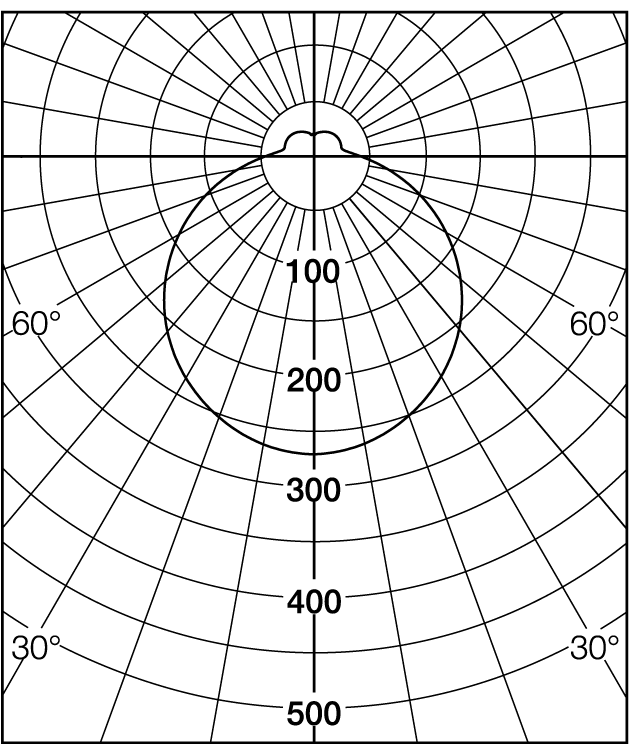

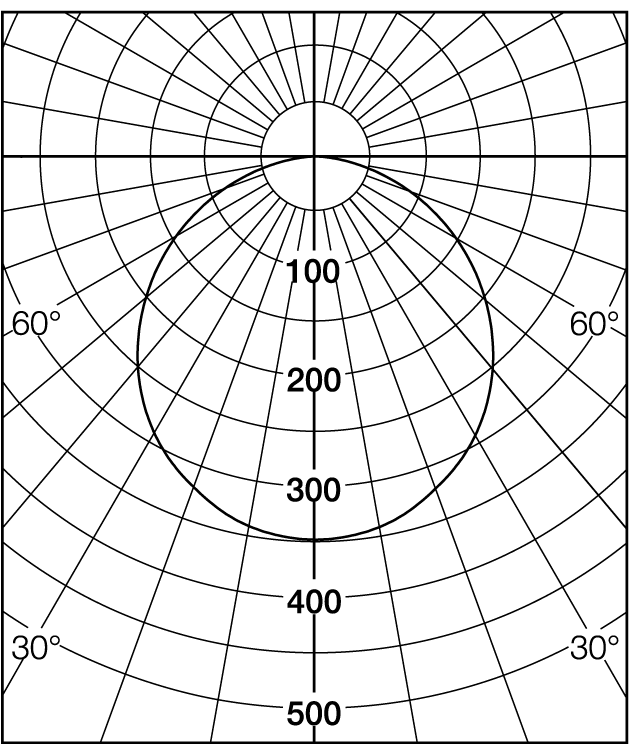

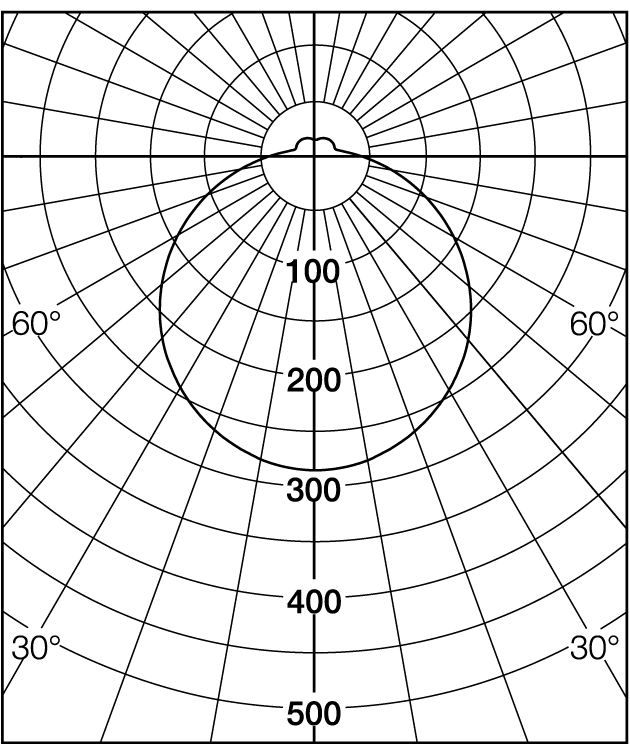

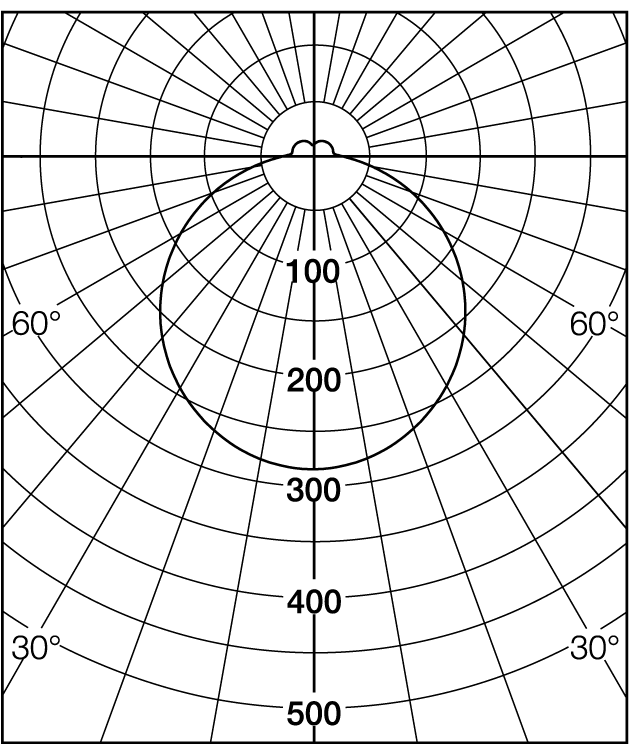

Light distribution

Direct.

Dimming

e-Sense Detect – Microwave sensors with lux threshold. Presence control on/off via relay or high/low, alternatively high/low/off via DALI.
e-Sense Flex – Integrated sensors with ambient light sensor. Presence/absense control high/low/off. Wireless communication via Bluetooth mesh. Suffix -569 equipped with microwave sensor.

LED-information

Protection against transient main peaks up to 2kV (between L and N)

Media

Nove

Nove is a versatile decorative luminaire for either ceiling or wall mounting and comes in three sizes. It is perfectly suited for e.g. general areas, entrances and stairwells. To change the aspect, there is an elegant decor ring...

More about the family Nove

Document

Manual e-Sense Flex

Manual e-Sense Detect DALI

Instruction for use

Connection DALI resp. phase pulse dimming

Revit

3Ds

DWG

FBX

Max

Specification

Loading...

Filter

Name Description Art.no.
Name Description Art.no.

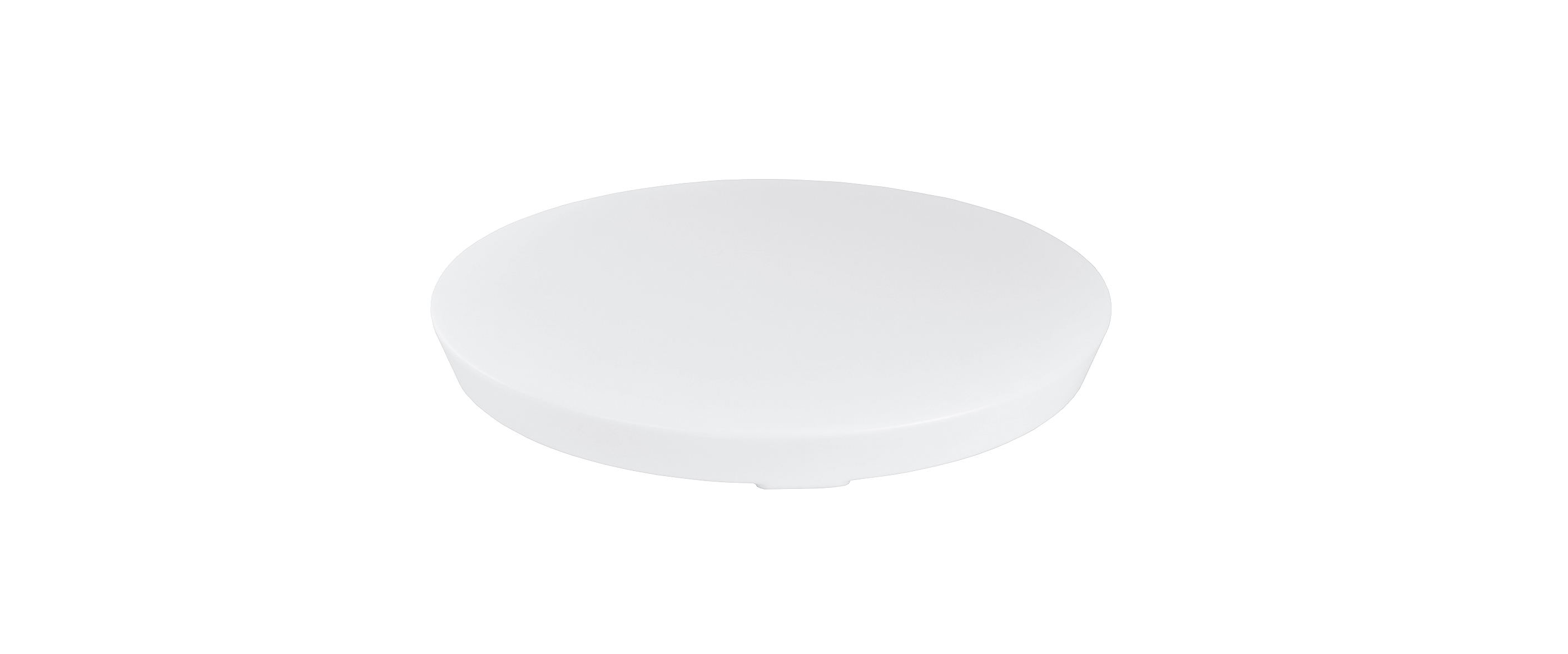

Spare diffuser Spare cover, Ø 420 mm 96127
Spare diffuser Spare cover, Ø 360 mm 96126
Spare diffuser Spare cover, Ø 520 mm 96128
