Dress Up

BIMobject See items

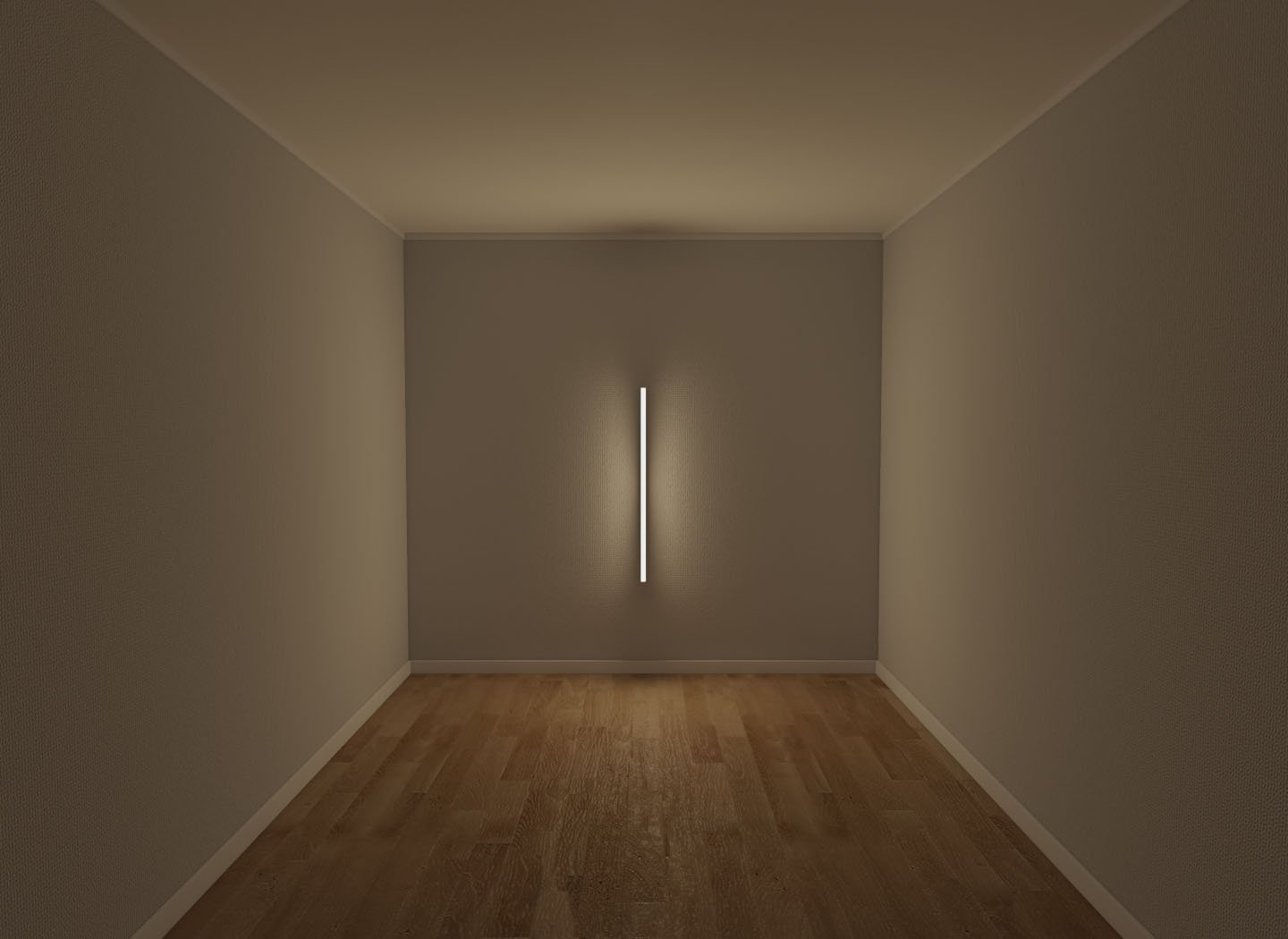

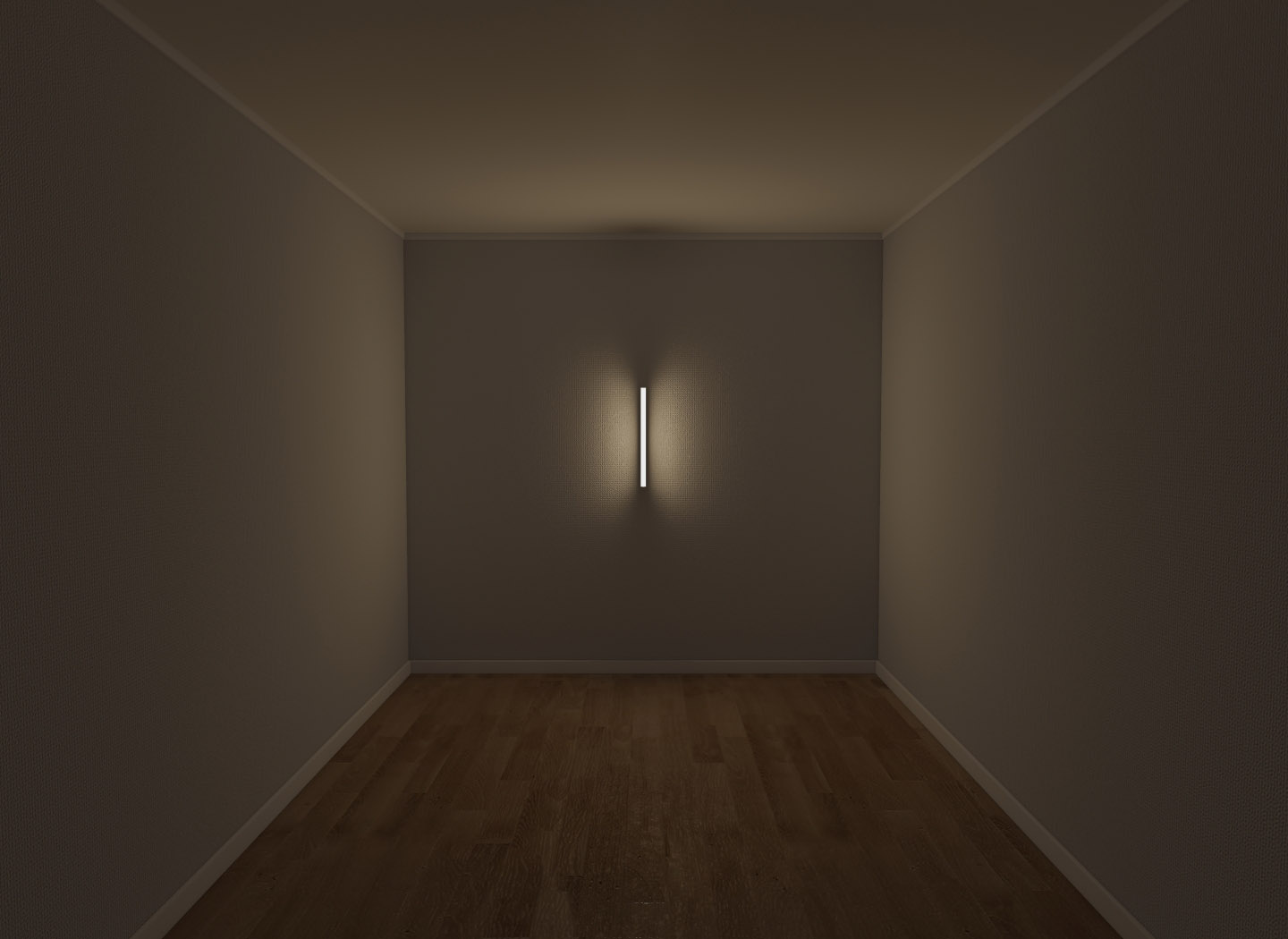

A linear wall-mounted luminaire with soft vertical frontal lighting. Four classic configurations – white, black, agate grey and stainless steel, but can also be customised according to customers’ preferences for colours. Simple plug-and-play system with quick connectors for quick installation. The luminaire comes in two lengths, 600 mm and 1200 mm.

Installation

Single installation on walls.

Connection

External 24 V driver, on/off or DALI (ordered separately; see accessories).
6-way splitter on driver for connection of several luminaires on one driver.
Luminaire is delivered with 3 m connecting cable and connector for splitter on driver.

Design

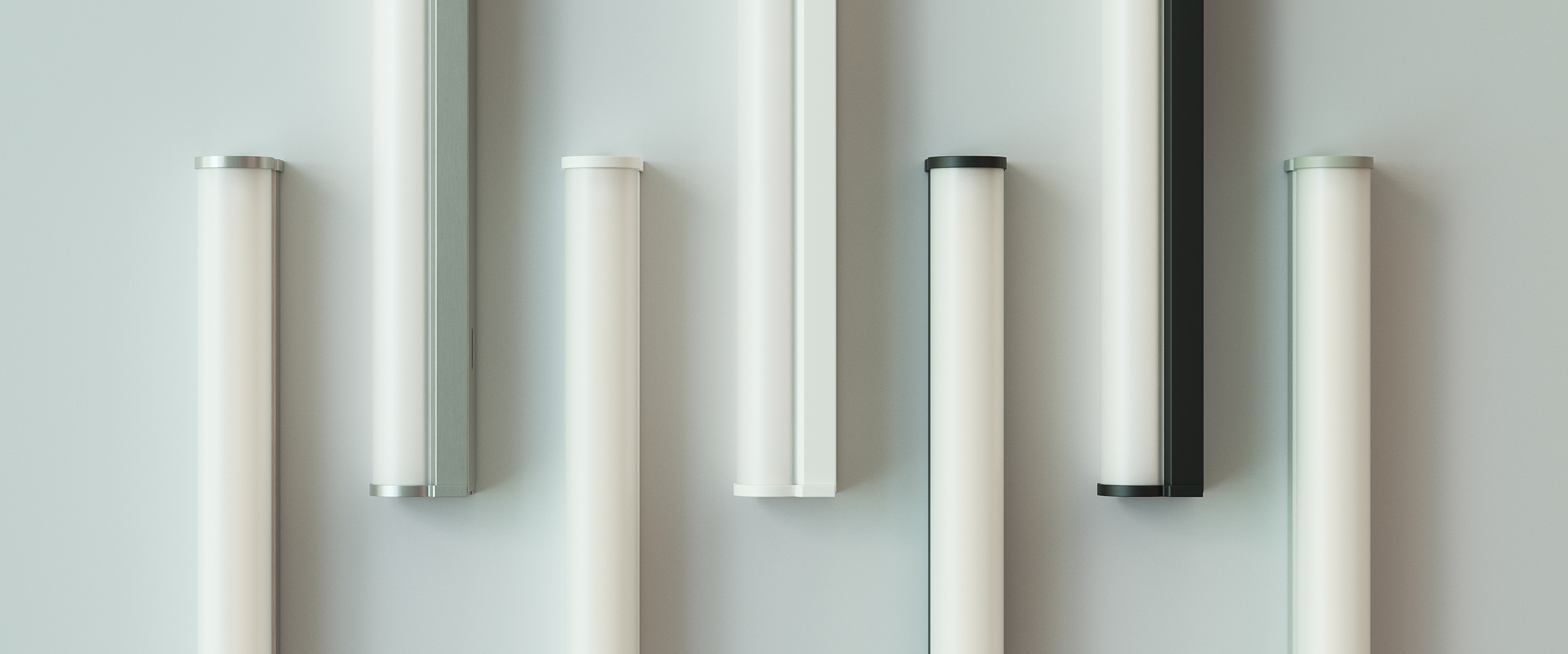

Frame in white structure (RAL 9016), black structure (RAL 9017), agate grey structure (RAL 7038) or stainless steel. Opal acrylic diffuser.

Dimming

DALI/phase pulse (1–100%).

Accessories

The driver can be ordered separately.

Dress Up

Adapted and carefully designed lighting is essential in all spaces, but it’s entirely decisive for what customers buy. Especially in shop fitting rooms, where customers decide whether shades are right, for example, and the colour ...

More about the family Dress Up

Document

Instruction for use

Max

FBX

3Ds

3D DWG

Revit

Specification

Loading...

Filter

Name Description Art.no.
Name Description Art.no.
no-image placeholder Accessories Integrated Lighting100W 24V constant voltage DALI driver with 6-way splitter99024-1002
Accessories Integrated Lighting60W 24V constant voltage DALI driver with 6-way splitter99443-1000
Accessories Integrated Lighting60W 24V constant voltage driver with 6-way splitter97806-1000
