Azur Post
14731 Azur 14731

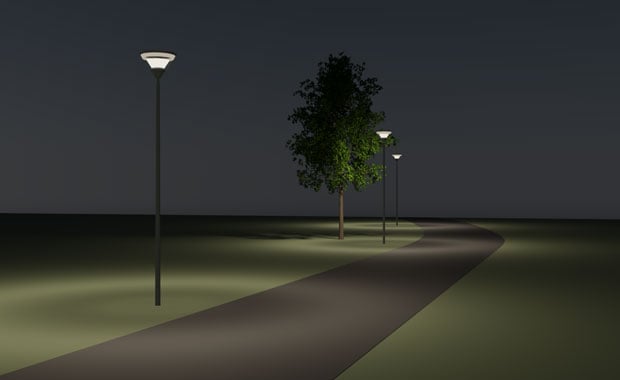

A post top luminaire with a minimalist and contemporary yet robust design, Azur post can be optimised with a range of different control options for a tailored, energy efficient output.
Installation
Luminaire for assembly on a post, with post top Ø 60 mm or Ø 76 mm.
Connection
Supplied with 5 m cable 2x1.5 mm².
Design
Body of cast aluminium and stainless steel details. Shade of UV-stabilised, clear polycarbonate. Re-lamping from the top. Driver in the luminaire and fuse insert integrated in the post.
Louvre
Acrylic louvre.
Reflector
Reflector of anodised aluminium.
Dimming
Night-time dimming 1 – dims down for six hours.
Night-time dimming 2 – dims down for eight hours.
Citygrid on pole.
Designed by
Tommy Govén.
Standard colour
Anthracite grey (Gris 900 Sablé). Alu-grey (RAL 9006) can be ordered with additional suffix code -236.
Miscellaneous
CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.
Media
Azur
Azur is a luminaire family with a consistent, contemporary design. Bollard, post, ceiling and wall variations are all based on a vertical light for optimal lighting comfort. This indirect light combined with opal surfaces gives...
More about the family AzurOther products
Document
Specification
Loading...
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |
| Fuse Holder | Extra fuse holder | 301002 |
|
| Fuse insert, class I | Fuse insert | 301019 |
|
| Wall bracket | Wall bracket post top Ø 60, black (RAL 9005 G70). | 303679-224 |
|
| Wall bracket | Wall bracket post top Ø 60, black (RAL 9005 texture). | 303679-230 |
 | Wall bracket | Wall bracket post top Ø 60, alu-grey (RAL 9006 G70). | 303679-235 |
 | Wall bracket | Wall bracket post top Ø 60, anthracite grey (Gris 900 Sablé). | 303679-329 |
|
| Wall bracket | Wall bracket post top Ø 60, traffic grey (RAL 7042 G70). | 303679-548 |
|
| Wall bracket | Wall bracket post top Ø 60, graphite grey (RAL 7024 G70). | 303679-549 |
|
| Wall bracket | Wall bracket post top Ø 60, green (RAL 6009 G70). | 303679-552 |
 | Citygrid dongle | Citygrid Dongle is the commissioning tool that in combination with the Citygrid Configuration app, enables the configuration of a Citygrid installation. | 86490 |
 | Citygrid On Pole | The Citygrid On Pole unit enables all luminaires to be integrated into a Citygrid network. The unit is mounted on a pole and connects to the luminaire via cabling behind the pole cover plate. | 86492 |
 | Citygrid Gateway | Citygrid Gateway is the bridge between the luminaire's Citygrid controllers and the cloud, which enables data to be displayed on the Citygrid Dashboard. Comes with the Citygrid Gateway Cabinet Kit with 2-wire 1.5 m cable for mounting in electrical cabinets. | 86495 |
|
| Citygrid On Pole mounting kit for gateway | Citygrid Gateway Pole Kit with 2-wire 8 m cable. Enables mounting on poles. | 86496 |
