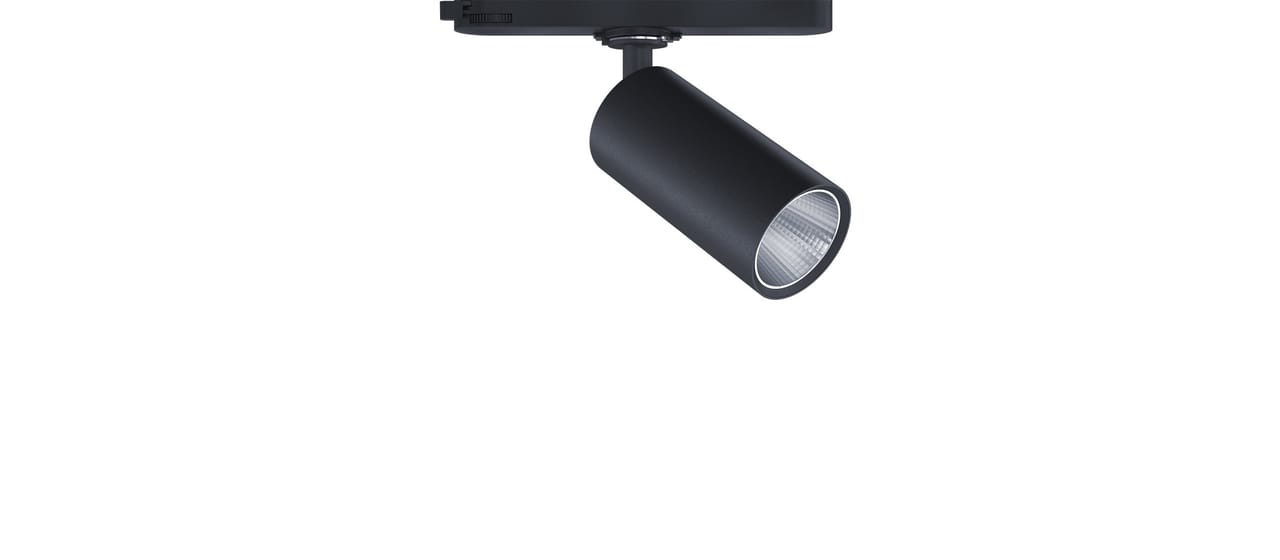

65117 Zkye 55 G2 Spotlight
Documents
Specification
94941Design
Installation
3-phase track
Light distribution
Medium Beam
Beam angle, °
24
Tilt, °
90
Turn, °
360
Colour
Black
Light data & performance
Lumen output
1573
lm/W
108
CCT, K
4000
CRI
90
SDCM
3
Lumen maintenance 35 000 h
L96
Lumen maintenance 50 000 h
L95
Lumen maintenance 75 000 h
L94
Lumen maintenance 100 000 h
L92
LED driver, h/max failure %
100000/10
Energy class, LED module
D
Controls & connectivity
Light control
On/off
Driver brand
Philips
ZD4i Certified
False
Daylight functionality
False
Electricity & enclosure
Rated supply voltage, V
220-240
Mains frequency, Hz
50, 60
Protective class
2
IP rating
20
System Wattage
15
Min. ambient temperature, °C
-25
Max. ambient temperature, °C
25
MCB B10A, pcs
45
MCB B16A
72
MCB C10A
74
MCB C16A
122
THD, %
7
Surge protection CM, kV/kA
2
Surge protection DM, kV/kA
1
Power factor, 100 %
0.99
Dimensions
Length, mm
171
Width, mm
55
Height, mm
171
Weight, kg
0.3
Dimensions
Light distribution
Zkye G2
Zkye is a series of spotlights with many possibilities. The design is modern and distinctive, and thanks to a wide range of installation options, designs, and features, you can set the right mood in any room or venue by...
More about the family Zkye G2
