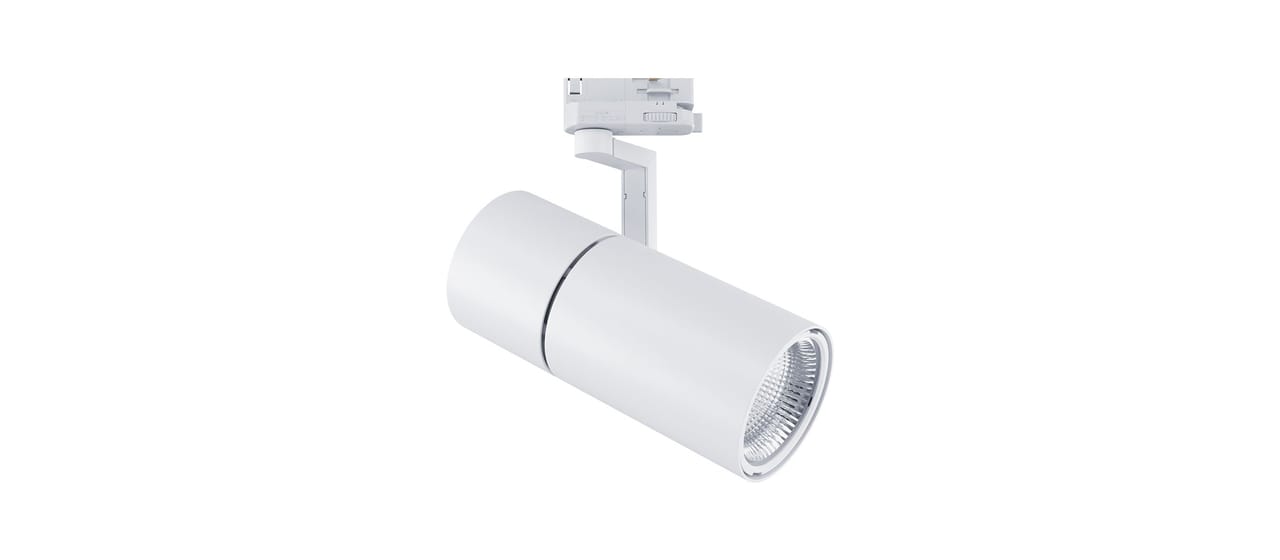

84450-20011 Touch Mini G2 Tunable White
Documents
Specification
96386Design
Installation
3-phase track
Light distribution
Wide Beam
Beam angle, °
37
Tilt, °
90
Turn, °
360
Colour
White
Light data & performance
Lumen output
2317
lm/W
91
Tunable White
Yes
Tunable White range, K
2700-6500
CRI
90
SDCM
3
Lumen maintenance 35 000 h
L93
Lumen maintenance 50 000 h
L93
Lumen maintenance 75 000 h
L89
Lumen maintenance 100 000 h
L86
LED driver, h/max failure %
100000/10
Energy class, LED module
F
Controls & connectivity
Light control
e-Sense Stage
Driver brand
Tridonic
AM
Yes
ZD4i Certified
False
Daylight functionality
False
Electricity & enclosure
Rated supply voltage, V
220-240
Mains frequency, Hz
0, 50, 60
Protective class
2
IP rating
20
IP rating (above suspended ceilings)
20
System Wattage
26
Stand by W
0.4
Min. ambient temperature, °C
-25
Max. ambient temperature, °C
25
MCB B10A, pcs
10
MCB B16A
16
MCB C10A
16
MCB C16A
26
THD, %
12
Surge protection CM, kV/kA
2
Surge protection DM, kV/kA
1
Power factor, 100 %
0.97
NTC function
False
Dimensions
Length, mm
85
Width, mm
100
Height, mm
201
Diamater, mm
85
Weight, kg
0.7
Dimensions
Light distribution
Touch G2
Touch is a stylish and timeless luminaire that will fit smoothly into any retail environment. As versatile as a “little black dress” or a fitted suit, always ready to put on a great performance no matter the application. The...
More about the family Touch G2
