Pleiad Evo

A downlight with very good light properties and mechanical louvre at 25°.

Installation

Recessed mounting in unventilated or ventilated ceilings. Separate ballast and installation clip for easy and tool-free installation supplied as standard. An assembly plate must be used when mounting on soft tile ceilings. The luminaire must not be covered with insulation. For further details please refer to the assembly instructions .

Connection

Connection in separate ballast box. Snap-in terminal block 3x1,5 mm² (x2), through-wiring possible. 5x1,5 mm² (x2) when dimming. Can also be supplied with mains cable and earthed plug or chassis mounted snap-in connector. The luminaire housing and driver are connected via a Quick Connection System.

Design

Luminaire body and visible reflector ring in white PBT plastic (RAL 9003).

Reflector

Reflector in either specular or semi-matt anodised aluminium. Mechanical shielding25°

Miscellaneous

The luminaire is supplied with dust protection over the light opening.
Class III applies to the luminaire body only. The supplied driver should be connected to protective earth.

For loads in the suspended ceiling system, follow the selected suspended ceiling supplier’s recommendation.



CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.

Media

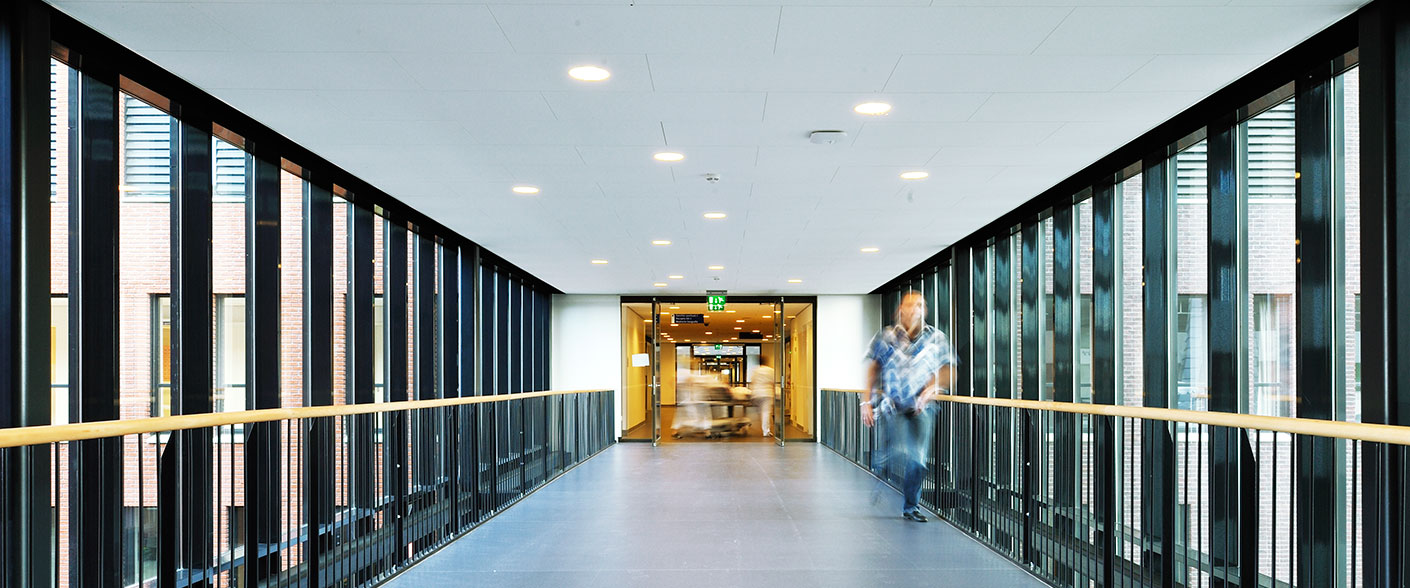

Pleiad Evo

Pleiad Evo is the latest addition to the Pleiad family- offering exceptional light treatment, The extremely light weight design utilises the reflector as the only cooling element within the fixture. One of the factors behind...

More about the family Pleiad Evo

Document

Specification

Filter

Art.no. Effect, W Lumen output CCT, K Diameter, mm Reflector Colour Light distribution Light control Connection SDCM CLO function on
Art.no. Effect, W Lumen output CCT, K Diameter, mm Reflector Colour Light distribution Light control Connection SDCM CLO function on
77440 9 1130 3000 183 Specular White Wide Beam 3
77440-111 9 1130 3000 183 Specular Wide Beam Wieland GST18i3 3-way male 3
77440-3 9 1130 3000 183 Specular White Wide Beam Connection cable with plug, L=2.5 m 3
77440-340 9 1130 3000 183 Specular Wide Beam Wago Winsta 3-way male 3
77440-402 8.5 1017 3000 183 Specular White Wide Beam DALI/Phase-pulse 3 Yes
77440-519 9 1130 3000 183 Specular Wide Beam Ensto 3-way male 3
77440-520 8.5 1017 3000 183 Specular Wide Beam DALI/Phase-pulse Ensto 5-way male 3 Yes
77440-528 8.5 1017 3000 183 Specular Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male 3 Yes
77440-529 8.5 1017 3000 183 Specular Wide Beam DALI/Phase-pulse Wago Winsta 5-way male 3 Yes
77441 14 1639 3000 183 Specular White Wide Beam 3
77441-111 14 1639 3000 183 Specular Wide Beam Wieland GST18i3 3-way male 3
77441-3 14 1639 3000 183 Specular White Wide Beam Connection cable with plug, L=2.5 m 3
77441-340 14 1639 3000 183 Specular Wide Beam Wago Winsta 3-way male 3
77441-402 13 1475 3000 183 Specular White Wide Beam DALI/Phase-pulse 3 Yes
77441-519 14 1639 3000 183 Specular Wide Beam Ensto 3-way male 3
77441-520 13 1475 3000 183 Specular Wide Beam DALI/Phase-pulse Ensto 5-way male 3 Yes
77441-528 13 1475 3000 183 Specular Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male 3 Yes
77441-529 13 1475 3000 183 Specular Wide Beam DALI/Phase-pulse Wago Winsta 5-way male 3 Yes
77442 9 1145 3000 183 Matt White Wide Beam 3
77442-111 9 1145 3000 183 Matt Wide Beam Wieland GST18i3 3-way male 3
77442-3 9 1145 3000 183 Matt White Wide Beam Connection cable with plug, L=2.5 m 3
77442-340 9 1145 3000 183 Matt Wide Beam Wago Winsta 3-way male 3
77442-402 8.5 1031 3000 183 Matt White Wide Beam DALI/Phase-pulse 3 Yes
77442-519 9 1145 3000 183 Matt Wide Beam Ensto 3-way male 3
77442-520 8.5 1031 3000 183 Matt Wide Beam DALI/Phase-pulse Ensto 5-way male 3 Yes
77442-528 8.5 1031 3000 183 Matt Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male 3 Yes
77442-529 8.5 1031 3000 183 Matt Wide Beam DALI/Phase-pulse Wago Winsta 5-way male 3 Yes
77443 14 1661 3000 183 Matt White Wide Beam 3
77443-111 14 1661 3000 183 Matt Wide Beam Wieland GST18i3 3-way male 3
77443-3 14 1661 3000 183 Matt White Wide Beam Connection cable with plug, L=2.5 m 3
77443-340 14 1661 3000 183 Matt Wide Beam Wago Winsta 3-way male 3
77443-402 13 1495 3000 183 Matt White Wide Beam DALI/Phase-pulse 3 Yes
77443-519 14 1661 3000 183 Matt Wide Beam Ensto 3-way male 3
77443-520 13 1495 3000 183 Matt Wide Beam DALI/Phase-pulse Ensto 5-way male 3 Yes
77443-528 13 1495 3000 183 Matt Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male 3 Yes
77443-529 13 1495 3000 183 Matt Wide Beam DALI/Phase-pulse Wago Winsta 5-way male 3 Yes
77444 9 1186 4000 183 Specular White Wide Beam 3
77444-111 9 1186 4000 183 Specular Wide Beam Wieland GST18i3 3-way male 3
77444-3 9 1186 4000 183 Specular White Wide Beam Connection cable with plug, L=2.5 m 3
77444-340 9 1186 4000 183 Specular Wide Beam Wago Winsta 3-way male 3
77444-402 8.5 1067 4000 183 Specular White Wide Beam DALI/Phase-pulse 3 Yes
77444-519 9 1186 4000 183 Specular Wide Beam Ensto 3-way male 3
77444-520 8.5 1067 4000 183 Specular Wide Beam DALI/Phase-pulse Ensto 5-way male 3 Yes
77444-528 8.5 1067 4000 183 Specular Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male 3 Yes
77444-529 8.5 1067 4000 183 Specular Wide Beam DALI/Phase-pulse Wago Winsta 5-way male 3 Yes
77445 14 1721 4000 183 Specular White Wide Beam 3
77445-111 14 1721 4000 183 Specular Wide Beam Wieland GST18i3 3-way male 3
77445-3 14 1721 4000 183 Specular White Wide Beam Connection cable with plug, L=2.5 m 3
77445-340 14 1721 4000 183 Specular Wide Beam Wago Winsta 3-way male 3
77445-402 13 1549 4000 183 Specular White Wide Beam DALI/Phase-pulse 3 Yes
77445-519 14 1721 4000 183 Specular Wide Beam Ensto 3-way male 3
77445-520 13 1549 4000 183 Specular Wide Beam DALI/Phase-pulse Ensto 5-way male 3 Yes
77445-528 13 1549 4000 183 Specular Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male 3 Yes
77445-529 13 1549 4000 183 Specular Wide Beam DALI/Phase-pulse Wago Winsta 5-way male 3 Yes
77446 9 1203 4000 183 Matt White Wide Beam 3
77446-111 9 1203 4000 183 Matt Wide Beam Wieland GST18i3 3-way male 3
77446-3 9 1203 4000 183 Matt White Wide Beam Connection cable with plug, L=2.5 m 3
77446-340 9 1203 4000 183 Matt Wide Beam Wago Winsta 3-way male 3
77446-402 8.5 1083 4000 183 Matt White Wide Beam DALI/Phase-pulse 3 Yes
77446-519 9 1203 4000 183 Matt Wide Beam Ensto 3-way male 3
77446-520 8.5 1083 4000 183 Matt Wide Beam DALI/Phase-pulse Ensto 5-way male 3 Yes
77446-528 8.5 1083 4000 183 Matt Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male 3 Yes
77446-529 8.5 1083 4000 183 Matt Wide Beam DALI/Phase-pulse Wago Winsta 5-way male 3 Yes
77447 14 1744 4000 183 Matt White Wide Beam 3
77447-111 14 1744 4000 183 Matt Wide Beam Wieland GST18i3 3-way male 3
77447-3 14 1744 4000 183 Matt White Wide Beam Connection cable with plug, L=2.5 m 3
77447-340 14 1744 4000 183 Matt Wide Beam Wago Winsta 3-way male 3
77447-402 13 1570 4000 183 Matt White Wide Beam DALI/Phase-pulse 3 Yes
77447-519 14 1744 4000 183 Matt Wide Beam Ensto 3-way male 3
77447-520 13 1570 4000 183 Matt Wide Beam DALI/Phase-pulse Ensto 5-way male 3 Yes
77447-528 13 1570 4000 183 Matt Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male 3 Yes
77447-529 13 1570 4000 183 Matt Wide Beam DALI/Phase-pulse Wago Winsta 5-way male 3 Yes
77483 18 1995 3000 183 Specular Wide Beam 3
77483-111 18 1995 3000 183 Specular Wide Beam Wieland GST18i3 3-way male 3
77483-3 18 1995 3000 183 Specular Wide Beam Connection cable with plug, L=2.5 m 3
77483-340 18 1995 3000 183 Specular Wide Beam Wago Winsta 3-way male 3
77483-402 16 1795 3000 183 Specular Wide Beam DALI/Phase-pulse 3 Yes
77483-519 18 1995 3000 183 Specular Wide Beam Ensto 3-way male 3
77483-520 16 1795 3000 183 Specular Wide Beam DALI/Phase-pulse Ensto 5-way male 3 Yes
77483-528 16 1795 3000 183 Specular Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male 3 Yes
77483-529 16 1795 3000 183 Specular Wide Beam DALI/Phase-pulse Wago Winsta 5-way male 3 Yes
77484 18 2022 3000 183 Matt Wide Beam 3
77484-111 18 2022 3000 183 Matt Wide Beam Wieland GST18i3 3-way male 3
77484-3 18 2022 3000 183 Matt Wide Beam Connection cable with plug, L=2.5 m 3
77484-340 18 2022 3000 183 Matt Wide Beam Wago Winsta 3-way male 3
77484-402 16 1820 3000 183 Matt Wide Beam DALI/Phase-pulse 3 Yes
77484-519 18 2022 3000 183 Matt Wide Beam Ensto 3-way male 3
77484-520 16 1820 3000 183 Matt Wide Beam DALI/Phase-pulse Ensto 5-way male 3 Yes
77484-528 16 1820 3000 183 Matt Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male 3 Yes
77484-529 16 1820 3000 183 Matt Wide Beam DALI/Phase-pulse Wago Winsta 5-way male 3 Yes
77488 18 2095 4000 183 Specular Wide Beam 3
77488-111 18 2095 4000 183 Specular Wide Beam Wieland GST18i3 3-way male 3
77488-3 18 2095 4000 183 Specular Wide Beam Connection cable with plug, L=2.5 m 3
77488-340 18 2095 4000 183 Specular Wide Beam Wago Winsta 3-way male 3
77488-402 16 1886 4000 183 Specular Wide Beam DALI/Phase-pulse 3 Yes
77488-519 18 2095 4000 183 Specular Wide Beam Ensto 3-way male 3
77488-520 16 1886 4000 183 Specular Wide Beam DALI/Phase-pulse Ensto 5-way male 3 Yes
77488-528 16 1886 4000 183 Specular Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male 3 Yes
77488-529 16 1886 4000 183 Specular Wide Beam DALI/Phase-pulse Wago Winsta 5-way male 3 Yes
77489 18 2123 4000 183 Matt Wide Beam 3
77489-111 18 2123 4000 183 Matt Wide Beam Wieland GST18i3 3-way male 3
77489-3 18 2123 4000 183 Matt Wide Beam Connection cable with plug, L=2.5 m 3
77489-340 18 2123 4000 183 Matt Wide Beam Wago Winsta 3-way male 3
77489-402 16 1911 4000 183 Matt Wide Beam DALI/Phase-pulse 3 Yes
77489-519 18 2123 4000 183 Matt Wide Beam Ensto 3-way male 3
77489-520 16 1911 4000 183 Matt Wide Beam DALI/Phase-pulse Ensto 5-way male 3 Yes
77489-528 16 1911 4000 183 Matt Wide Beam DALI/Phase-pulse Wieland GST18i5 5-way male 3 Yes
77489-529 16 1911 4000 183 Matt Wide Beam DALI/Phase-pulse Wago Winsta 5-way male 3 Yes

Filter

Name Description Art.no.
Name Description Art.no.
Assembly plateAssembly plate41956
Assembly plate and support bars600 mm41958
Cilindriq rillsØ 165 mm, white (RAL 9016)41935
Cover plate clear IP 64Ø 165 mm, white (RAL 9016)41840
Cover plate clear IP 64Ø 165 mm, grey (RAL 9006)41844
Cover plate clear IP 64Ø 165 mm, matt aluminium41848
Cover plate Delta IP 20Ø 165 mm, white (RAL 9016)42031
Cover plate Delta IP 20Ø 165 mm, grey (RAL 9006)42035
Cover plate Delta IP 20Ø 165 mm, matt aluminium42039
Cover plate opal IP 54Ø 165 mm, white (RAL 9016)41860
Cover plate opal IP 54Ø 165 mm, grey (RAL 9006)41864
Cover plate opal IP 54Ø 165 mm, matt aluminium41868
Edge ring IIØ 165 mm, white (RAL 9016)41900
Edge ring IIØ 165 mm, grey (RAL 7040)41904
Edge ring IIØ 165 mm, matt aluminium41908
Edge ring IIIØ 165 mm, white (RAL 9016)41920
Edge ring IIIØ 165 mm, grey (RAL 7040)41924
Edge ring IIIØ 165 mm, matt aluminium41928
IceØ 16541315
Mounting plate. Mounting plate HB. Adapted for downlights with recess dimensions Ø 16541655
OpusØ 165 mm, white (RAL 9016)41745
Recess panelØ 165 mm41775
Retrofit kitRetrofit kit Ø 165–270 mm41339
RinglightØ 165 mm, white (RAL 9016)41750
RinglightØ 165 mm, blasted glass41754
Sloping ceiling cylinderSloping ceiling cylinder41638
WAGO connection cables, 3-wayLength 3.0 m with female and male connectors, 3x1,5 mm². Halogen free.91244
WAGO connection cables, 5-wayLength 3.0 m with female and male connectors, 5x1,5 mm². Halogen free.91243
WAGO T-connectorWAGO T-connector, 5-way, 2 locking levers, blue88228
WAGO T-connectorWAGO T-Connector, 3-way, white91067
Wieland connection cables, 3-wayLength 3.0 m with female and male connectors, 3x1,5 mm². Halogen free.92793
Wieland connection cables, 5-wayLength 3.0 m with female and male connectors, 5x1,5 mm². Halogen free.92799
Wieland T-connectorWieland 3-way T-connector91025
Wieland T-connectorWieland 5-way T-connector91026
