303561-461 On Ground LED
Documents
Specification
1073Design
Beam angle, °
42
Tilt, °
14
Colour
Anthracite grey/aluminium grey
Light data & performance
Lumen output
1004
CLO function active
Yes
CLO time, h
100000
lm/W
73
CCT, K
3000
CRI
80
SDCM
3
Melanopic DER
0.460
Lumen maintenance 100 000 h
L100
Lumen maintenance L100 B50, h
100000
LED driver, h/max failure %
100000/10
Energy class, LED module
E
Controls & connectivity
Light control
DALI
ZD4i Certified
False
Daylight functionality
False
Electricity & enclosure
Protective class
1
IP rating
65
IK rating
10
Start W
14
End W
15
Average W
14.5
Min. ambient temperature, °C
-45
Max. ambient temperature, °C
25
THD, %
13
Power factor, 100 %
0.94
Power factor, 20 %
0.76
Projected wind area, m2
0.080
NTC function
Yes
Dimensions
Height, mm
406
Diamater, mm
250
Weight, kg
18.000
Dimensions
Light distribution
On Ground

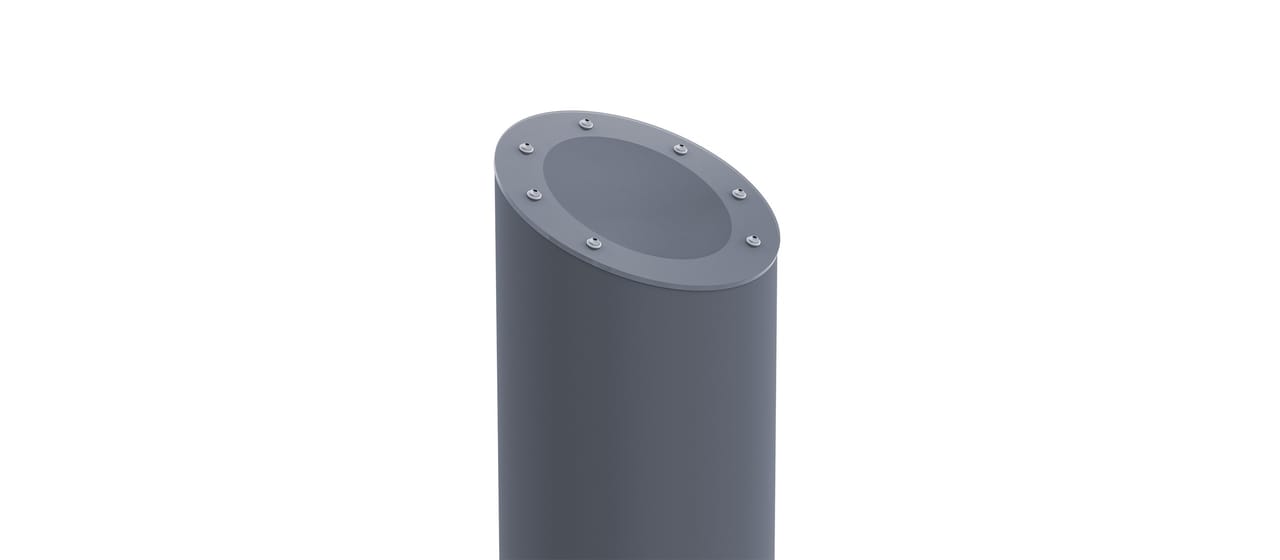

On Ground is a very robust in-ground luminaire that unlike other indirect solutions isn't completely installed in the ground. That makes it ideal for environments that require an extra durable and sturdy floodlight, combining...
More about the family On Ground
