Dwide wall

Wall luminaire, height 600 mm, with Direct/Indirect light distribution 90/10. Opal divider for good anti-glare dimming at eye level.

Installation

Luminaire for wall installation. Two securing holes.

Connection

Cable entry from rear or external cable. 5-way snap-in terminal block, 1-phase through-wiring possible.

Design

Metal luminaire body with die-cast metal ends, white (RAL 9016) finish. The rear is covered by an opal diffuser for indirect light, which also works as a dust cover.

Louvre

Light divider in opal acrylic (PMMA).

Light distribution

Direct/Indirect.

Dimming

DALI/phase-pulse control as standard. Luminaire with DALI/phase pulse control and CLO (Constant Light Output) as standard.

e-Sense Move – microwave sensors with lux threshold. Presence control high/low/off. All luminaires have master/slave functionality with RF communications.

Designed by

Yellon.

Miscellaneous

CRI 90 alt CLO L100 100 000h available upon request. CLO (Constant Light Output) means that the luminaire provides the same amount of light for the duration of its specified burn-time.

Media

Dwide Wall – Installation

Dwide

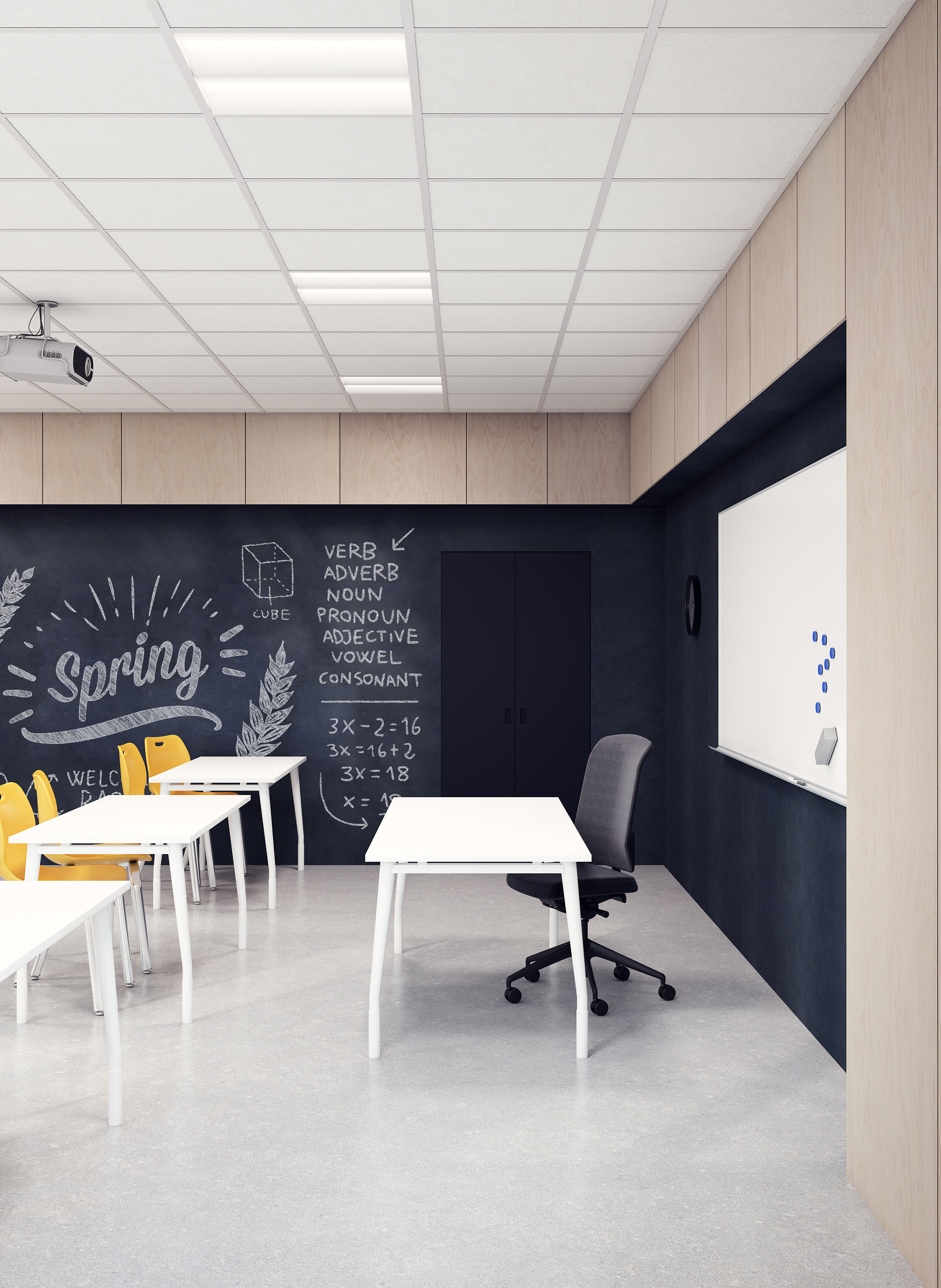

Dwide is a complete, versatile product family that meets all lighting requirements – whether for office, school or hospital projects. Recessed, ceiling-mounted and pendant luminaires with different light distributions are...

More about the family Dwide
