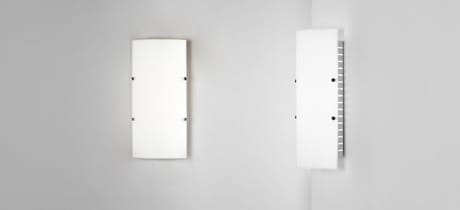

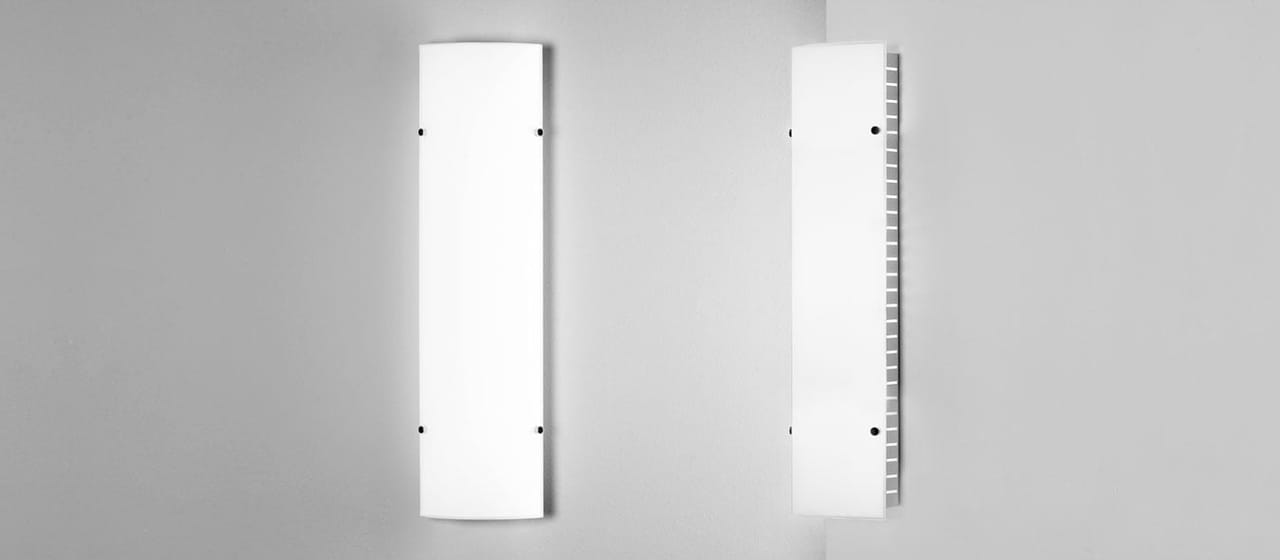

55994-402 Zoft Wall

Light distribution

Direct

Louvre

Opal

Diffuser

Glass

Lumen output

1646

lm/W

112

CCT, K

3000

CRI

80

SDCM

3

Lumen maintenance 50 000 h

L98

Lumen maintenance 75 000 h

L97

Lumen maintenance 100 000 h

L96

LED driver, h/max failure %

50000/10

Energy class, LED module

C

PstLm

0.020

SVM

0.010

Light control

DALI/Phase-pulse

Driver brand

Helvar

DALI generation/adress type

Dali-2/1xDT6

Power on last level

Yes

Switch control, max no.

60

AM

Yes

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

0, 50, 60

Protective class

1

IP rating

20

System Wattage

15

Stand by W

0.5

Min. ambient temperature, °C

-20

Max. ambient temperature, °C

25

MCB B10A, pcs

34

MCB B16A

55

MCB C10A

57

MCB C16A

92

THD, %

11

Surge protection CM, kV/kA

2

Surge protection DM, kV/kA

1

Leakage current PE

0.400

Power factor, 100 %

0.89

Width, mm

165

Height, mm

620

Weight, kg

2.8
