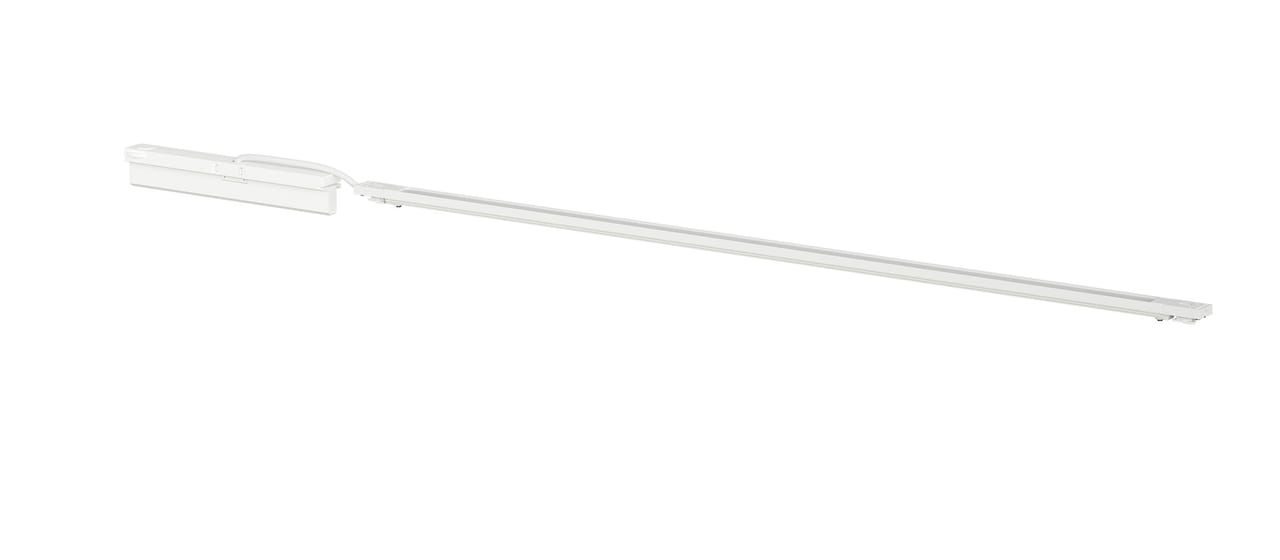

16200-20004 VIL

Installation

Control Track

Module

1400

Light distribution

Indirect

Louvre

Opal

Colour

White

Lumen output

2177

CLO function active

Yes

CLO time, h

50000

lm/W

125

CCT, K

3000

CRI

80

SDCM

3

Melanopic DER

0.450

Lumen maintenance 50 000 h

L100

Lumen maintenance 75 000 h

L88

Lumen maintenance 100 000 h

L84

LED driver, h/max failure %

100000/10

Energy class, LED module

C

Light control

DALI

Driver brand

Tridonic

DALI generation/adress type

Dali-2/1xDT6

Power on last level

Yes

Corridor function

Yes

AM

Yes

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

50, 60

Protective class

2

IP rating

20

Start W

17

End W

18

Average W

17.5

Stand by W

0.5

Min. ambient temperature, °C

-25

Max. ambient temperature, °C

25

MCB B10A, pcs

40

MCB B16A

64

MCB C10A

40

MCB C16A

64

THD, %

7

Surge protection CM, kV/kA

1

Surge protection DM, kV/kA

1

Power factor, 100 %

0.95

Length, mm

1270

Width, mm

25

Height, mm

15

Weight, kg

0.600
