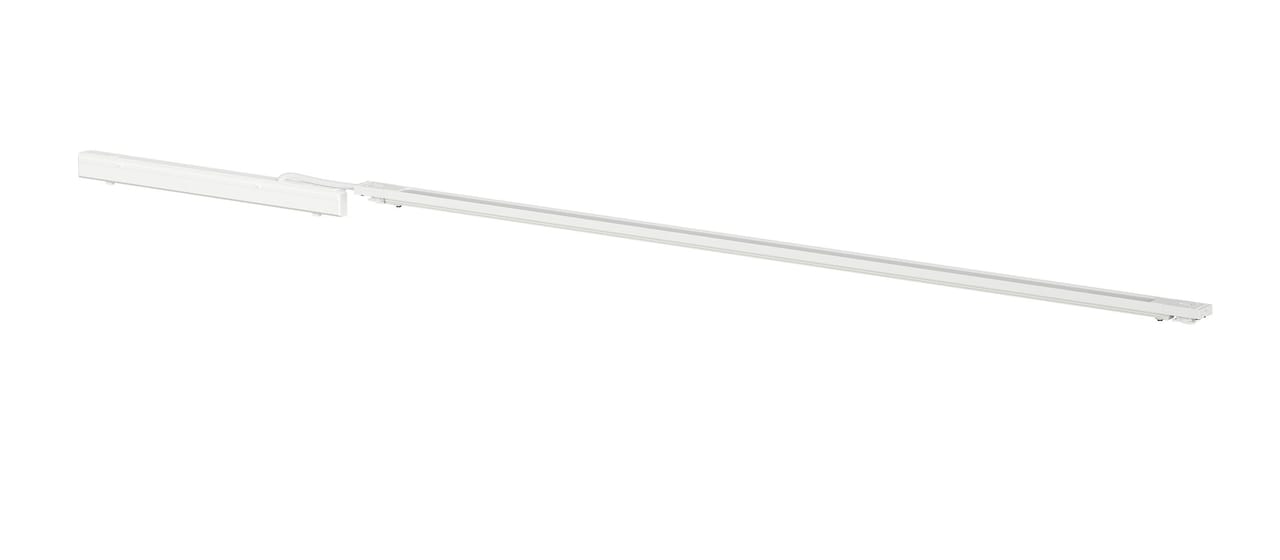

16200-20000 VIL

Installation

Control Track

Module

1400

Light distribution

Indirect

Louvre

Opal

Colour

White

Lumen output

2177

lm/W

133

CCT, K

3000

CRI

80

SDCM

3

Melanopic DER

0.450

Lumen maintenance 50 000 h

L92

Lumen maintenance 75 000 h

L88

Lumen maintenance 100 000 h

L84

LED driver, h/max failure %

100000/10

Energy class, LED module

C

Light control

DALI

Driver brand

Stucchi

DALI generation/adress type

Dali-2/1xDT6

AM

Yes

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

50, 60

Protective class

2

IP rating

20

System Wattage

16

Stand by W

0.5

Min. ambient temperature, °C

-25

Max. ambient temperature, °C

25

MCB B10A, pcs

31

MCB B16A

50

MCB C10A

52

MCB C16A

85

Surge protection CM, kV/kA

2

Surge protection DM, kV/kA

1

Power factor, 100 %

0.98

Length, mm

1360

Width, mm

25

Height, mm

15

Weight, kg

0.500
