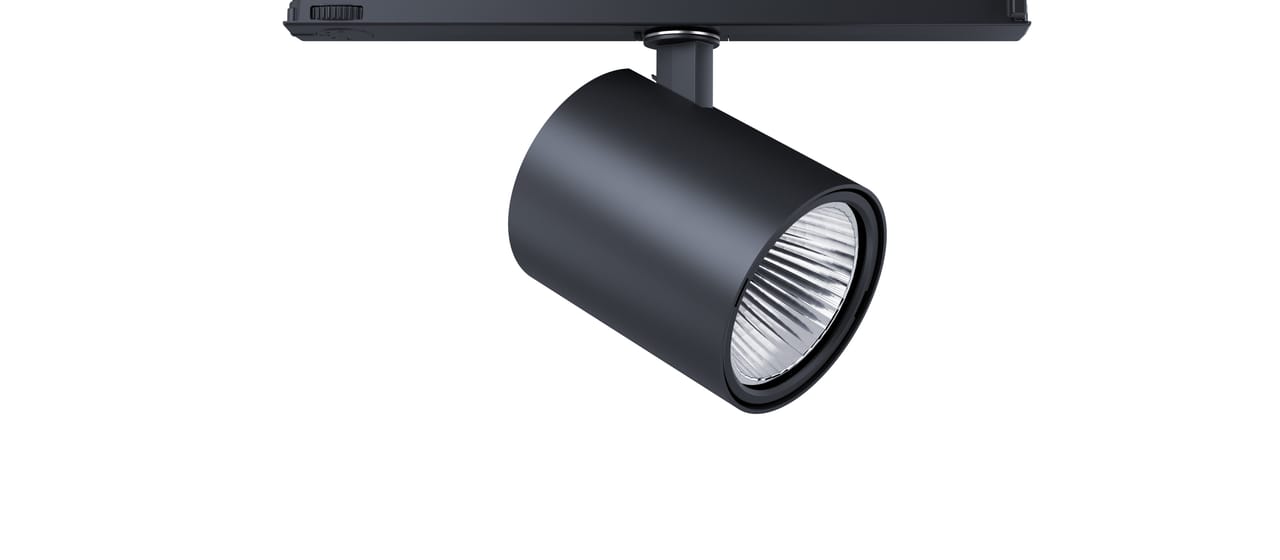

80297-543 Streamer

Installation

Control Track

Light distribution

Wide Beam

Beam angle, °

41

Tilt, °

90

Turn, °

360

Colour

Black

Lumen output

2843

lm/W

137

CCT, K

3000 BBBL

CRI

90

SDCM

2

Lumen maintenance 35 000 h

L94

Lumen maintenance 50 000 h

L92

Lumen maintenance 75 000 h

L88

Lumen maintenance 100 000 h

L85

LED driver, h/max failure %

100000/10

Energy class, LED module

D

Light control

DALI

Driver brand

Tridonic

DALI generation/adress type

Dali-2/1xDT6

Power on last level

Yes

Corridor function

Yes

AM

Yes

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

50, 60

Protective class

2

IP rating

20

System Wattage

21

Stand by W

0.5

Min. ambient temperature, °C

-20

Max. ambient temperature, °C

25

MCB B10A, pcs

40

MCB B16A

64

MCB C10A

40

MCB C16A

64

THD, %

9

Surge protection CM, kV/kA

1

Surge protection DM, kV/kA

1

Power factor, 100 %

0.97

Length, mm

260

Width, mm

85

Height, mm

150

Weight, kg

0.500
