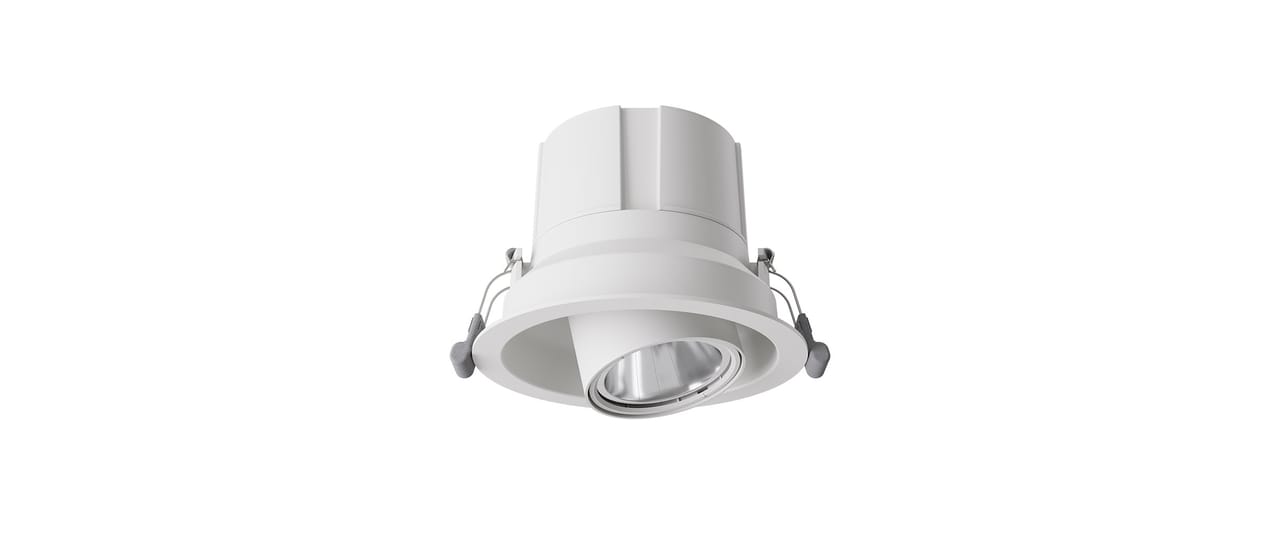

80290-402 Streamer recessed round

Light distribution

Wide Beam

Beam angle, °

41

Tilt, °

50

Turn, °

360

Colour

White

Lumen output

2645

CLO function active

Yes

CLO time, h

50000

lm/W

156

CCT, K

4000 BBBL

CRI

90

SDCM

2

Lumen maintenance 50 000 h

L100

Lumen maintenance 75 000 h

L88

Lumen maintenance 100 000 h

L85

LED driver, h/max failure %

100000/10

Energy class, LED module

D

Light control

DALI/Phase-pulse

Driver brand

Tridonic

DALI generation/adress type

Dali-2/1xDT6

Power on last level

Yes

Corridor function

Yes

Switch control, max no.

25

AM

Yes

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

0, 50, 60

Protective class

1

IP rating

20

Start W

17

End W

19

Average W

18

Stand by W

0.15

Min. ambient temperature, °C

-25

Max. ambient temperature, °C

25

MCB B10A, pcs

19

MCB B16A

31

MCB C10A

31

MCB C16A

51

THD, %

11

Surge protection CM, kV/kA

2

Surge protection DM, kV/kA

1

Power factor, 100 %

0.91

Height, mm

131

Diamater, mm

176

Weight, kg

0.900
