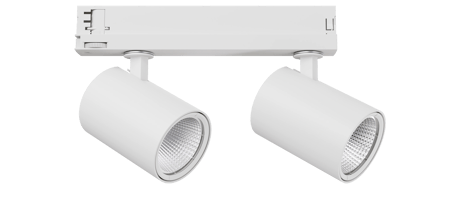

58808 Streamer Mini twin spotlight

Installation

3-phase track

Light distribution

Narrow/Narrow Beam

Beam angle, °

22/22

Tilt, °

90

Turn, °

360

Colour

White

Lumen output

5438

lm/W

148

CCT, K

3000 BBBL

CRI

90

SDCM

2

Lumen maintenance 35 000 h

L94

Lumen maintenance 50 000 h

L92

Lumen maintenance 75 000 h

L88

Lumen maintenance 100 000 h

L85

LED driver, h/max failure %

50000/10

Energy class, LED module

D

Light control

On/off

Driver brand

Vlinca

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

50, 60

Protective class

2

IP rating

20

System Wattage

37

Min. ambient temperature, °C

-20

Max. ambient temperature, °C

25

MCB B10A, pcs

12

MCB B16A

20

MCB C10A

20

MCB C16A

33

THD, %

6

Surge protection CM, kV/kA

1

Surge protection DM, kV/kA

1

Power factor, 100 %

0.97

Length, mm

236

Width, mm

70

Height, mm

150

Weight, kg

0.700
