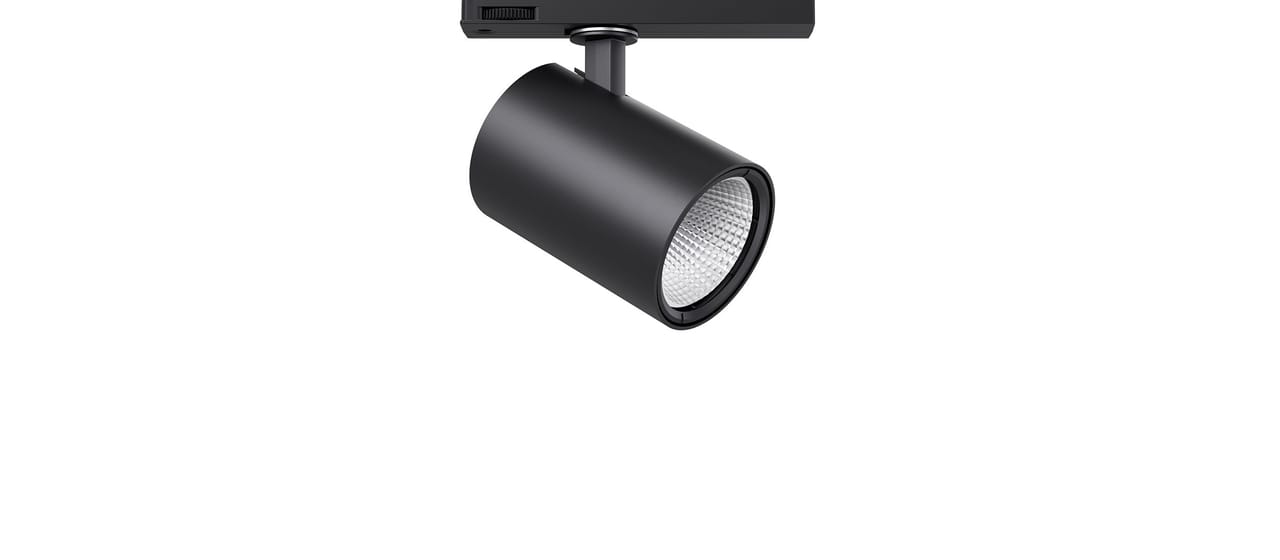

58791 Streamer Mini spotlight
Documents
Specification
96442Design
Installation
3-phase track
Light distribution
Narrow Beam
Beam angle, °
24
Tilt, °
90
Turn, °
360
Colour
Black
Light data & performance
Lumen output
2493
lm/W
154
CCT, K
3000 BBBL
CRI
90
SDCM
2
Lumen maintenance 35 000 h
L94
Lumen maintenance 50 000 h
L92
Lumen maintenance 75 000 h
L88
Lumen maintenance 100 000 h
L85
LED driver, h/max failure %
50000/10
Energy class, LED module
D
PstLm
1.000
SVM
0.400
Controls & connectivity
Light control
On/off
Driver brand
Vlinca
ZD4i Certified
False
Daylight functionality
False
Electricity & enclosure
Rated supply voltage, V
220-240
Mains frequency, Hz
50, 60
Protective class
2
IP rating
20
System Wattage
16
Min. ambient temperature, °C
-20
Max. ambient temperature, °C
25
MCB B10A, pcs
19
MCB B16A
31
MCB C10A
32
MCB C16A
51
THD, %
8
Power factor, 100 %
0.96
Dimensions
Length, mm
139
Width, mm
70
Height, mm
150
Weight, kg
0.300
Dimensions
Light distribution
Streamer
The Streamer is an efficient and dynamic spotlight designed for indoor environments. The luminaire is available in two variants that are either mounted on a rail or recessed into the ceiling, which creates a wide range of...
More about the family Streamer
