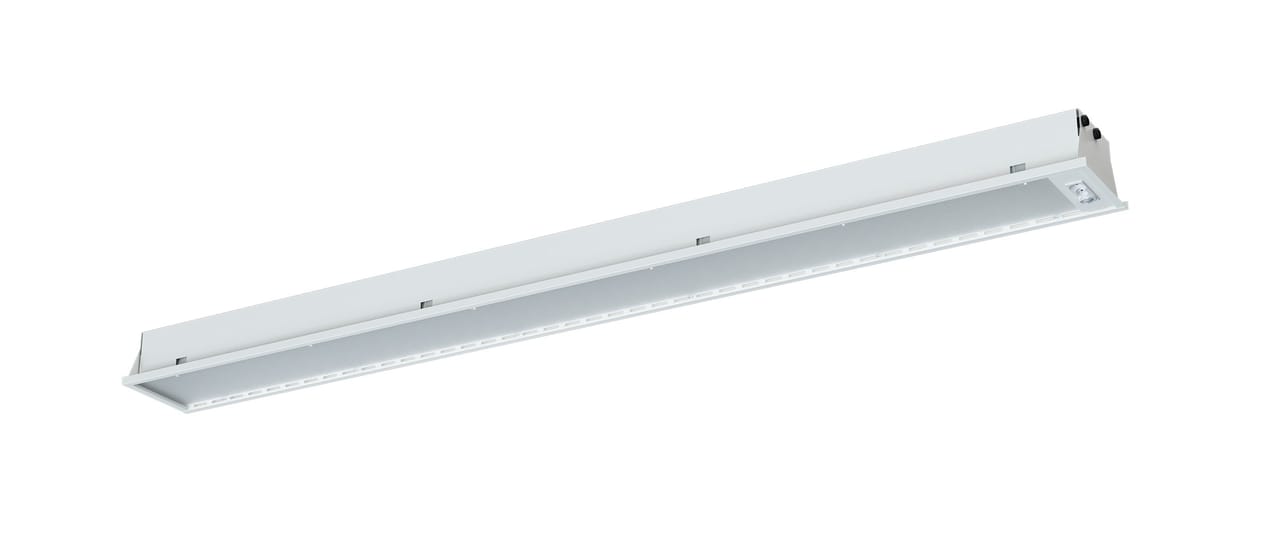

25835-3 Recesso Delta
Documents
Specification
96806Design
Installation
VTB
Module
150x1500
Light distribution
Direct
Louvre
Delta
Colour
White
Light data & performance
Lumen output
4454
CLO function active
Yes
CLO time, h
100000
lm/W
144
CCT, K
3000
CRI
80
SDCM
3
Melanopic DER
0.450
Lumen maintenance 100 000 h
L100
LED driver, h/max failure %
100000/10
Energy class, LED module
C
PstLm
0.020
SVM
0.010
Controls & connectivity
Light control
Organic Response
Driver brand
Philips
Power on last level
Yes
AM
Yes
ZD4i Certified
False
Daylight functionality
False
Electricity & enclosure
Connection
Connection cable with plug, L=2.5 m
Rated supply voltage, V
220-240
Mains frequency, Hz
0, 50, 60
Protective class
1
IP rating
20
Start W
31
End W
36
Average W
33.5
Stand by W
0.49
Min. ambient temperature, °C
0
Max. ambient temperature, °C
25
MCB B10A, pcs
20
MCB B16A
32
MCB C10A
33
MCB C16A
54
THD, %
8
Surge protection CM, kV/kA
2
Surge protection DM, kV/kA
1
Leakage current PE
0.500
Power factor, 100 %
0.99
Dimensions
Length, mm
1497
Width, mm
147
Height, mm
88
Weight, kg
2.7
Dimensions
Light distribution
Recesso
When we develop luminaires, our goal is to always simplify things for our customers. Recesso has become a favourite, because it does just that. The luminaire meets the strictest requirements in terms of economy and flexibility,...
