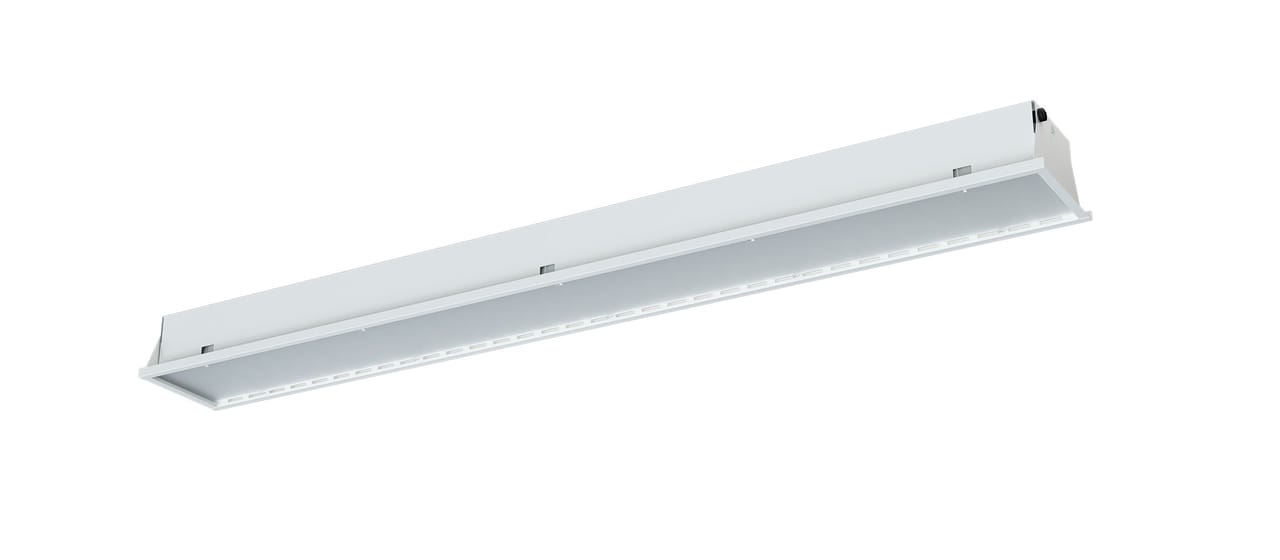

25825 Recesso Delta
Documents
Specification
96736Design
Installation
VTB
Module
150x1200
Light distribution
Direct
Louvre
Delta
Colour
White
Light data & performance
Lumen output
2624
lm/W
139
CCT, K
3000
CRI
80
SDCM
3
Melanopic DER
0.450
Lumen maintenance 50 000 h
L91
Lumen maintenance 75 000 h
L86
Lumen maintenance 100 000 h
L82
LED driver, h/max failure %
100000/10
Energy class, LED module
C
Controls & connectivity
Driver brand
Tridonic
ZD4i Certified
False
Daylight functionality
False
Electricity & enclosure
Rated supply voltage, V
220-240
Mains frequency, Hz
0, 50, 60
Protective class
1
IP rating
20
System Wattage
19
Min. ambient temperature, °C
-25
Max. ambient temperature, °C
25
MCB B10A, pcs
25
MCB B16A
39
MCB C10A
41
MCB C16A
65
THD, %
20
Surge protection CM, kV/kA
2
Surge protection DM, kV/kA
1
Power factor, 100 %
0.92

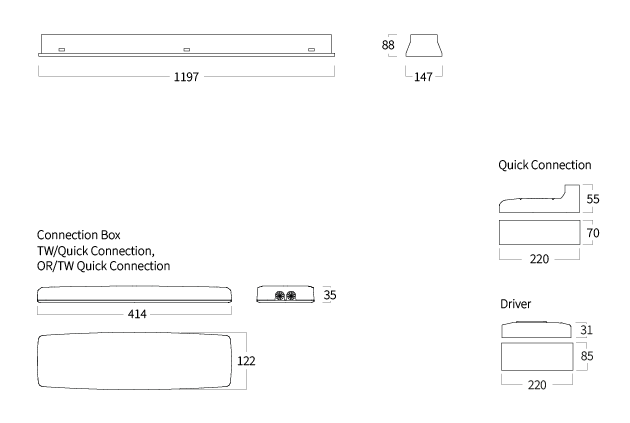

Dimensions
Length, mm
1197
Width, mm
147
Height, mm
88
Weight, kg
2.1
Dimensions
Light distribution
Recesso
When we develop luminaires, our goal is to always simplify things for our customers. Recesso has become a favourite, because it does just that. The luminaire meets the strictest requirements in terms of economy and flexibility,...
More about the family Recesso
