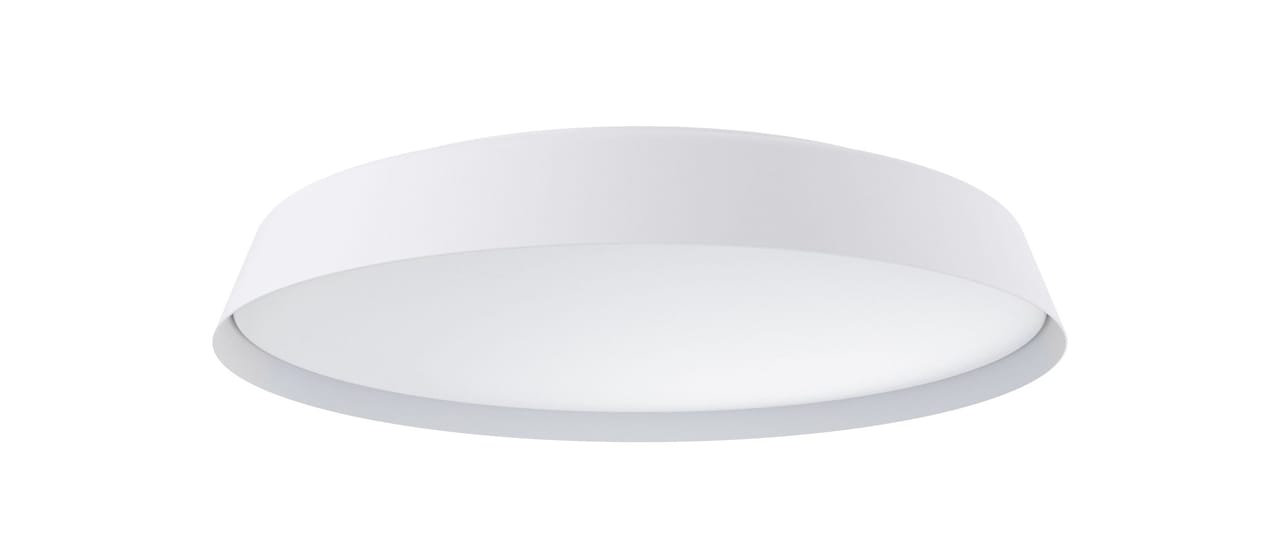

57108-495 Nove

Light distribution

Direct

Louvre

Opal

Colour

White

Lumen output

2272

lm/W

96

CCT, K

3000

CRI

80

SDCM

3

Lumen maintenance 50 000 h

L98

Lumen maintenance 75 000 h

L97

Lumen maintenance 100 000 h

L96

Lumen maintenance L90 B50, h

100000

LED driver, h/max failure %

100000/10

Energy class, LED module

C

Light control

e-Sense Detect DALI absence

Driver brand

Helvar

Power on last level

Yes

Switch control, max no.

30

AM

Yes

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

0, 50, 60

Protective class

1

IP rating

44

IK rating

02

System Wattage

24

Stand by W

0.5

Min. ambient temperature, °C

-20

Max. ambient temperature, °C

25

MCB B10A, pcs

27

MCB B16A

43

MCB C10A

46

MCB C16A

75

THD, %

10

Surge protection CM, kV/kA

2

Surge protection DM, kV/kA

1

Power factor, 100 %

0.93

Height, mm

73

Diamater, mm

437

Weight, kg

2.000
