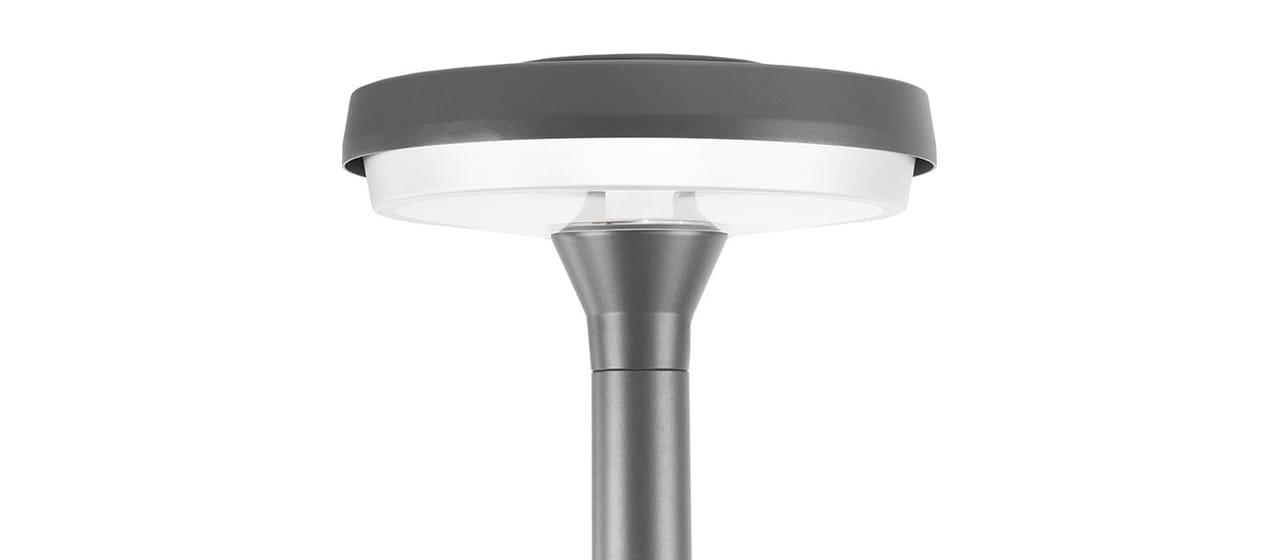

303670-462 Lunova

Light distribution

Round beam

Louvre

Clear shade

Colour

Anthracite grey

Lumen output

4000

CLO function active

Yes

CLO time, h

100000

lm/W

87

Light source colour

830

CCT, K

3000

CRI

80

SDCM

3

Lumen maintenance 100 000 h

L100

Lumen maintenance L100 B10, h

100000

LED driver, h/max failure %

100000/10

Energy class, LED module

E

Light control

Night dimming 1

Driver brand

Philips

AM

Yes

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

50, 60

Protective class

1

IP rating

66

IK rating

10

Start W

46

End W

51

Average W

49

Stand by W

0.5

Min. ambient temperature, °C

-40

Max. ambient temperature, °C

25

MCB B10A, pcs

6

MCB B16A

11

MCB C10A

11

MCB C16A

18

THD, %

9

Surge protection CM, kV/kA

10

Surge protection DM, kV/kA

6

Power factor, 100 %

0.98

Power factor, 20 %

0.69

Projected wind area, m2

0.087

Height, mm

279

Diamater, mm

553

Weight, kg

8.000
