34770 Ligne
Documents
Specification
17210Design
Installation
Start/Single
Module
1200
Light distribution
Wide Beam
Louvre
Opal
Colour
Anodised
Light data & performance
Lumen output
2135
lm/W
121
CCT, K
3500
CRI
80
SDCM
3
Lumen maintenance 50 000 h
L89
Lumen maintenance 75 000 h
L83
Lumen maintenance 100 000 h
L78
Lumen maintenance L90 B50, h
45 000
LED driver, h/max failure %
100000/10
Energy class, LED module
C
Controls & connectivity
Driver brand
Tridonic
Electricity & enclosure
Rated supply voltage, V
220-240
Mains frequency, Hz
0, 50, 60
Protective class
1
IP rating
20
System Wattage
18
Min. ambient temperature, °C
-25
Max. ambient temperature, °C
25
MCB B10A, pcs
10
MCB B16A
16
MCB C10A
16
MCB C16A
26
THD, %
20
Surge protection CM, kV/kA
2
Surge protection DM, kV/kA
1
Power factor, 100 %
0.88

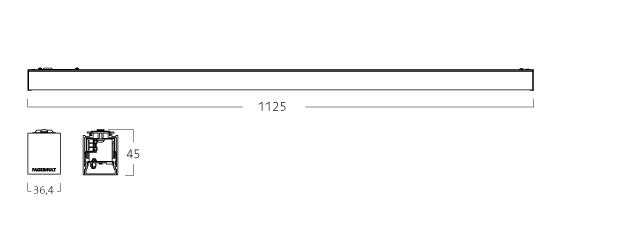

Dimensions
Length, mm
1125
Width, mm
36
Height, mm
45
Weight, kg
1.4
Dimensions
Ligne
Ligne is a minimalistic linear luminaire that fits perfectly in context where you want to create long, unbroken light lines.
More about the family Ligne
