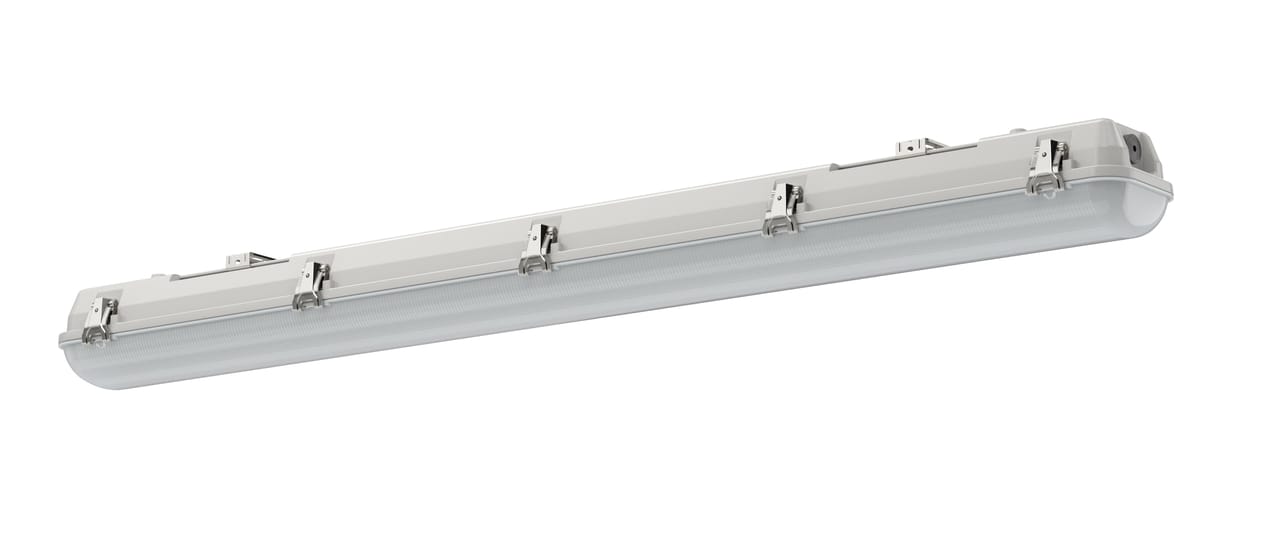

39343-402 Kaptur

Light distribution

Direct

Louvre

Opal

Diffuser

PC

Colour

Grey

Lumen output

7241

CLO function active

Yes

CLO time, h

100000

lm/W

144

CCT, K

4000

CRI

80

SDCM

3

Melanopic DER

0.650

Lumen maintenance 100 000 h

L100

LED driver, h/max failure %

100000/10

Energy class, LED module

C

PstLm

1.000

SVM

0.400

Light control

DALI/Phase-pulse

Driver brand

Philips

DALI generation/adress type

Dali-2/1xDT6

Power on last level

Yes

Corridor function

Yes

Switch control, max no.

30

AM

Yes

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

0, 50, 60

Protective class

1

IP rating

67

IK rating

08

Start W

50

End W

63

Average W

56.5

Stand by W

0.3

Min. ambient temperature, °C

-25

Max. ambient temperature, °C

25

MCB B10A, pcs

11

MCB B16A

18

MCB C10A

18

MCB C16A

30

THD, %

4

Surge protection CM, kV/kA

2

Surge protection DM, kV/kA

1

Leakage current PE

0.400

Power factor, 100 %

0.95

Length, mm

1200

Width, mm

127

Height, mm

107

Weight, kg

3.5
