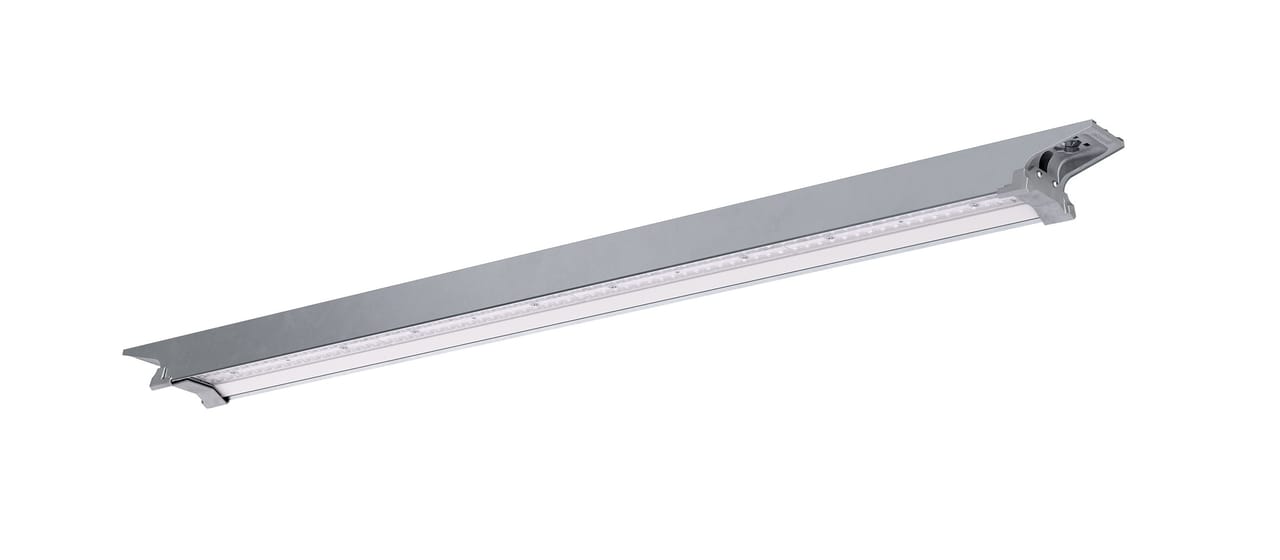

32101-20005 Induflex Sport

Module

1500

Light distribution

Medium Beam

Lumen output

21493

CLO function active

Yes

CLO time, h

100000

lm/W

172

CCT, K

4000

CRI

80

SDCM

3

Melanopic DER

0.570

Lumen maintenance 100 000 h

L100

LED driver, h/max failure %

100000/10

Energy class, LED module

C

PstLm

0.010

SVM

0.010

Light control

DALI/Phase-pulse

Driver brand

Helvar

DALI generation/adress type

Dali-2/1xDT6

Power on last level

Yes

Corridor function

Yes

Switch control, max no.

60

AM

Yes

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

0, 50, 60

Protective class

1

IP rating

23

System Wattage

125

Start W

125

End W

146

Average W

135.5

Stand by W

0.2

Min. ambient temperature, °C

-25

Max. ambient temperature, °C

25

MCB B10A, pcs

13

MCB B16A

21

MCB C10A

22

MCB C16A

36

THD, %

10

Surge protection CM, kV/kA

4

Surge protection DM, kV/kA

4

Leakage current PE

0.500

Power factor, 100 %

0.99

NTC function

False

Length, mm

1668

Width, mm

100

Height, mm

74

Weight, kg

4.7
