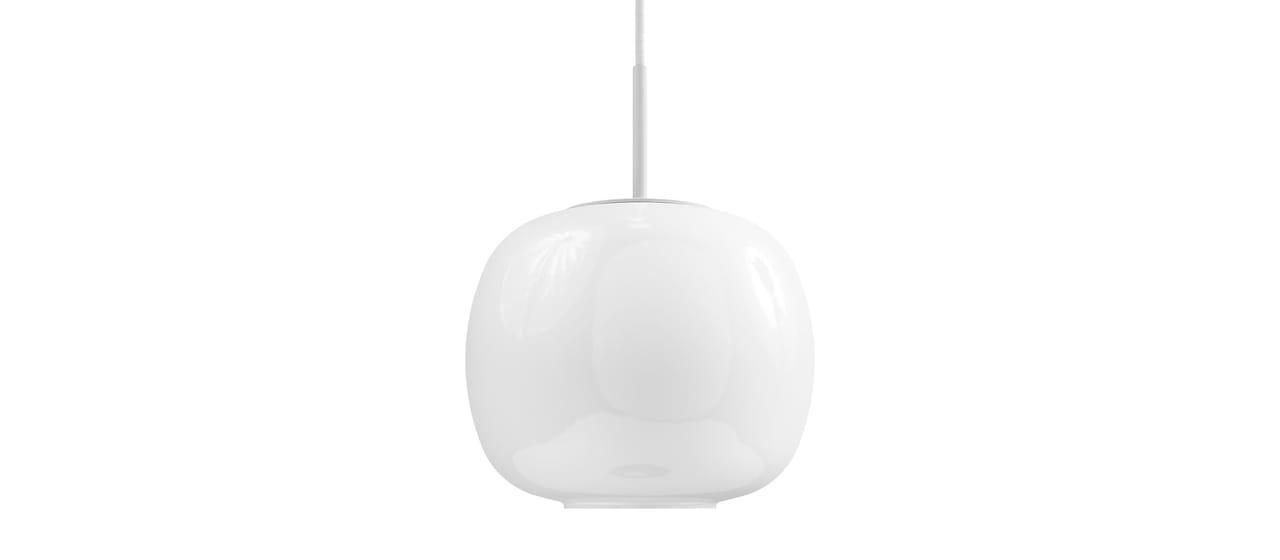

59151-20010 Globia Flow

Installation

Ceiling Cup

Module

300

Light distribution

Round beam

Louvre

Glass

Colour

White

Lumen output

2772

CLO function active

Yes

CLO time, h

50000

lm/W

141

CCT, K

3000

CRI

80

SDCM

3

Melanopic DER

0.450

Lumen maintenance 50 000 h

L100

Lumen maintenance 75 000 h

L88

Lumen maintenance 100 000 h

L84

LED driver, h/max failure %

50000/10

Energy class, LED module

C

PstLm

1.000

SVM

0.400

Light control

DALI/Phase-pulse

Driver brand

Philips

DALI generation/adress type

Dali-2/1xDT6

Power on last level

Yes

Corridor function

Yes

Switch control, max no.

30

AM

Yes

ZD4i Certified

False

Daylight functionality

False

Rated supply voltage, V

220-240

Mains frequency, Hz

0, 50, 60

Protective class

1

IP rating

20

Start W

20

End W

21

Average W

20.5

Stand by W

0.47

Min. ambient temperature, °C

-25

Max. ambient temperature, °C

25

MCB B10A, pcs

21

MCB B16A

34

MCB C10A

35

MCB C16A

57

THD, %

7

Surge protection CM, kV/kA

2

Surge protection DM, kV/kA

1

Power factor, 100 %

0.98

Height, mm

341

Diamater, mm

300

Weight, kg

2.600
