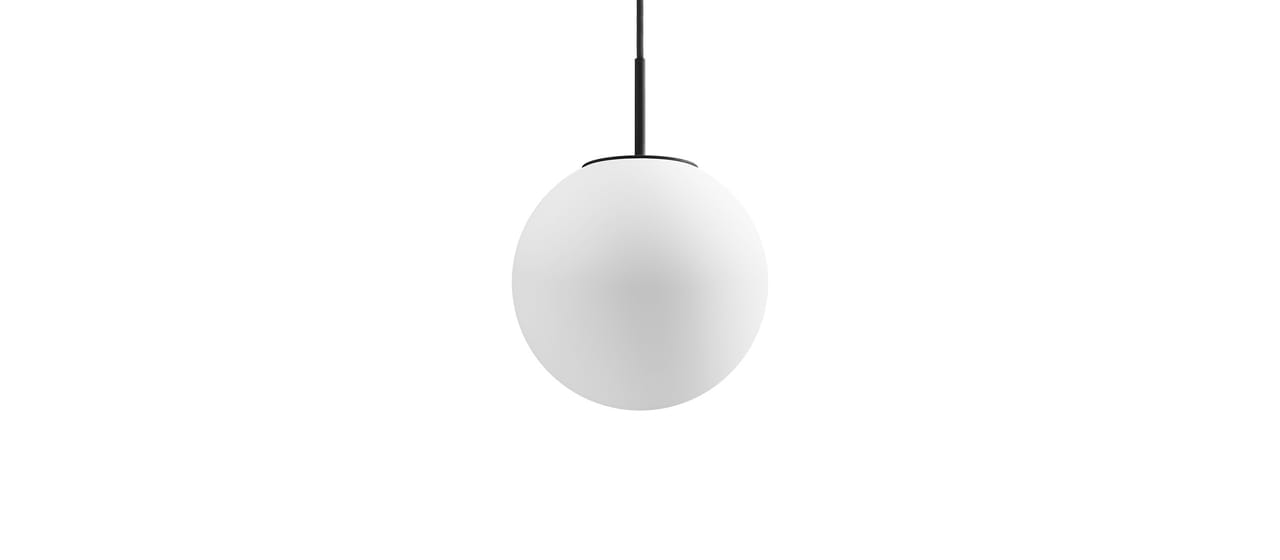

59150-20006 Globia Classic
Documents
Specification
99370Design
Installation
Control Track
Module
300
Light distribution
Round beam
Louvre
Glass
Colour
Black
Light data & performance
Lumen output
2754
CLO function active
Yes
CLO time, h
50000
lm/W
140
CCT, K
3000
CRI
80
SDCM
3
Melanopic DER
0.450
Lumen maintenance 50 000 h
L100
Lumen maintenance 75 000 h
L88
Lumen maintenance 100 000 h
L84
LED driver, h/max failure %
50000/10
Energy class, LED module
C
PstLm
1.000
SVM
0.400
Controls & connectivity
Light control
DALI/Phase-pulse
Driver brand
Philips
DALI generation/adress type
Dali-2/1xDT6
Power on last level
Yes
Corridor function
Yes
Switch control, max no.
30
AM
Yes
ZD4i Certified
False
Daylight functionality
False
Electricity & enclosure
Rated supply voltage, V
220-240
Mains frequency, Hz
0, 50, 60
Protective class
1
IP rating
20
Start W
20
End W
21
Average W
20.5
Stand by W
0.47
Min. ambient temperature, °C
-25
Max. ambient temperature, °C
25
MCB B10A, pcs
21
MCB B16A
34
MCB C10A
35
MCB C16A
57
THD, %
7
Surge protection CM, kV/kA
2
Surge protection DM, kV/kA
1
Power factor, 100 %
0.98
Dimensions
Height, mm
450
Diamater, mm
300
Weight, kg
2.900
Dimensions
Light distribution
Globia
