Discovery8484 Discovery 8484

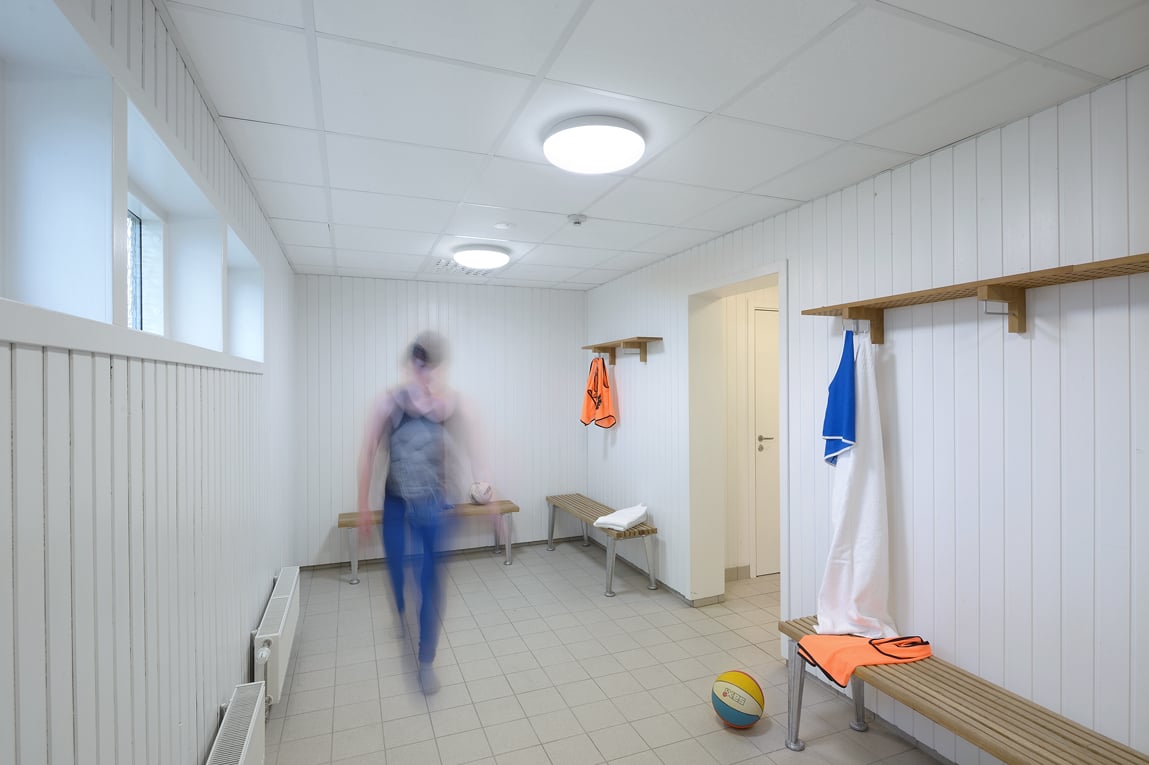

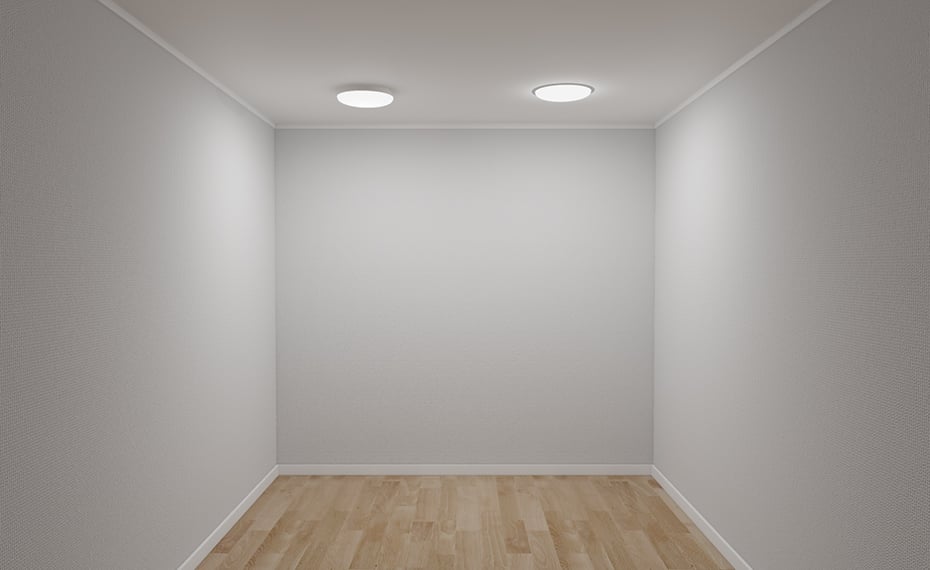

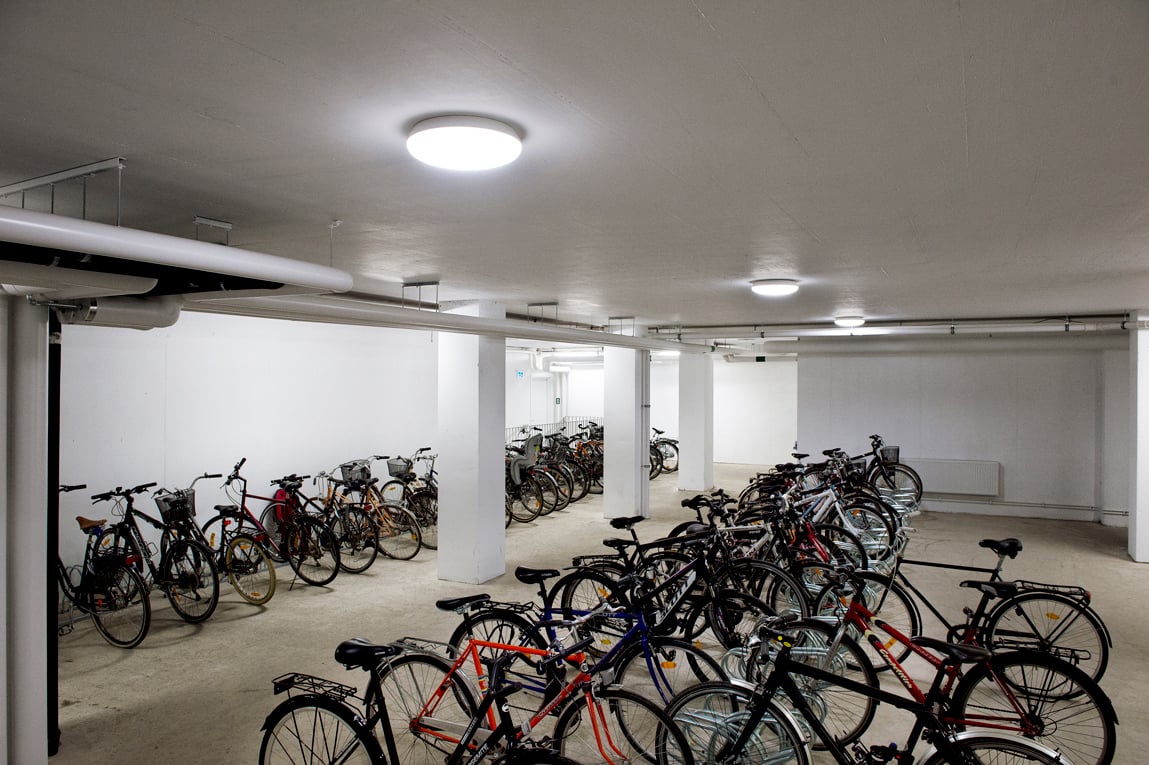

ISCC-certified all-round luminaire in plastic based on renewable materials instead of fossil oil with IP 44 that satisfies needs in more demanding environments. An elegant design with high efficiency that gives a space-creating lighting pattern for stairwells, corridors, kitchens, bathrooms and cellars.

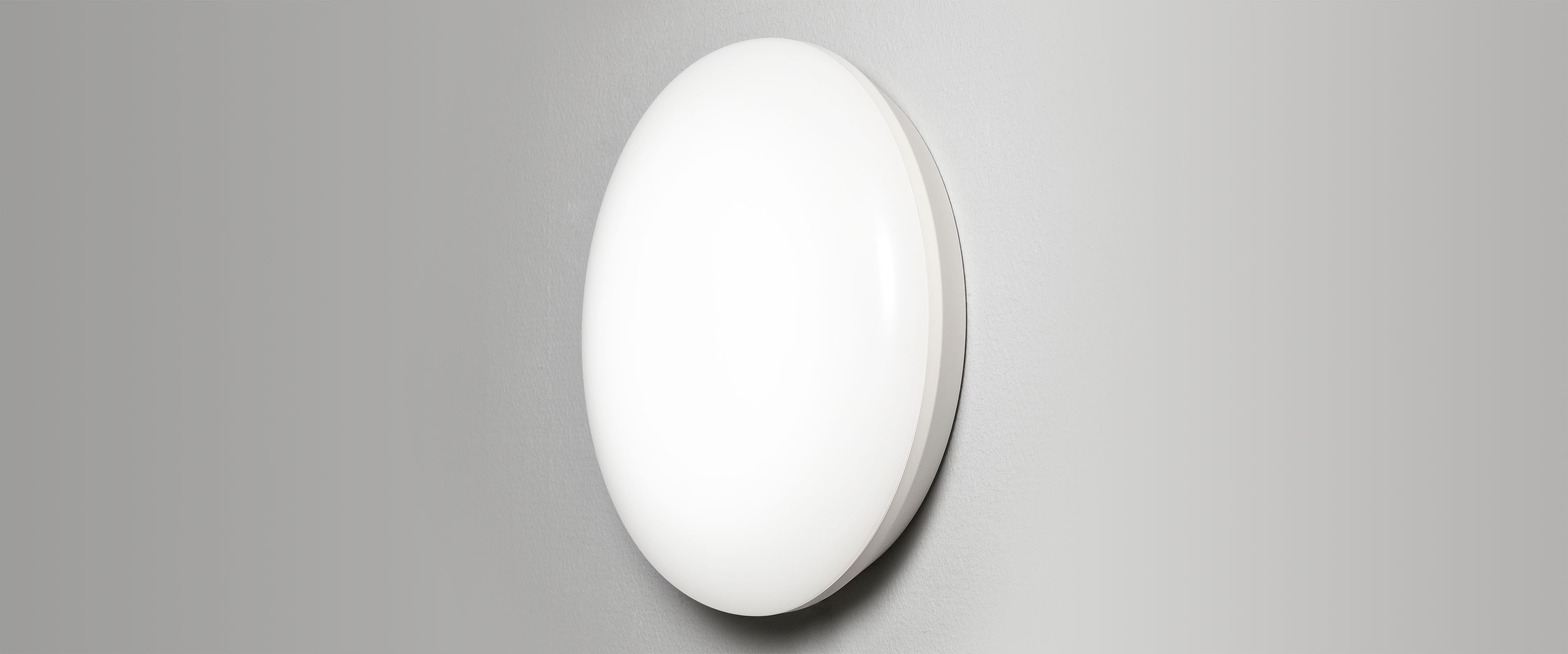

Four securing holes. For recess or surface mounting on ceilings or walls. Brackets for recessed installation ordered separately, please see accessories. There are holes for a surface mounted installation socket.
The luminaire must not be covered with insulation. For further details please refer to the assembly instructions.
230 V integrated LED driver. Snap-in terminal block 5x2.5 mm². 1-phase through-wiring possible. Cable entry at rear or via knockouts for surface mounting, through wiring 0° or 180°.
Luminaire body of polycarbonate and diffuser of opal polycarbonate.
Decentralised emergency lighting luminaire, 3 h, with self-test AT4 and the possibility to connect a monitoring system based on communication via DALI. The system is not dependent on a DALI system being connected or in operation. Emergency lighting luminaires can be supplemented with sensor on request.
e-Sense BrightSwitch – PIR sensors with lux threshold. Presence control on/off. Absence dimming high/low available on request.
e-Sense Detect – Microwave sensors with lux threshold. Presence control on/off via relay or high/low, alternatively high/low/off via DALI.
e-Sense Flex – Integrated sensors with ambient light sensor. Presence/absense control high/low/off. Wireless communication via Bluetooth mesh. Suffix -569 equipped with microwave sensor.
Organic Response – PIR sensor with presence and daylight control. All luminaires act as master/slave with IR communication.

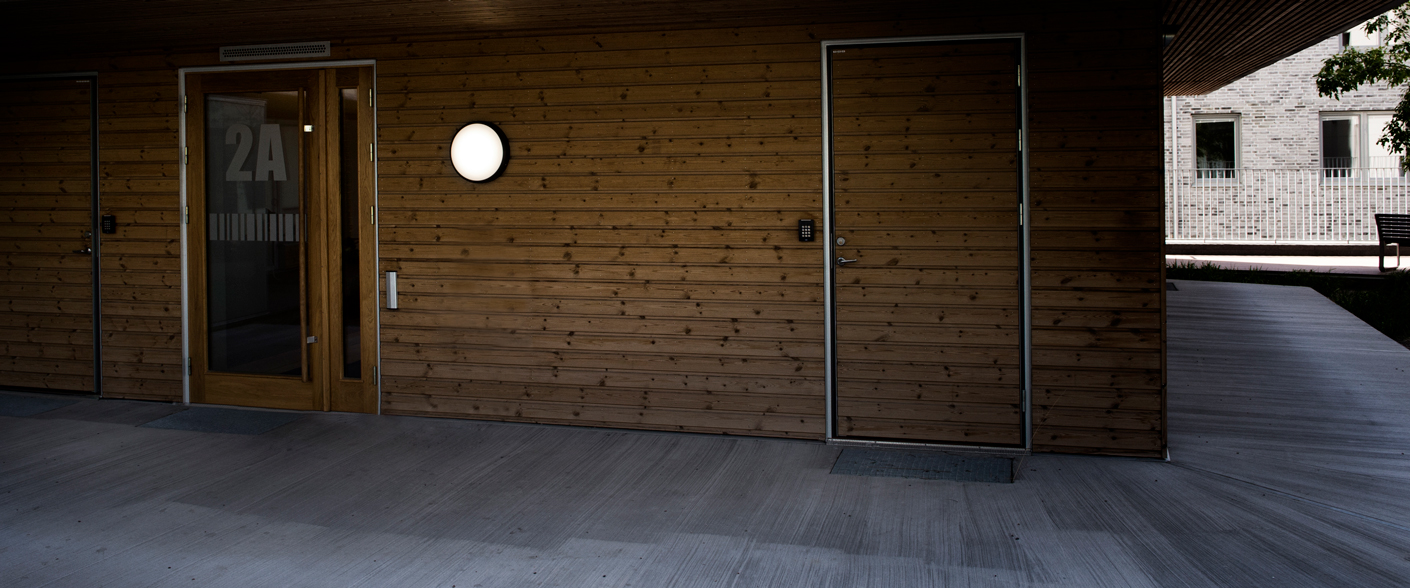

Anti-ligature casing in white enamelled aluminium. Supplied with safety screws (tamper-proof torx) IK10, IP 55. Outdoor casing in lacquered aluminium, IK10, IP 55 with the possibility of a surface mounted mains cable.
CLO (Constant Light Output) means that the luminaire provides the same amount of light for the duration of its specified burn-time.
Fagerhult has now made it even easier for you to make a sustainable choice for your lighting solution. In our updated luminaire Discovery (replacing the previous Discovery EVO), the plastic is based on renewable raw materials...More about the family Discovery
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
|Remote control e-Sense BrightSwitch||Remote control||86359|

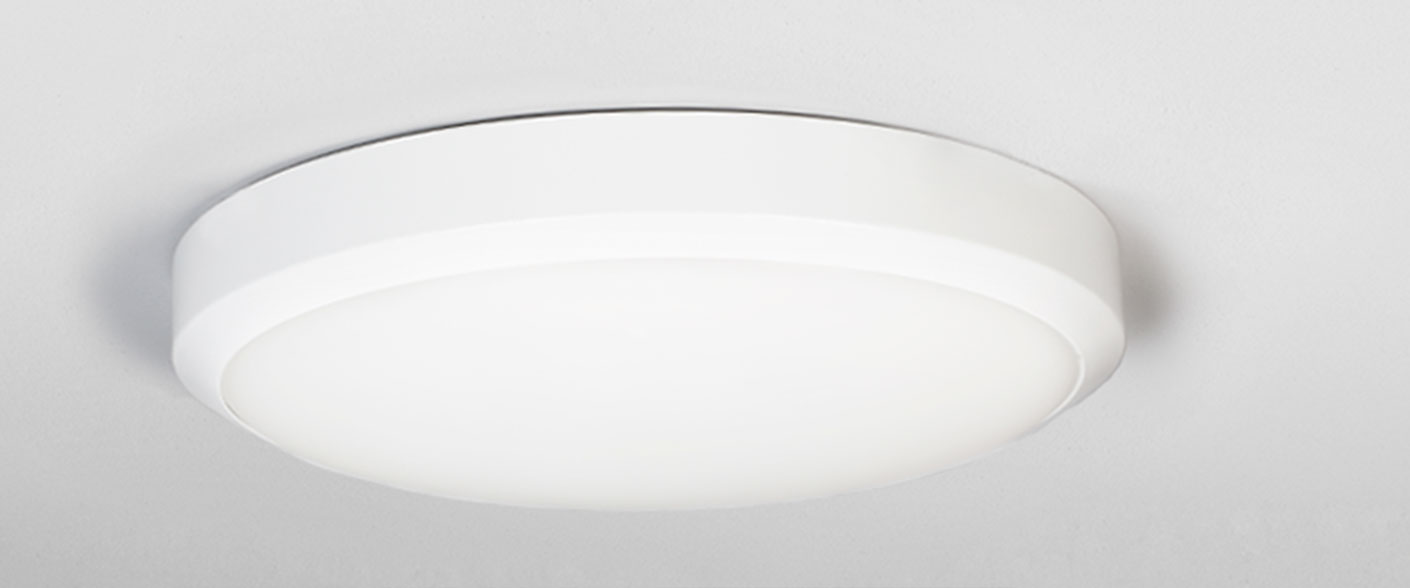

|Outdoor casing IK10||Outdoor casing IK10, IP 55, white (RAL 9010).||92653|

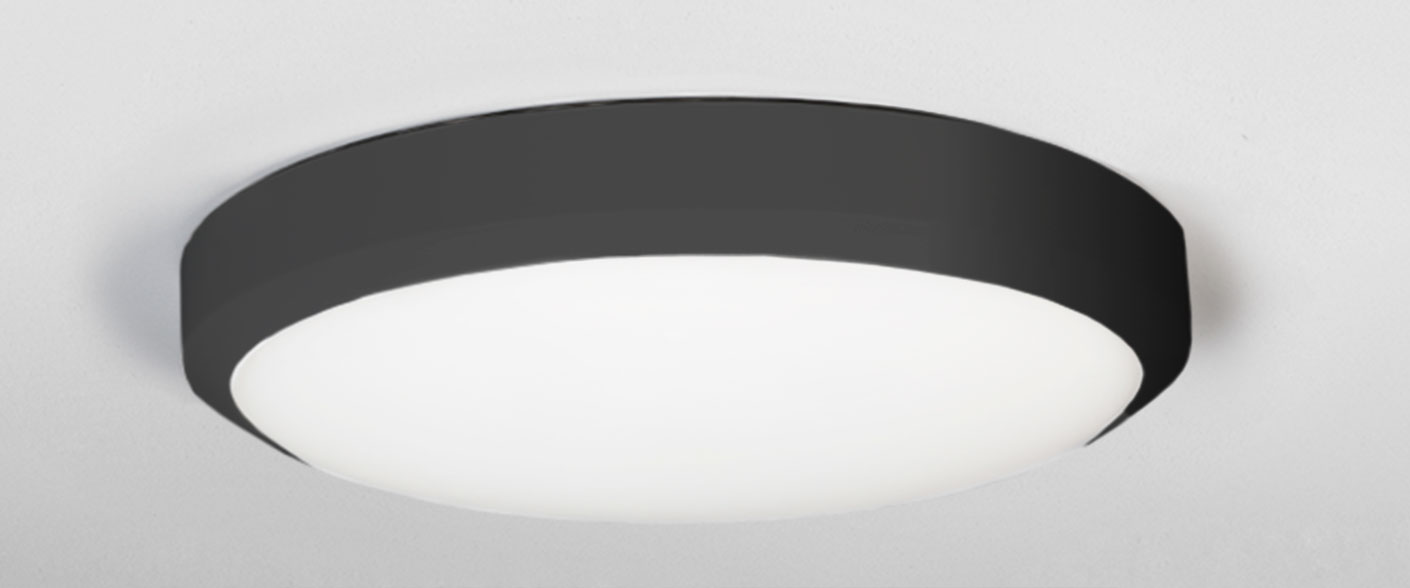

|Outdoor casing IK10||Outdoor casing IK10, IP 55, anthracite grey (Gris 900 Sablé structured).||92654|

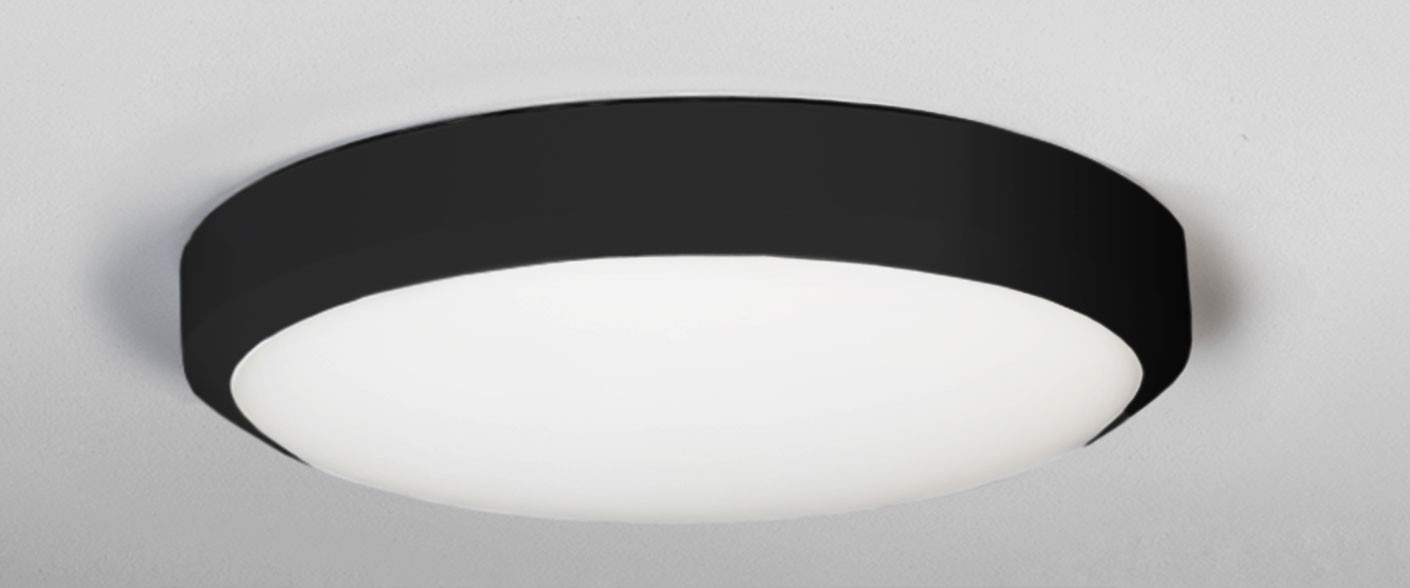

|Outdoor casing IK10||Outdoor casing IK10, IP 55, black (RAL 9005 structured).||92655|

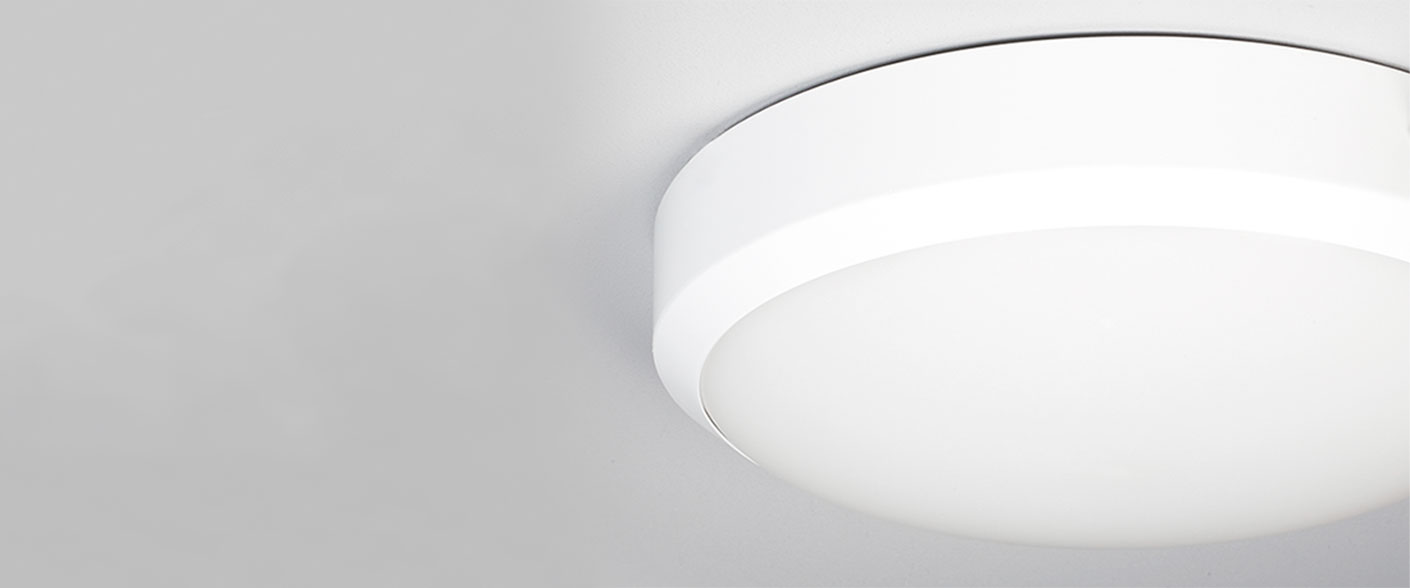

|Anti-ligature casing IK10||Anti-ligature casing IK10, IP55, white.||92651|
|Mounting plate Discovery||Mounting plate for recessed installation in soft tile suspended ceilings.||92652|
|Strain relief||Strain relief||92657|

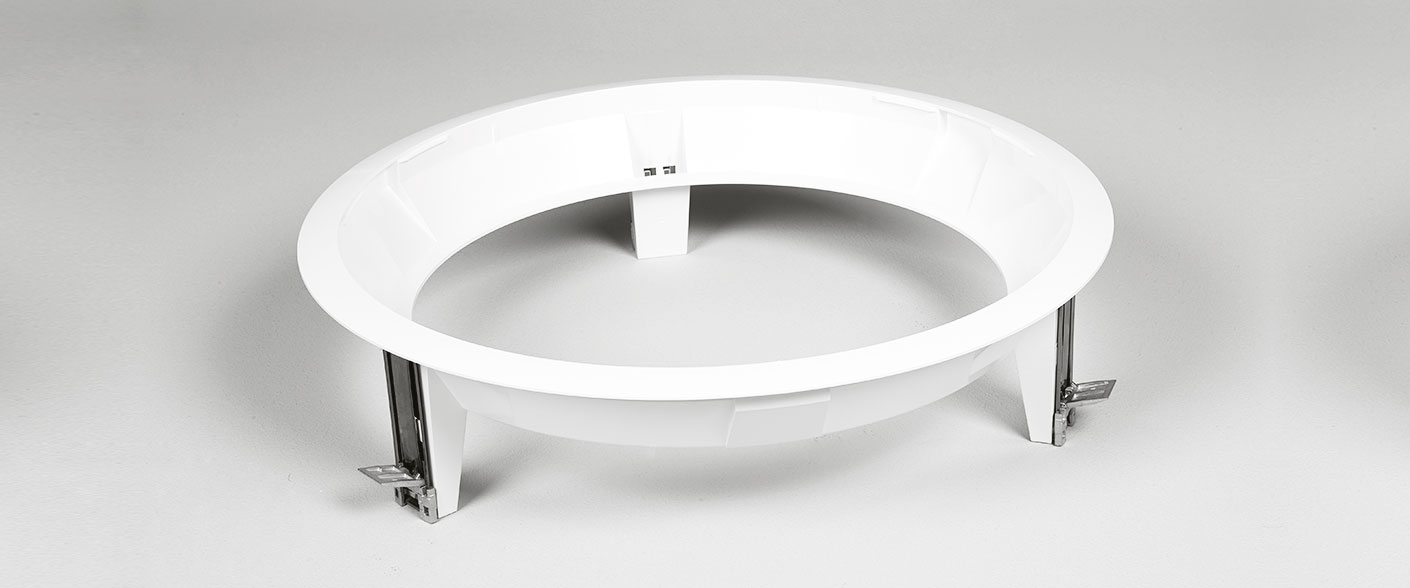

|Recess ring||Recess rings including spring clips for recess mounting.||92658|
|Recess ring IP44||Recess rings including spring clips for recess mounting IP44.||92659|
