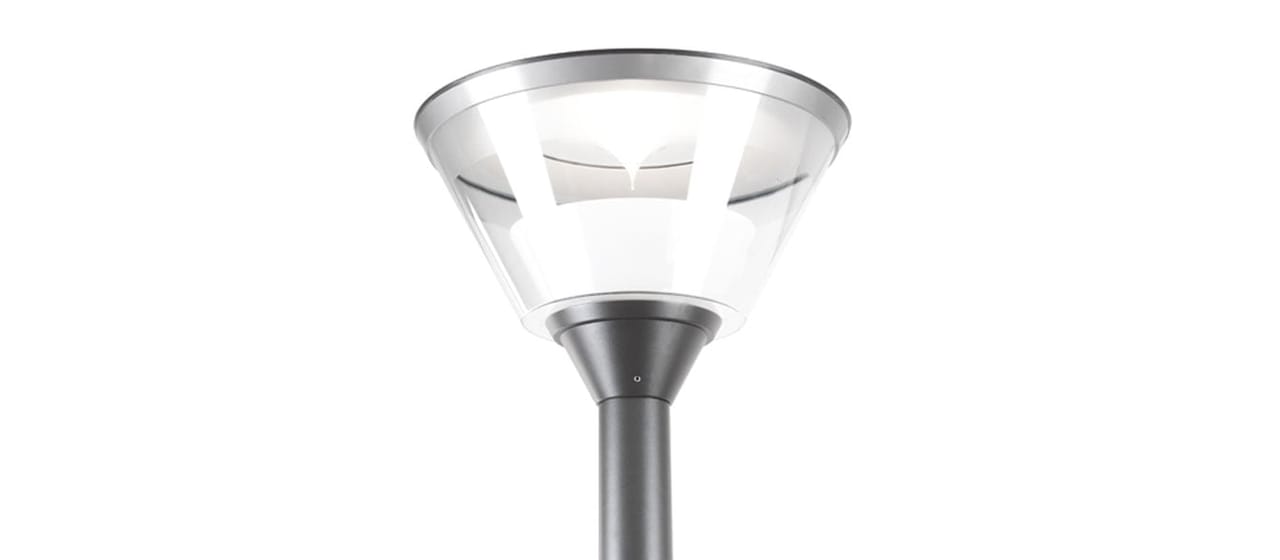

300332-461 Azur Post
Documents
Specification
3008Design
Colour
Anthracite grey
Light data & performance
Lumen output
1441
CLO function active
Yes
CLO time, h
50000
lm/W
60
Light source colour
830
CCT, K
3000
CRI
80
SDCM
3
Lumen maintenance 50 000 h
L100
Lumen maintenance L100 B50, h
50000
LED driver, h/max failure %
100000/10
Energy class, LED module
E
Controls & connectivity
Light control
DALI
ZD4i Certified
False
Daylight functionality
False
Electricity & enclosure
Protective class
2
IP rating
65
IK rating
10
Start W
24
End W
27
Average W
25.5
Min. ambient temperature, °C
-25
Max. ambient temperature, °C
25
THD, %
8
Power factor, 100 %
0.99
Projected wind area, m2
0.115
NTC function
Yes
Dimensions
Height, mm
400
Diamater, mm
577
Weight, kg
11.400
Dimensions
Light distribution
Azur

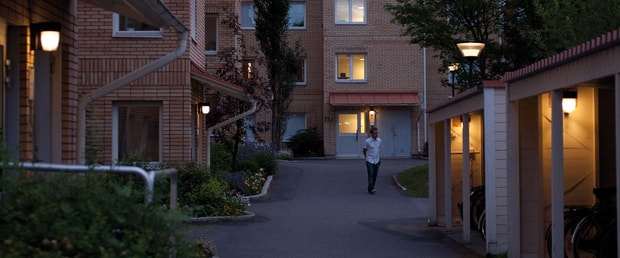

Azur is a luminaire family with a consistent, contemporary design. Post, ceiling and wall variations are all based on a vertical light for optimal lighting comfort. This indirect light combined with opal surfaces gives soft,...
More about the family Azur
