Pozzo RobustRecessed

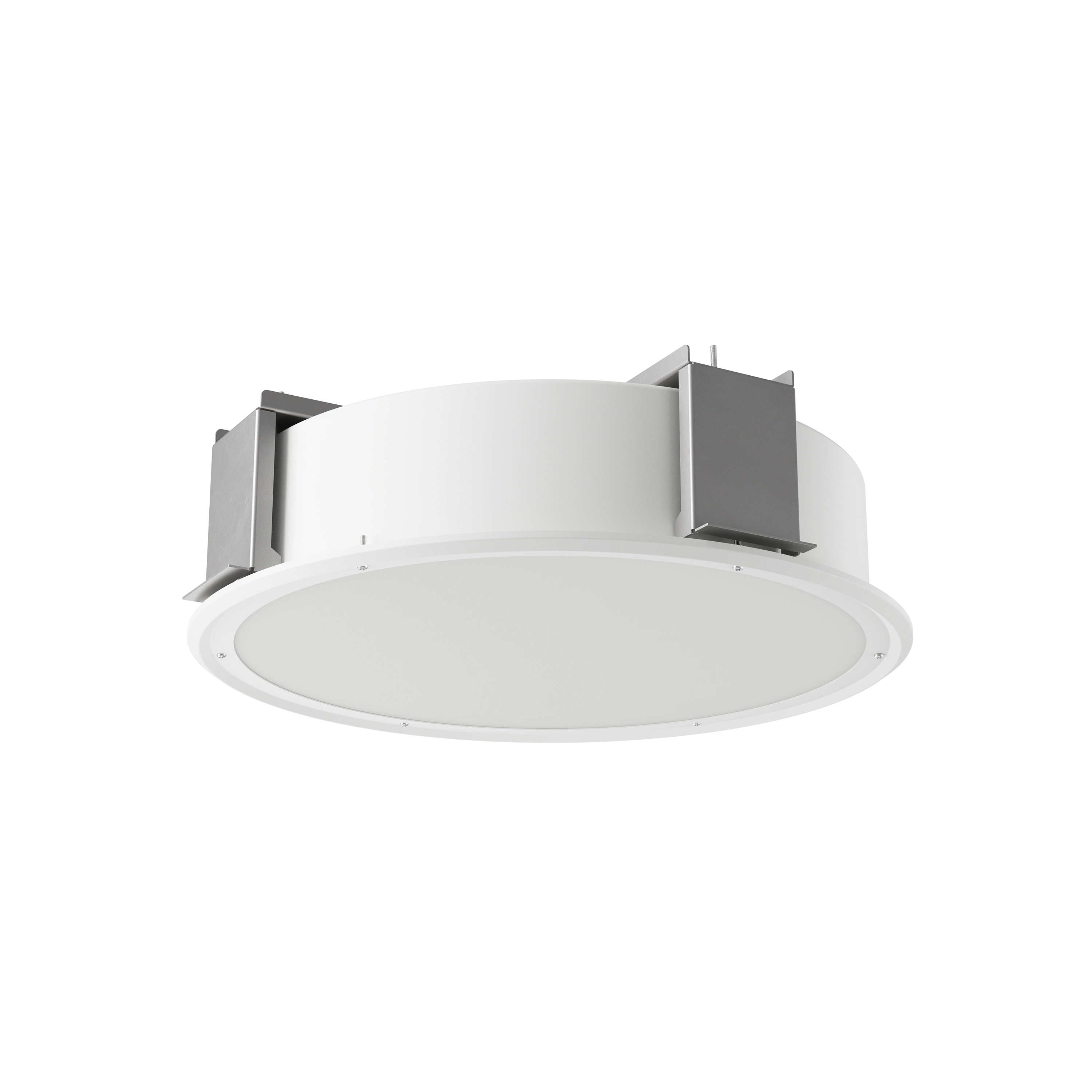

Pozzo Robust is a recessed luminaire that is impact-resistant to IK 10 standard, for environments with additional safety and security requirements. The bevelled edge provides soft luminance transitions towards the ceiling. Security screw to prevent unauthorised access.
Pozzo RobustRecessed
Pozzo Robust is a recessed luminaire that is impact-resistant to IK 10 standard, for environments with additional safety and security requirements. The bevelled edge provides soft luminance transitions towards the ceiling. Security screw to prevent unauthorised access.
Installation
Luminaire for recessed installation in suspended ceilings. Unventilated or ventilated suspended ceilings. Stable assembly arms included. When installing in soft tile ceilings, mounting plates must be used, see Accessories. Do not cover with insulation. Luminaire body Class III. The supplied driver must be connected to the protective earth. For detailed information, see the installation instructions.
See installation video PozzoConnection
For permanent connection in separate driver box. Snap-in terminal block 3x2.5 mm² (x2), through-wiring possible. 5x2.5 mm² (x2) for dimming. Can also be supplied with chassis mounted snap-in connector in the driver where a T-splitter or earthed mains cable and plug are possible. The luminaire body and driver are interconnected with a quick connection system. Luminaires with Tunable White (2700–6500K) and Tunable White Melanopic (1800/2700–6500K) are equipped with the DALI Device Type 8 driver. Luminaire body Class III. The supplied driver must be connected to the protective earth. CLO (Constant Light Output).
Design
Luminaire body in deep drawn aluminium. White (RAL 9016) structured lacquer. Stable front ring in lacquered sheet steel in white (RAL 9016) structured lacquer. The front ring is fastened with a safety screw to prevent access and disassembly.
Light Distribution
Direct.
Light data
Optics
Opal – louvre in impact-resistant polycarbonate (PC)
Twin Dual Driver
The product can be powered by the Twin Dual Driver, a driver that powers two luminaires. With streamlined electronics and an updated material composition, we have reduced the overall climate impact of the driver by 49%, while maintaining safety, faster installation and easier product use.
Constant Light Output (CLO)
The luminaire is available with Constant Light Output (CLO), providing the right level of light throughout it’s working life and thereby reducing energy consumption. CLO can save up to 36% energy compared to L70. It is also often the case that fewer luminaires are needed, reducing investment and operating costs as well as climate impact.
Made in Sweden
The product is manufactured in Fagerhult’s factory in Habo, Sweden. The production process has a low climate impact, using energy from 100% renewable sources. Local manufacturing ensures clean production, high quality, reduced transportation and good working conditions.
DALI/Phase pulse control
Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.
On/Off
Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.
