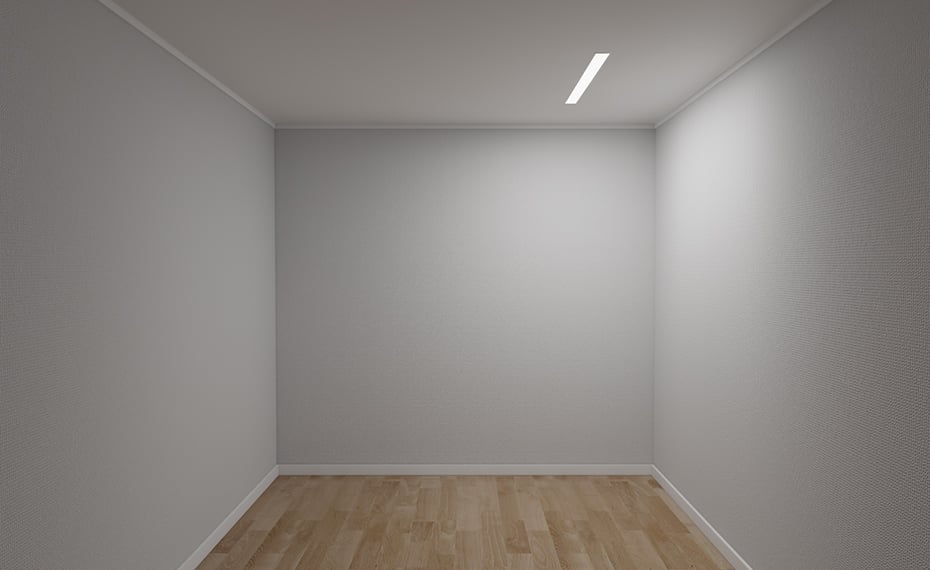

A recessed luminaire for all types of suspended ceilings. Single or continuous installation.
Luminaire for mounted in ventilated or unventilated suspended ceilings. Installed in suspended ceilings with visible T-bars, VTB (15 or 24 mm) or one-piece suspended ceilings. Accessories available for installation in a concealed T-bar structure (HB) with symmetrically positioned panels. For continuous installation with combinations of asymmetric/Control Track Unit and Delta/Opal flush, see documents below.
Connection by means of a connection box on top of the luminaire. Wieland Chassis connector 3-way (GST 18i3), with dimming 5-way (GST 18i5). In a continuous installation the luminaire row should always start with a start luminaire. With continuous installation the luminaire units are interconnected with a connection cable in the connection box.

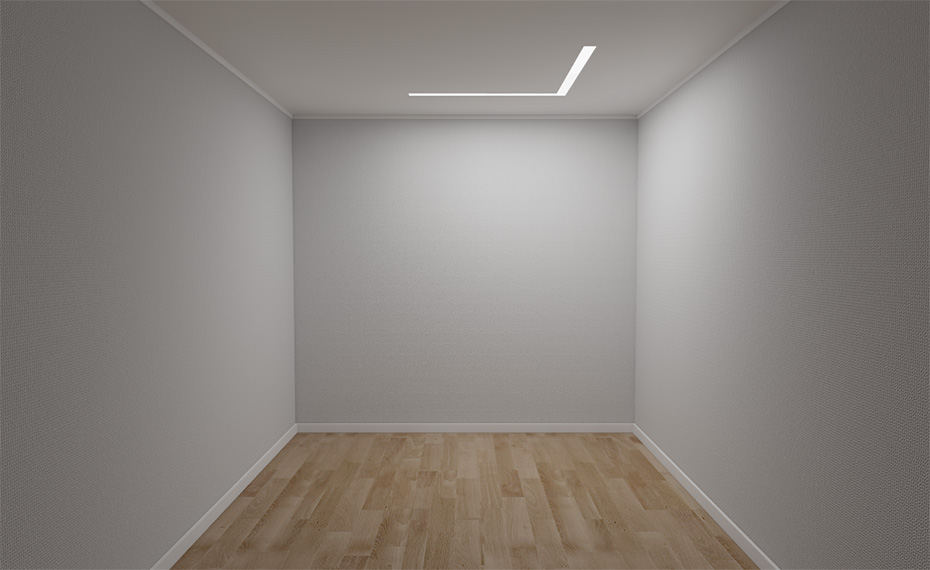

Luminaire body in natural anodised, extruded aluminium or white enamelled (RAL 9016). With continuous installation an unbroken line of light is achieved, even via a L-coupling.
Opal – plate in frosted acrylic (PMMA).
End caps are ordered separately (not included).
Accessories and cables, see Accessories.
To calculate how many luminaires and accessories you will need to complete a run, please use our configurator.
NOTE! Do not mix Low Lumens (LL)- and High Lumen (HL)-luminaires in continuous installations.

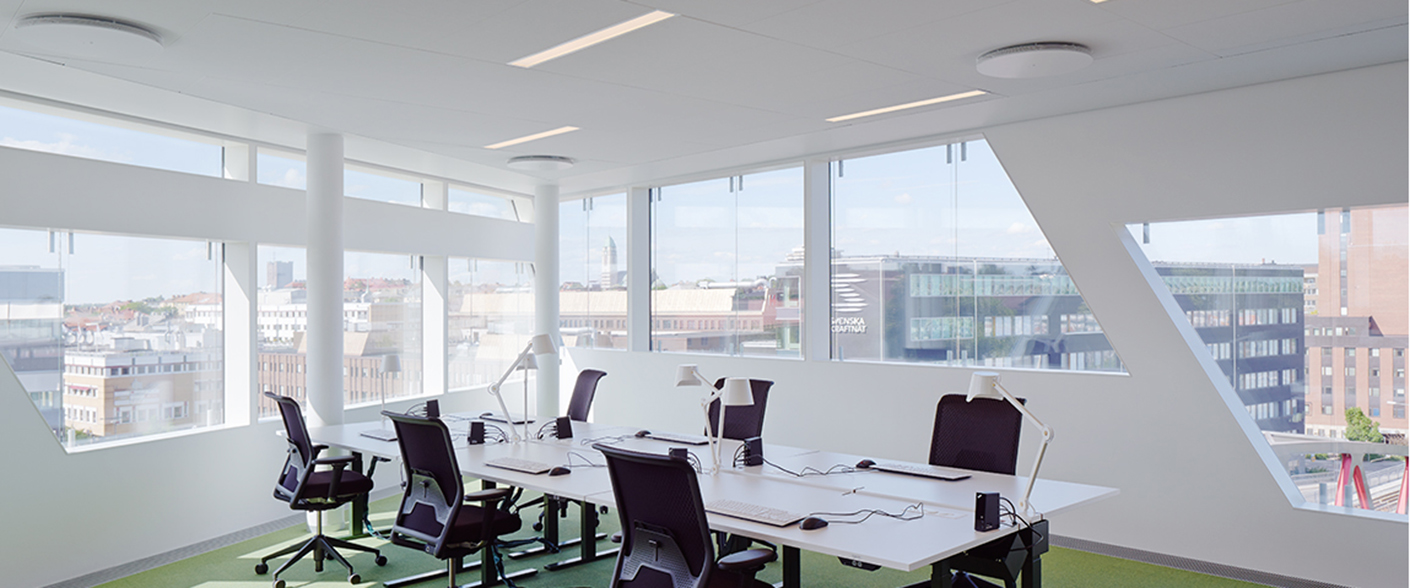

Fagerhult’s classic interior luminaire Notor is available in several versions for suspended, surface mounted or recessed installation. Notor is an obvious choice in contexts when there is a desire to create long, unbroken lines...More about the family Notor recessed
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
|Dummy section||Dummy section 600 mm, Opal flush, Delta, Beta Opti – white||91127|
|Dummy section||Dummy section 600 mm, Opal flush, Delta, Beta Opti – anodised||91125|
|Carrier rail||Carrier rail/pair. L=600 mm.||91148|
|End-cap||End cap/pair, Flat alu-zinc for 600 mm body in VTB ceiling||91043|
|End-cap||End-cap/pair, Delta, Beta Opti, Opal flush, White||91128|
|End-cap||End-cap/pair, Delta, Lamell, Beta, Opal flush, Anodised||91053|
|Wire||50.0 m wire||91496|
|Screws||Screws 500 pcs B8x6,5. (10 pcs/m needed).||91142|
|Luminaire rail||Notor rail L=1800/each, excl. screws||91141|
|Luminaire rail||Notor rail L=1120 mm/pair, incl. screws||91144|
|Luminaire rail||Notor rail 520 mm/pair, incl. screws||91145|
|Suspension bracket, Ecophon||Suspension bracket/pair, Ecophon excl. friction lock||91149|
|Suspension bracket, Rockfon||Suspension bracket/pair, Rockfon, with friction lock.||91146|
|Suspension bracket||Suspension bracket/pair||91147|
|Wieland connection cables, 3-way||Length 1.0 m with female and male connectors, 3x1,5 mm²||91791|
|Wieland connection cables, 3-way||Length 3.0 m with female and male connectors, 3x1,5 mm²||91793|
|Wieland connection cables, 3-way||Length 2.5 m with female and male connectors, 3x1,5 mm²||91074|
|Wieland connection cables, 3-way||Length 2.0 m with female and male connectors, 3x1,5 mm²||91792|
|Wieland connection cables, 5-way||Length 3.0 m with female and male connectors, 5x1,5 mm²||91031|
|Wieland connection cables, 5-way||Length 2.5 m with female and male connectors, 5x1,5 mm²||91077|
|Wieland connection cables, 5-way||Length 2.0 m with female and male connectors, 5x1,5 mm²||91076|
|Mains cable||Mains cable, L=2.0 m, female with earthed plug||91790|
|Mains cable||Mains cable, female, length 2.0 m||91022|
|Mains cable||Mains cable, L=2.0 m, female excl. plug||91789|
|Wieland connection cables, 5-way||Length 1.0 m with female and male connectors, 5x1,5 mm²||91030|
|Mounting bracket||Mounting bracket/pair||91045|
