Notor recessed LED Opal dropped
18210 Notor recessed 18210

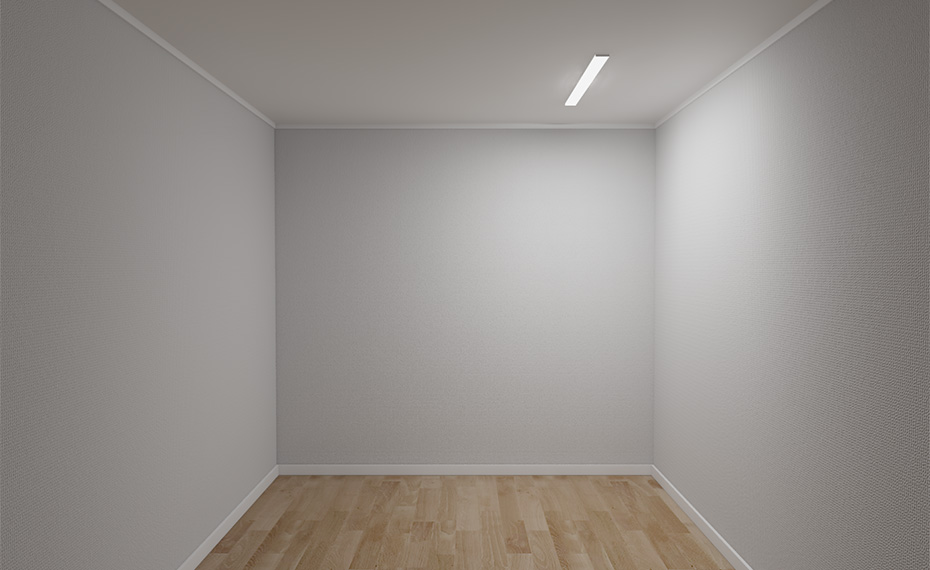

A recessed luminaire for all types of suspended ceilings. The opal louvre lowers the suspended ceiling's surface and creates ambient light on the ceiling. Single or continuous installation.
Installation
Luminaire for mounted in ventilated or unventilated suspended ceilings. Installed in suspended ceilings with visible T-bars, VTB (15 or 24 mm) or one-piece suspended ceilings. Accessories available for installation in a concealed T-bar structure (HB) with symmetrically positioned panels.
Connection
Connection by means of a connection box on top of the luminaire. Wieland Chassis connector 3-way (GST 18i3), with dimming 5-way (GST 18i5). In a continuous installation the luminaire row should always start with a start luminaire. With continuous installation the luminaire units are interconnected with a connection cable in the connection box.
Design

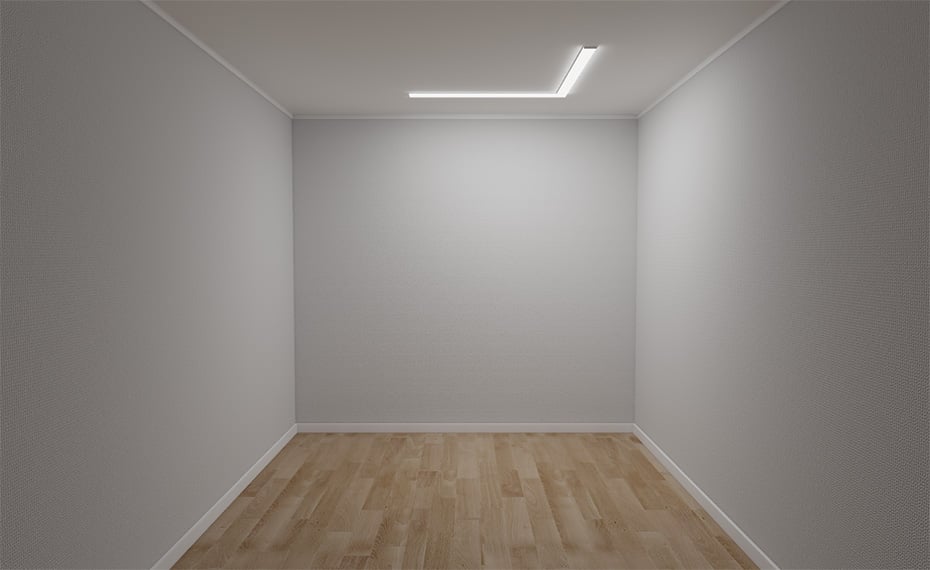

Luminaire body in natural anodised, extruded aluminium or white enamelled (RAL 9016). With continuous installation an unbroken line of light is achieved, even via a L-coupling.
Louvre
Opal – plate in frosted acrylic (PMMA). The louvre hangs down 10 mm from the ceiling and provides ambient luminance to ceiling and wall.
Accessories
End caps are ordered separately (not included).
Miscellaneous
A start luminaire used as a single installation is IP 44 from below, when both cover plates are used. Continuous installation, IP 40 under suspended ceiling, IP 20 above. Accessories and cables, see Accessories.
To calculate how many luminaires and accessories you will need to complete a run, please use our configurator.
NOTE! Do not mix Low Lumens (LL)- and High Lumen (HL)-luminaires in continuous installations.
Media
Dummy section.
Notor Recessed
Notor Recessed
Notor Recessed
Notor Recessed
Notor recessed

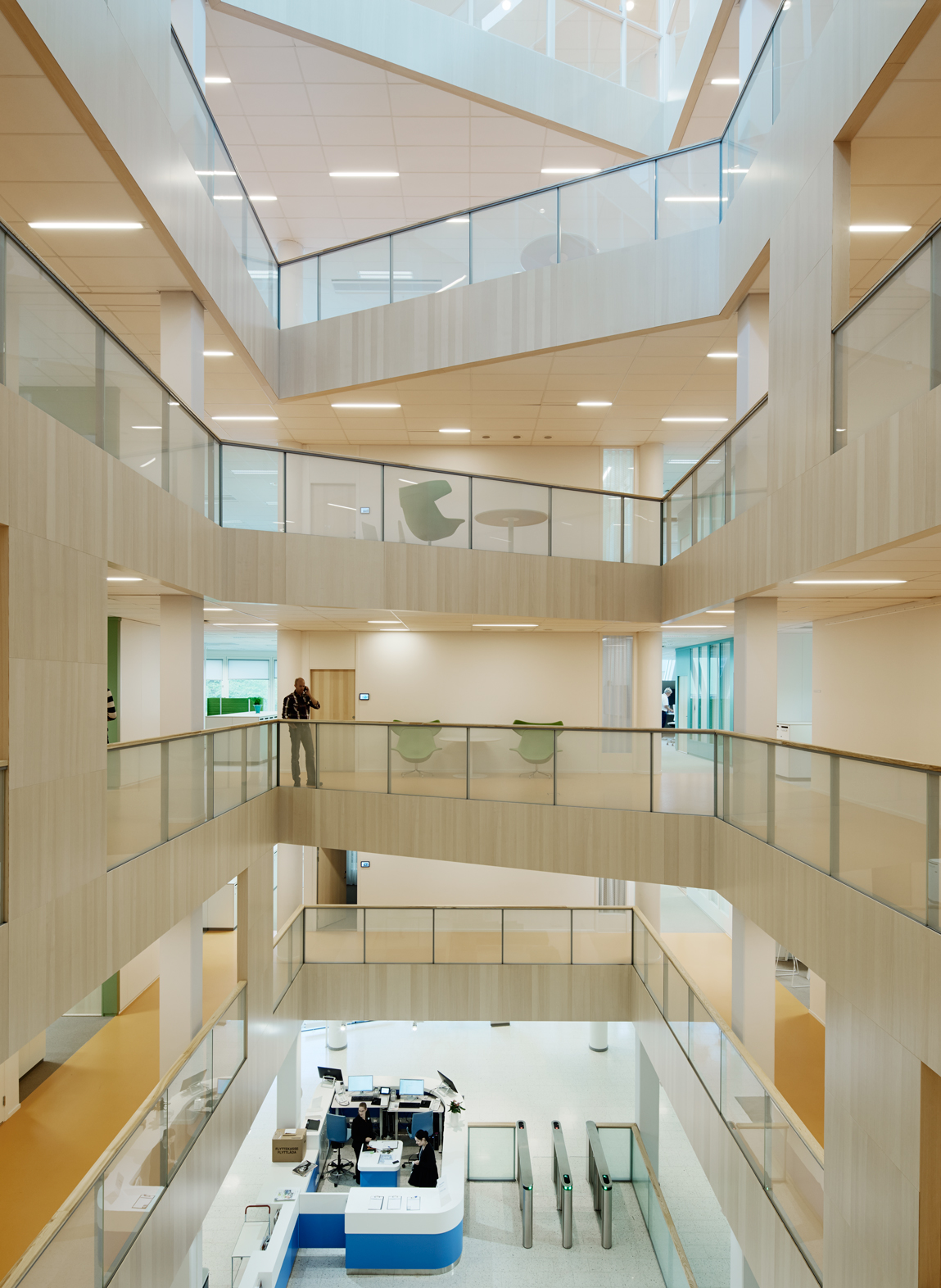

Fagerhult’s classic interior luminaire Notor is available in several versions for suspended, surface mounted or recessed installation. Notor is an obvious choice in contexts when there is a desire to create long, unbroken lines...
More about the family Notor recessed
Document
Specification
Loading...
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |
|

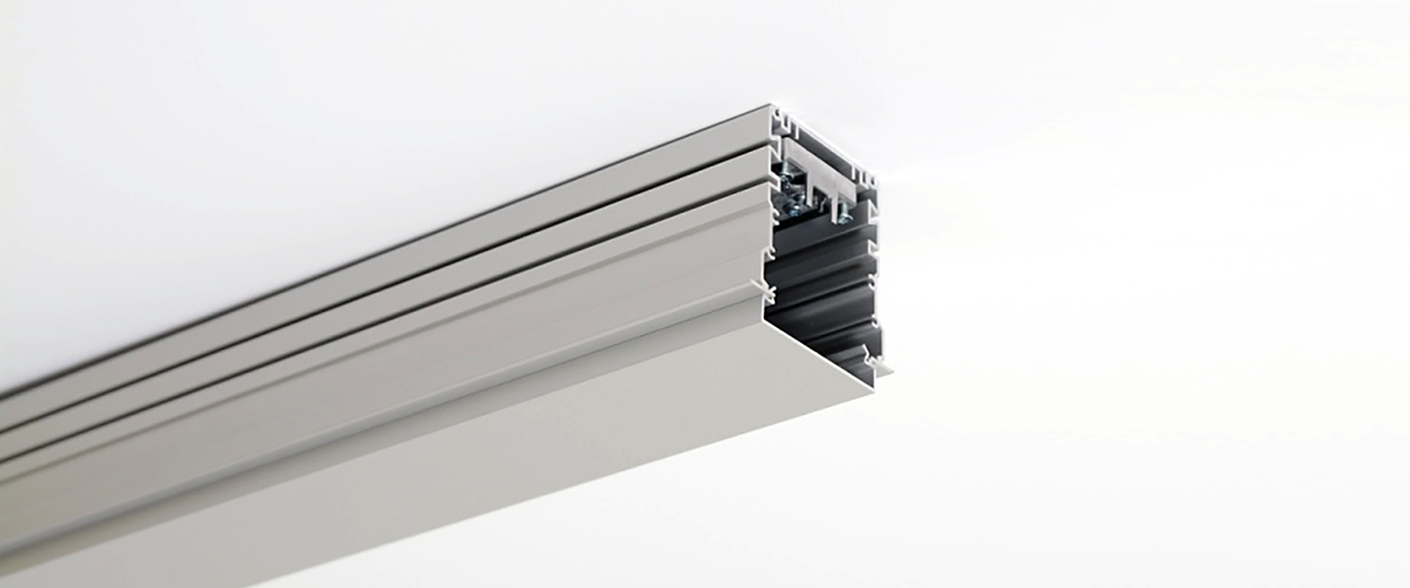

Dummy section | Dummy section 600 mm, Opal dropped, Anodised | 91120 |
|

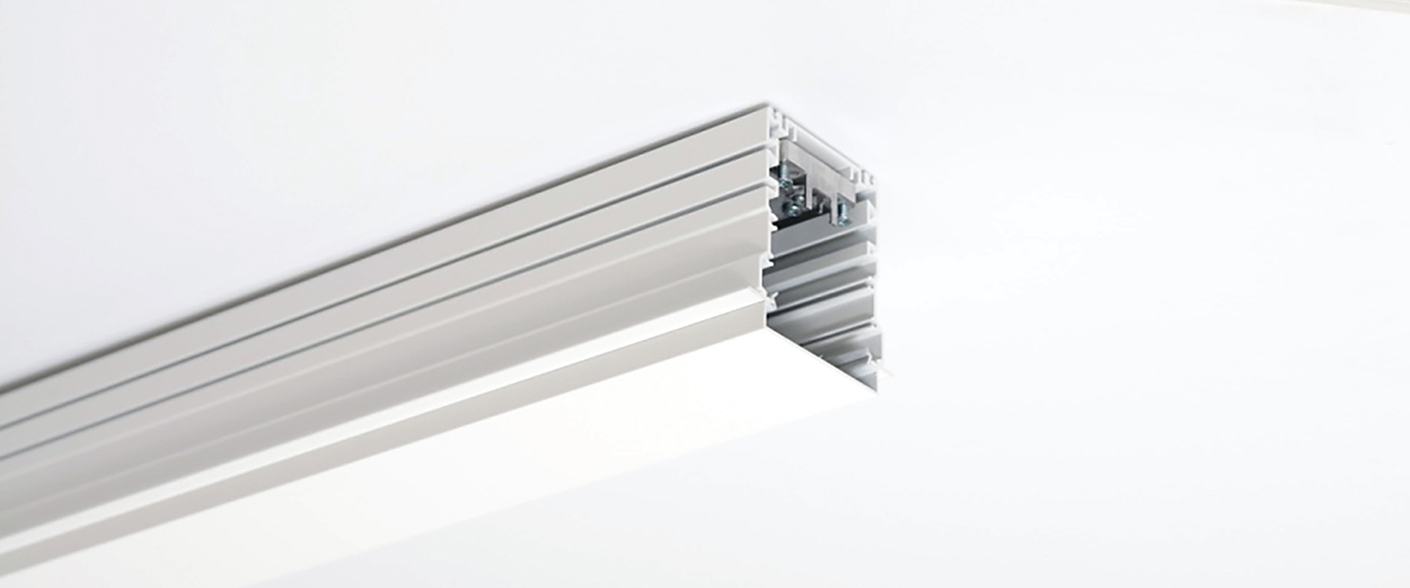

Dummy section | Dummy section 600 mm, Opal dropped, White | 91122 |
|
Cover unit, Opal | Cover plate/pair provides IP 44 on dropped opal start luminaire used single installation. Cover plate comes with start luminaire. Anodised | 91055 |
|
Cover unit, Opal | Cover plate/pair provides IP 44 on dropped opal start luminaire used single installation. Cover plate comes with start luminaire. White | 91130 |
|
Carrier rail | Carrier rail/pair. L=600 mm. | 91148 |
|
End-cap | End-cap/pair, Opal, Opal dropped, White | 91129 |
|
End-cap | End-cap/pair, Opal, Opal dropped, Anodised | 91054 |
|
Wire | 50.0 m wire | 91496 |
|
Screws | Screws 500 pcs B8x6,5. (10 pcs/m needed). | 91142 |
|
Luminaire rail | Notor rail L=1800/each, excl. screws | 91141 |
|
|
Luminaire rail | Notor rail L=1120 mm/pair, incl. screws | 91144 |
|
|
Luminaire rail | Notor rail 520 mm/pair, incl. screws | 91145 |
|
Suspension bracket, Ecophon | Suspension bracket/pair, Ecophon excl. friction lock | 91149 |
|
Suspension bracket, Rockfon | Suspension bracket/pair, Rockfon, with friction lock. | 91146 |
|
Suspension bracket | Suspension bracket/pair | 91147 |
|
Wieland connection cables, 3-way | Length 1.0 m with female and male connectors, 3x1,5 mm² | 91791 |
|
|
Wieland connection cables, 3-way | Length 3.0 m with female and male connectors, 3x1,5 mm² | 91793 |
|
|
Wieland connection cables, 3-way | Length 2.5 m with female and male connectors, 3x1,5 mm² | 91074 |
|
|
Wieland connection cables, 3-way | Length 2.0 m with female and male connectors, 3x1,5 mm² | 91792 |
|
Wieland connection cables, 5-way | Length 3.0 m with female and male connectors, 5x1,5 mm² | 91031 |
|
|
Wieland connection cables, 5-way | Length 2.5 m with female and male connectors, 5x1,5 mm² | 91077 |
|
|
Wieland connection cables, 5-way | Length 2.0 m with female and male connectors, 5x1,5 mm² | 91076 |
|
Mains cable | Mains cable, L=2.0 m, female with earthed plug | 91790 |
|
Mains cable | Mains cable, female, length 2.0 m | 91022 |
|
Mains cable | Mains cable, L=2.0 m, female excl. plug | 91789 |
|
|
Wieland connection cables, 5-way | Length 1.0 m with female and male connectors, 5x1,5 mm² | 91030 |
|
Mounting bracket | Mounting bracket/pair | 91045 |
