Evolume 75
84163 Evolume 84163
Lamppost luminaire with high performance and light comfort. Optimised beam with AGC lenses designed for road lighting. CLO by default for constant luminous flux over the working life of the luminaire. The luminaire has selectable properties to minimise the impact on the environment: Bioinclusive Lighting.
Installation
Luminaire for installation on Ø48-60 mm post tops or post arms. Accessories for other installation cases are ordered separately: see Accessories. Tiltable ±15º.
Connection
Connecting cable is available in different variants and lengths; these are selectable in Fagerhult Configure.
Design
Luminaire housing and post bracket made of recycled diecast aluminium. Aluzink-treated stainless steel screws. Integrated heatsinks for increased efficiency. Screen-printed, hardened flat glass.
Optics
AGC-lenses (Advanced Glare Control). The E-lens are designed to focus on illuminance. L lenses are ideal if the luminance from the ground is the main priority. The AGC lenses are integrated with a reflector for increased efficiency and light comfort. Plates for backlight screening are available on request. Luminaire variant with optics for pedestrian crossings is available on request.
Dimming
Citygrid – PIR sensors with presence detection. Wireless communication via radio protocol. Citygrid Linked – a wireless system for one or more luminaires. Can be up-graded to Citygrid Connected. Citygrid Connected – a web-based solution with the ability to remotely control and review the lighting via a cloud hosted gateway which interacts with the installation. An additional subscription is required. Citygrid-products, see accessories. DALI variant and night-time dimming are selectable in the configurator.
Standard colour
The luminaire is available in several standard colours; these are selectable in the configurator. Other colours on request.
LED-information
Driver with integrated surge protection, CM 8kV, DM 6kV.
Extra surge protection on 10 kV available on request.
Miscellaneous
Available in Classes 1 and 2. Zhaga D4i is selectable in Fagerhult Configure. NEMA socket on request.
CLO (Constant Light Ouput) entails that the luminaire provides the same amount of light for the duration of its specified working life.
Media

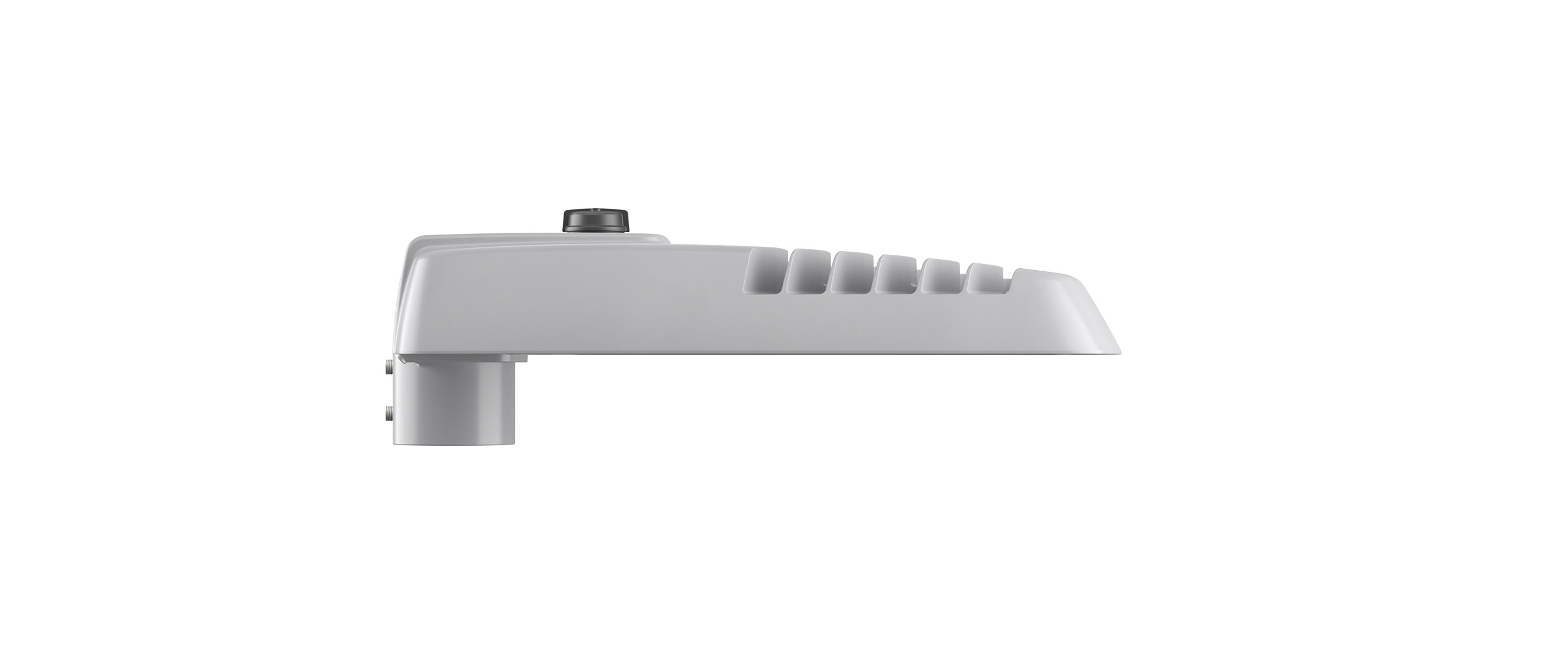

Evolume can be equipped with Zhaga, with various options available in Fagerhult Configure.

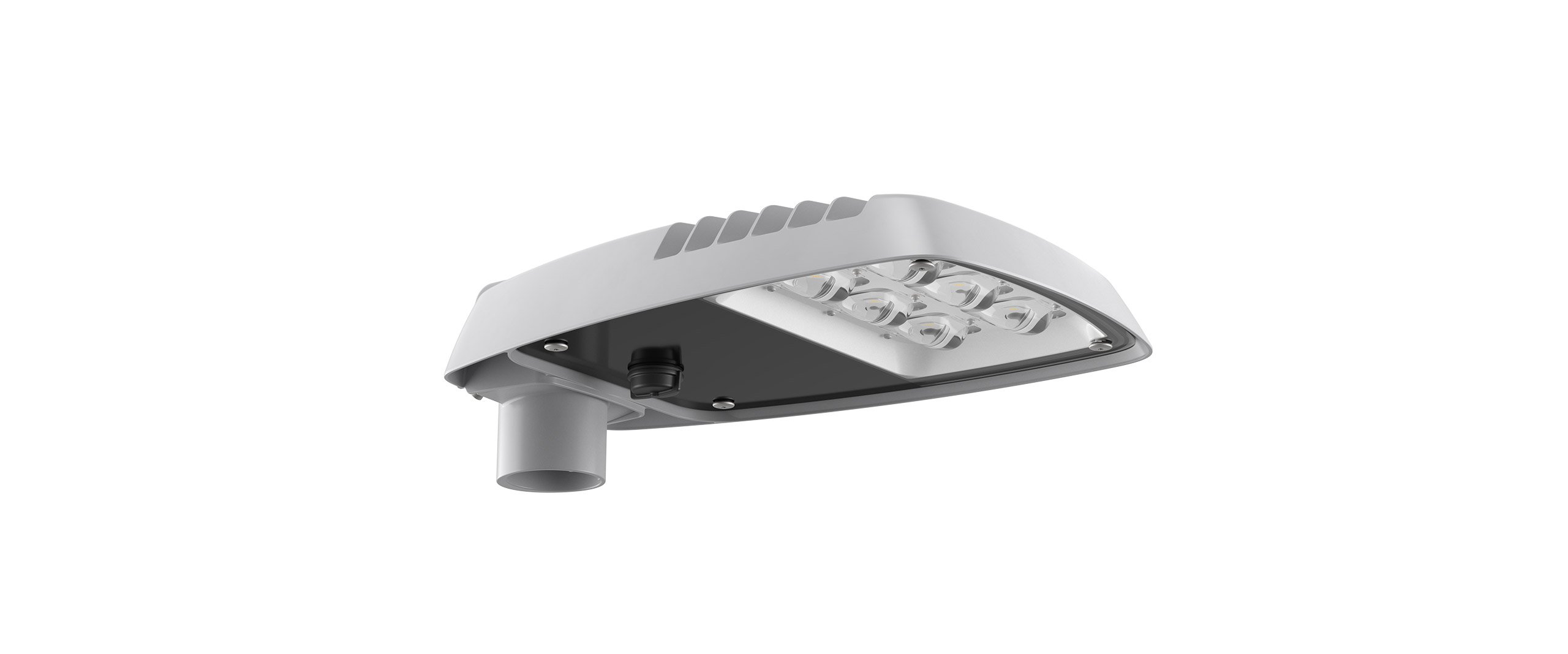

Evolume can be equipped with Zhaga, with various options available in Fagerhult Configure.

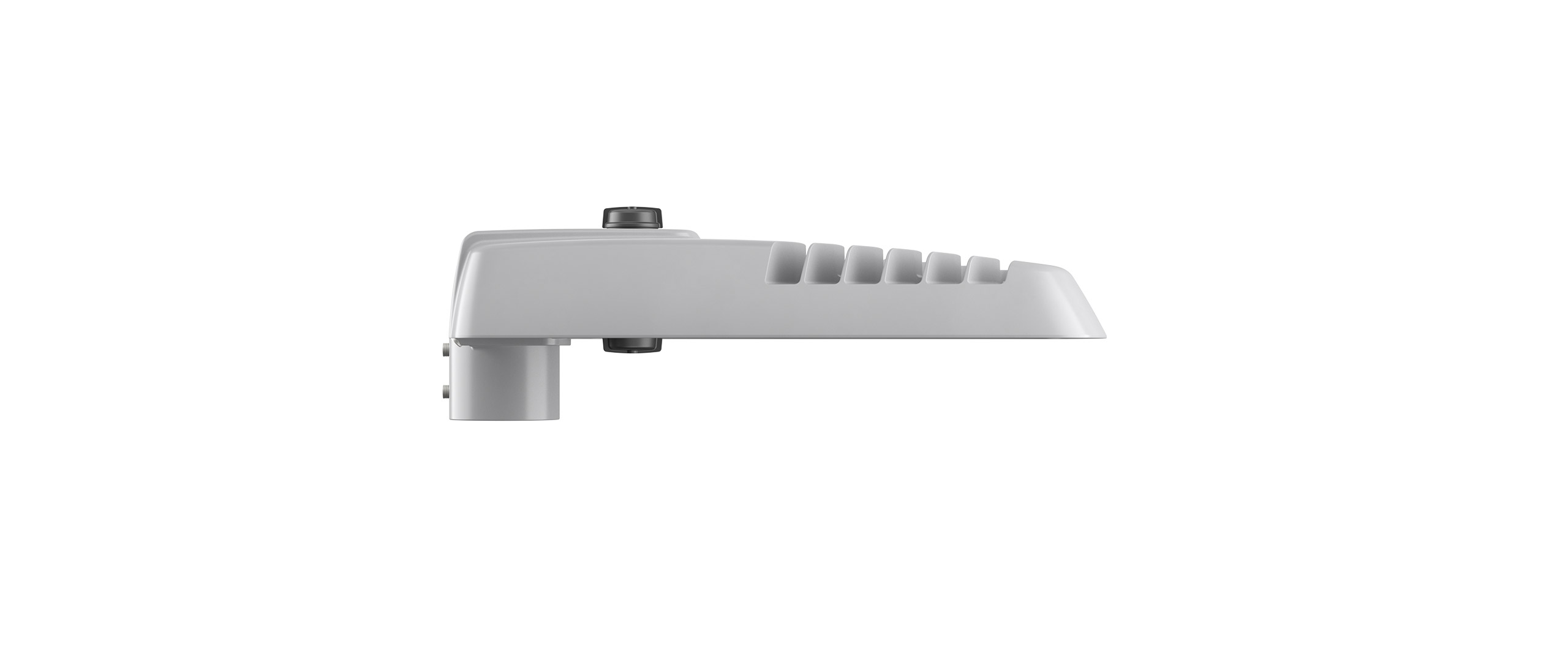

Evolume can be equipped with Zhaga, with various options available in Fagerhult Configure.
Evolume
Good road and street lighting contribute, among other things, to increased traffic safety, a perceived safer environment and the creation of an attractive and pleasant atmosphere – even outdoors. Fagerhult has taken this into...
More about the family EvolumeOther products
Document
Customise with Fagerhult Configure
Adapt and optimise the luminaire in Fagerhult’s configurator. You can easily select the CRI, colour temperature, optics, luminous flux, controls, various connection options, and more. All your selections are saved to a product data sheet which you can download along with unique light data files.
- Adapt and optimise the luminaire
- Download unique data sheet and light data files
- To order, contact your sales representative
Specification
Loading...
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |
|
Double post-top bracket for Evolume | Double post-top bracket for Ø 76 mm post top. Alu-grey. | 303598 |
|
|
Double post-top bracket for Evolume | Double post-top bracket for Ø 60 mm post top. Alu-grey. | 303597 |
|
Bracket for Evolume | Bracket for Ø 76 mm post top. Alu-grey. | 303596 |
|
Spigot for Evolume 1 | Spigot to 303596 for installation on Ø 48 mm post arm. | 303599 |
|
Spigot for Evolume 1 | Spigot to 303595 for installation on Ø 48 mm post arm. | 303594 |
|
Wall bracket | Wall bracket Ø 60 mm, anthracite grey | 303518 |
|
Wall bracket | Wall bracket Ø 60 mm, galvanised | 303419 |
|
|
Wall bracket | Wall bracket arm Ø 60, black (RAL 9005 G70). | 303678-224 |
|
|
Wall bracket | Wall bracket arm Ø 60, black (RAL 9005 texture). | 303678-230 |
|
Wall bracket | Wall bracket arm Ø 60, alu-grey (RAL 9006 G70). | 303678-235 |
|
Wall bracket | Wall bracket arm Ø 60, anthracite grey (Gris 900 Sablé). | 303678-329 |
|
|
Wall bracket | Wall bracket arm Ø 60, traffic grey (RAL 7042 G70). | 303678-548 |
|
|
Wall bracket | Wall bracket arm Ø 60, graphite grey (RAL 7024 G70). | 303678-549 |
|
|
Wall bracket | Wall bracket arm Ø 60, green (RAL 6009 G70). | 303678-552 |
|
Citygrid dongle | Citygrid Dongle is the commissioning tool that in combination with the Citygrid Configuration app, enables the configuration of a Citygrid installation. | 86490 |
|
Citygrid Zhaga with sensor | Citygrid Zhaga with sensor is an all-in-one device that instantly provides a luminaire with smart and motion-controlled operation. | 86491 |
|
Citygrid On Pole | The Citygrid On Pole unit enables all luminaires to be integrated into a Citygrid network. The unit is mounted on a pole and connects to the luminaire via cabling behind the pole cover plate. | 86492 |
|
Citygrid Zhaga Controller | The Citygrid Zhaga Controller is the intelligent device that transforms a luminaire into a smart luminaire. | 86493 |
|
Citygrid sensor DALI Zhaga 40 | The Citygrid Dali sensor integrates seamlessly with outdoor luminaires, enabling true adaptive lighting control, in combination with the Citygrid Zhaga Controller. | 86494 |
|
Citygrid Gateway | Citygrid Gateway is the bridge between the luminaire's Citygrid controllers and the cloud, which enables data to be displayed on the Citygrid Dashboard. Comes with the Citygrid Gateway Cabinet Kit with 2-wire 1.5 m cable for mounting in electrical cabinets. | 86495 |
|
|
Citygrid On Pole mounting kit for gateway | Citygrid Gateway Pole Kit with 2-wire 8 m cable. Enables mounting on poles. | 86496 |
