Zkye 55 G2Pendant

Multiple mounting options

Zkye is a family of efficient, compact spotlights in a minimalist design for atmospheric lighting in shops and offices. Available with multiple colour temperatures and control options. The pendant is mounted with a ceiling cup.

108 lm/W Sensor available
Zkye 55 G2 pendant black
Black RAL 9005
White RAL 9016

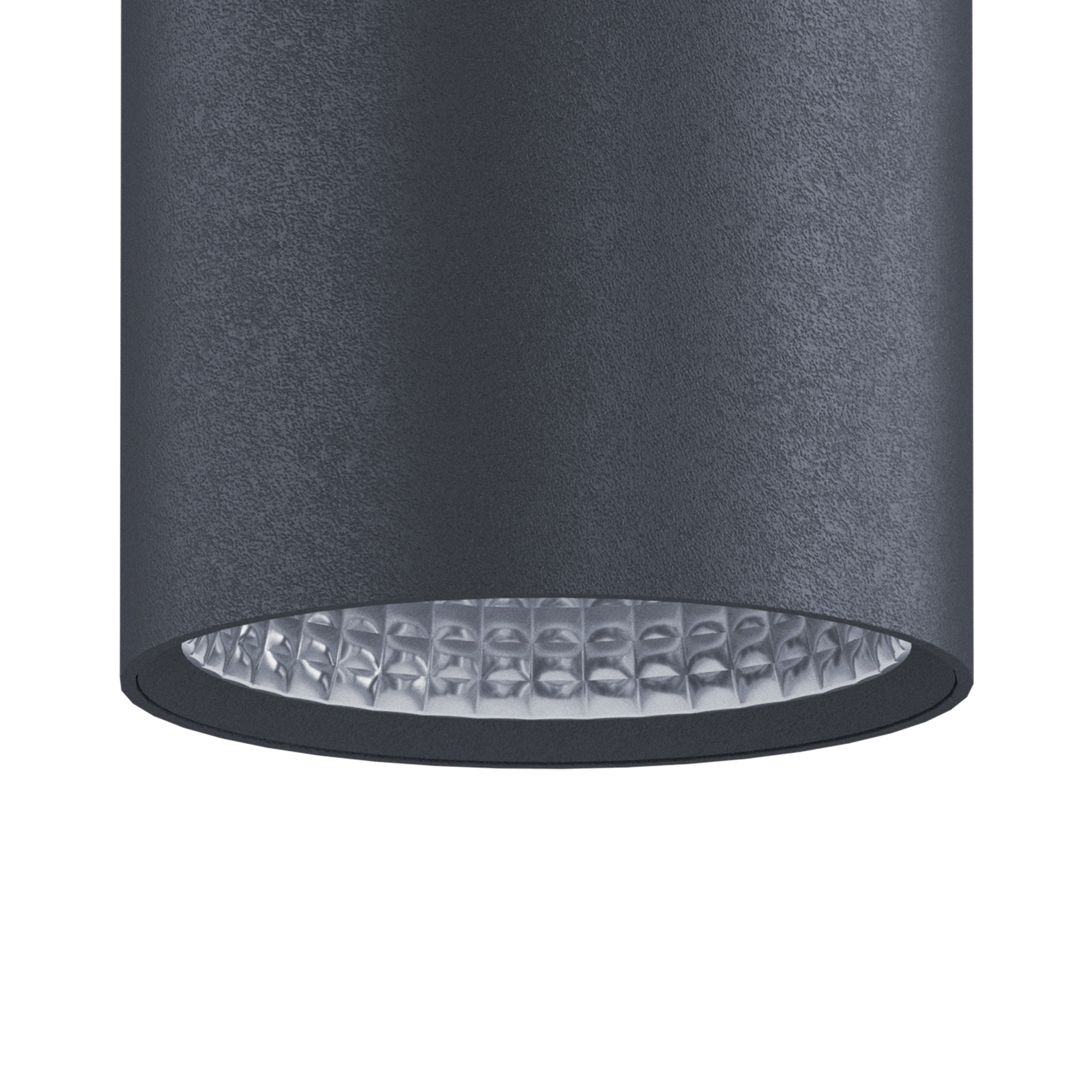

Zkye 55 G2 pendant black Zkye 55 G2 pendant reflector Zkye 55 G2 pendant

Zkye 55 G2Pendant

Multiple mounting options

Zkye is a family of efficient, compact spotlights in a minimalist design for atmospheric lighting in shops and offices. Available with multiple colour temperatures and control options. The pendant is mounted with a ceiling cup.

108 lm/W Sensor available

Installation

Supplied with ceiling cup. For detailed information, see the installation instructions.

Connection

Snap-in terminal block 5x2.5 mm² in ceiling cup. The luminaire is equipped with a 4 m fabric-covered mains cable, 4x0.75 mm².

Design

Luminaire housing made of aluminium. White (RAL 9016) or black (RAL 9005) structured lacquer. White or black ABS plastic ceiling cup.

Light Distribution

Narrow, medium or wide beam.

Light data

CCT, K:
2700 K, 3000 K, 1800-2700 (D2W)
CRI/Rf:
90
SDCM:
3
Lumen output:
963-1542 lm

Optics

Spun reflector.

108lm/W

Energy efficiency from the most efficient article.

Read more about our products lifecycle

Minimised design

The luminaire’s minimised design, with its high luminous efficacy, means that less material is used in manufacturing. This contributes to a low climate impact and more efficient use of resources compared to traditional, larger luminaires, without compromising on function or light quality.

Optimised packaging

Multiple products can be packaged together, reducing the amount of packaging material and cutting resource use and climate impact in both production and transportation. This makes the logistics more efficient and simplifies the handling and recycling of the packaging, as fewer types of material are used.

DALI/Phase pulse control

Combines digital DALI control with traditional phase control – a flexible solution that allows both precise dimming and easy installation.

e-Sense StagePIR sensor

Dynamic system for e.g. retail and showrooms, which uses Casambi technology to easily create and control various lighting scenarios via an app.

Read more

Trailing Edge

Also known as rear edge control, it provides quiet and stable dimming, particularly suitable for environments such as offices, residences and hotels.

On/Off

Simple control method where the lighting is turned on or off without dimming. For environments with basic lighting needs and clear control.

Articles

Showing 54 of 54 Articles
Art.no. System Wattage Lumen output CCT, K Colour Diameter, mm Dimensions, mm Light distribution Light control Miscellaneous Light data files Article PDF
65152-402 14 963 2700 White 55 246 Wide Beam, 35° DALI Dim to warm
65152-522 14 963 2700 White 55 246 Wide Beam, 35° e-Sense Stage integrated Dim to warm
65152-527 14 963 2700 White 55 246 Wide Beam, 35° Trailing Edge Dim to warm
65153-402 14 963 2700 Black 55 246 Wide Beam, 35° DALI Dim to warm
65153-522 14 963 2700 Black 55 246 Wide Beam, 35° e-Sense Stage integrated Dim to warm
65153-527 14 963 2700 Black 55 246 Wide Beam, 35° Trailing Edge Dim to warm
65190 14 1501 2700 White 55 246 Narrow Beam, 15° On/off
65190-402 14 1501 2700 White 55 246 Narrow Beam, 15° DALI
65190-522 14 1501 2700 White 55 246 Narrow Beam, 15° e-Sense Stage integrated
65190-527 14 1501 2700 White 55 246 Narrow Beam, 15° Trailing Edge
65191 14 1501 2700 Black 55 246 Narrow Beam, 15° On/off
65191-402 14 1501 2700 Black 55 246 Narrow Beam, 15° DALI
65191-522 14 1501 2700 Black 55 246 Narrow Beam, 15° e-Sense Stage integrated
65191-527 14 1501 2700 Black 55 246 Narrow Beam, 15° Trailing Edge
65192 14 1498 2700 White 55 246 Medium Beam, 24° On/off
65192-402 14 1498 2700 White 55 246 Medium Beam, 24° DALI
65192-522 14 1498 2700 White 55 246 Medium Beam, 24° e-Sense Stage integrated
65192-527 14 1498 2700 White 55 246 Medium Beam, 24° Trailing Edge
65193 14 1498 2700 Black 55 246 Medium Beam, 24° On/off
65193-402 14 1498 2700 Black 55 246 Medium Beam, 24° DALI
65193-522 14 1498 2700 Black 55 246 Medium Beam, 24° e-Sense Stage integrated
65193-527 14 1498 2700 Black 55 246 Medium Beam, 24° Trailing Edge
65194 14 1542 2700 White 55 246 Wide Beam, 37° On/off
65194-402 14 1542 2700 White 55 246 Wide Beam, 37° DALI
65194-522 14 1542 2700 White 55 246 Wide Beam, 37° e-Sense Stage integrated
65194-527 14 1542 2700 White 55 246 Wide Beam, 37° Trailing Edge
65195 14 1542 2700 Black 55 246 Wide Beam, 37° On/off
65195-402 14 1542 2700 Black 55 246 Wide Beam, 37° DALI
65195-522 14 1542 2700 Black 55 246 Wide Beam, 37° e-Sense Stage integrated
65195-527 14 1542 2700 Black 55 246 Wide Beam, 37° Trailing Edge
65196 14 1516 3000 BBBL White 55 246 Narrow Beam, 15° On/off
65196-402 14 1516 3000 BBBL White 55 246 Narrow Beam, 15° DALI
65196-522 14 1516 3000 BBBL White 55 246 Narrow Beam, 15° e-Sense Stage integrated
65196-527 14 1516 3000 BBBL White 55 246 Narrow Beam, 15° Trailing Edge
65197 14 1516 3000 BBBL Black 55 246 Narrow Beam, 15° On/off
65197-402 14 1516 3000 BBBL Black 55 246 Narrow Beam, 15° DALI
65197-522 14 1516 3000 BBBL Black 55 246 Narrow Beam, 15° e-Sense Stage integrated
65197-527 14 1516 3000 BBBL Black 55 246 Narrow Beam, 15° Trailing Edge
65198 14 1513 3000 BBBL White 55 246 Medium Beam, 24° On/off
65198-402 14 1513 3000 BBBL White 55 246 Medium Beam, 24° DALI
65198-522 14 1513 3000 BBBL White 55 246 Medium Beam, 24° e-Sense Stage integrated
65198-527 14 1513 3000 BBBL White 55 246 Medium Beam, 24° Trailing Edge
65199 14 1513 3000 BBBL Black 55 246 Medium Beam, 24° On/off
65199-402 14 1513 3000 BBBL Black 55 246 Medium Beam, 24° DALI
65199-522 14 1513 3000 BBBL Black 55 246 Medium Beam, 24° e-Sense Stage integrated
65199-527 14 1513 3000 BBBL Black 55 246 Medium Beam, 24° Trailing Edge
65200 14 1558 3000 BBBL White 55 246 Wide Beam, 37° On/off
65200-402 14 1558 3000 BBBL White 55 246 Wide Beam, 37° DALI
65200-522 14 1558 3000 BBBL White 55 246 Wide Beam, 37° e-Sense Stage integrated
65200-527 14 1558 3000 BBBL White 55 246 Wide Beam, 37° Trailing Edge
65201 14 1558 3000 BBBL Black 55 246 Wide Beam, 37° On/off
65201-402 14 1558 3000 BBBL Black 55 246 Wide Beam, 37° DALI
65201-522 14 1558 3000 BBBL Black 55 246 Wide Beam, 37° e-Sense Stage integrated
65201-527 14 1558 3000 BBBL Black 55 246 Wide Beam, 37° Trailing Edge
Showing 7 of 7 Accessories
Name Description Art.no. Article PDF
e-Sense Stage RTC Backup e-Sense Stage Stand-Alone Control Box RTC Backup 99816
e-Sense Stage Relay e-Sense Stage Stand-Alone Control Box Relay 99814
e-Sense Stage Trailing Edge e-Sense Stage Stand-Alone Control Box Trailing Edge 99813
e-Sense Stage 4CH PWM e-Sense Stage Stand-Alone Control Box 4 CH PWM 99815
e-Sense Stage Stand-alone DALI e-Sense Stage Stand-Alone Control Box DALI 99812
Xpress push button panel Xpress push button panel with long range, white. 82178
Xpress push button panel Xpress push button panel with long range, black. 82179
